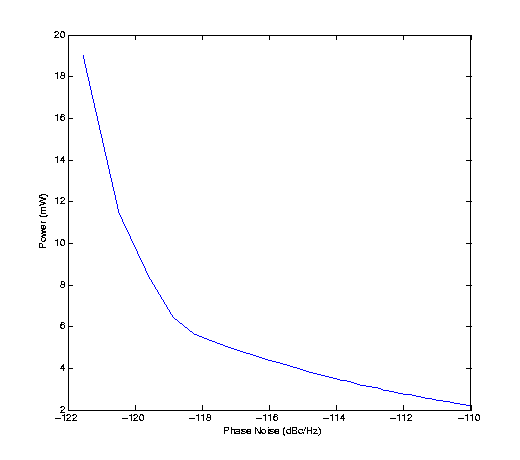

% LC oscillator design. % (a tradeoff figure between the power and phase noise is generated) % % This is an example taken directly from the paper: % % Geometric Programming and its Applications to EDA Problems % (DATE Tutorial 2005) by Boyd, Kim, and Mohan. % (see pages 102-113) % % Designs an LC oscillator consisting of a loop inductor, varactors % for fine tuning, binary weighted switching capacitors for coarse % tuning, cross coupled NMOS transistors, and tail current source. % The optimal LC oscillator design iwith minimum power consumption, % and limits on phase noise, area, etc... can be formulated as a GP: % % minimize P % s.t. N <= Nmax, A <= Amax, l >= lmin, etc. % % where optimization variables are loop inductor dimensions D,W, % size of varactor Vc, size of switching caps Csw, width and length % of transistors Wnmos, Lnmos, bias current Ibias, etc. % % Original code by S. Mohan. % Almir Mutapcic 02/03/06 %******************************************************************** % problem data %******************************************************************** Vdd = 1.2; % voltage CL = 0.2e-12; % load capcitance F = 5e9; % operating frequency in Hz omega = 2*pi*F; % operating freq. in radians PNSpec = 0.7e-11; % phase noise specs FOff = 6e5; % offset frequency for phase noise calculation LoopGainSpec = 2.0; % loop gain spec Vbias = 0.2; % non ideality of current mirror % tuning specs T = 0.1; % +/- tuning range as a normalized value CvarRatio = 3; % maximum to minimum value of CVar CswBits = 3; CswSegs = 2^(CswBits); CvarCswLSBOverlap = 2; %******************************************************************** % optimization of LC oscillator %******************************************************************** % optimization variables gpvar D; % diameter of loop inductor gpvar W; % width of loop inductor gpvar SRF; % self resonance frequency gpvar l; % length of CMOS transistor gpvar w; % width of CMOS transistor gpvar I; % maximum current through CMOS transistor gpvar VOsc; % differential voltage amplitude gpvar CT; % total capacitance of oscillator gpvar Csw; % maximum switching capacitance gpvar Cvar; % minimum variable capacitance gpvar IBias; % bias current gpvar CMaxFreq; % capacitor max frequency %******************************************************************** % loop inductor definitions and constraints %******************************************************************** SRFSpec = 3*F; omegaSRF = 2*pi*SRF; % inductance L = 2.1e-06*D^(1.28)*(W)^(-0.25)*(F)^(-0.01); % series resistance R = 0.1*D/W+3e-6*D*W^(-0.84)*F^(0.5)+5e-9*D*W^(-0.76)*F^(0.75)+0.02*D*W*F; % effective capacitance C = 1e-11*D+5e-6*D*W; % area, tank conductance, and inverse quality factor Area = (D+W)^2; G = R/(omega*L)^2; invQ = R/(omega*L); loop_constr = [ Area <= 0.25e-6; W <= 30e-6; 5e-6 <= W; 10*W <= D; D <= 100*W; SRFSpec <= SRF; omegaSRF^2*L*C <= 1 ]; %******************************************************************** % transistor definitions and constraints %******************************************************************** GM = 6e-3*(w/l)^0.6*(I/2)^(0.4); GD = 4e-10*(w/l)^0.4*(I/2)^(0.6)*1/l; Vgs = 0.34+1e-8/l+800*(I*l/(2*w))^0.7; Cgs = 1e-2*w*l; Cgd = 1e-9*w; Cdb = 1e-9*w; transistor_constr = [ 2e-6 <= w; 0.13e-6 <= l; l <= 1e-6 ]; %******************************************************************** % overall LC oscillator definitions and constraints %******************************************************************** % power power = Vdd*IBias; invVOsc = (G+GD)/IBias; % phase noise kT4 = 4*1.38e-23*300; kT4G = 2*kT4; LoopCurrentNoise = kT4*G; TransistorCurrentNoise = 0.5*kT4G*GM; PN = 1/(160*(FOff*VOsc*CT)^2)*(LoopCurrentNoise+TransistorCurrentNoise); % capacitance Cfix = C+0.5*(CL+Cgs+Cdb+4*Cgd); % fixed capacitance CDiffMaxFreq = Cfix+0.5*Cvar; invLoopGain=(G+0.5*GD)/(0.5*GM); % collect all of the LC oscillator constraints constr = [ PN <= PNSpec; loop_constr; transistor_constr; omega^2*L*CT == 1; omega^2*(1+T)^2*L*CMaxFreq == 1; 4*T/((1-T^2)^2)*CT <= Csw*(1+CvarCswLSBOverlap/CswSegs); Csw*CvarCswLSBOverlap/CswSegs <= 0.5*Cvar*(CvarRatio-1); CDiffMaxFreq <= CMaxFreq; VOsc+2*Vbias <= 2*Vdd; VOsc*invVOsc <= 1; invLoopGain*LoopGainSpec <= 1; % loop gain spec Vbias+Vgs+IBias/2*R/2 <= Vdd; % bias constraint spec I == IBias ]; %******************************************************************** % solve the problem and generate the tradeoff curve %******************************************************************** % set the quiet flag (no solver reporting) global QUIET; QUIET = 1; powers = []; for T = 0.15 % can also vary tuning T = 0.05:0.05:0.2 for PNSpec=0.7e-12:0.2e-12:1e-11 constr(1) = PN <= PNSpec; [min_power solution status] = gpsolve(power,constr); powers = [powers min_power]; end end % enable solver reporting again global QUIET; QUIET = 0; % plot the tradeoff curve PNSpec = [0.7e-12:0.2e-12:1e-11]; plot(10*log10(PNSpec),powers/1e-3); xlabel('Phase Noise (dBc/Hz)') ylabel('Power (mW)')

Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved.
