```% Box volume maximization example.
% (a figure is generated if the tradeoff flag is turned on)
%
% This is an example taken directly from the paper:
%
%   A Tutorial on Geometric Programming (see pages 8 and 13)
%   by Boyd, Kim, Vandenberghe, and Hassibi.
%
% Maximizes volume of a box-shaped structure which has constraints
% on its total wall area, its total floor area, and which has lower
% and upper bounds on the aspect ratios. This leads to a GP:
%
%   maximize   h*w*d
%       s.t.   2(h*w + h*d) <= Awall, w*d <= Afloor
%              alpha <= h/w <= beta
%              gamma <= d/w <= delta
%
% where variables are the box height h, width w, and depth d.
%
% Almir Mutapcic 02/01/2006
clear all; close all;

% problem constants
Awall  = 10000; Afloor = 1000;
alpha = 0.5; beta = 2; gamma = 0.5; delta = 2;

% GP variables
gpvar h w d

% objective function is the box volume
volume = h*w*d;

% set of constraints expressed as an array
constr = [ 2*(h*w + h*d) <= Awall; w*d <= Afloor;
alpha <= h/w; h/w <= beta;
gamma <= d/w; d/w <= delta;];

% solve the given GP problem
[max_volume solution status] = gpsolve(volume, constr, 'max');
assign(solution);

% display results
fprintf(1,'\nMaximum volume is %2.2f.\n', max_volume)
fprintf(1,['Optimal solution is height h = %3.4f, width w = %3.4f, '...
'depth d = %3.4f.\n\n'], h, w, d);

%*********************************************************************
%*********************************************************************

% set the quiet flag (no solver reporting)
global QUIET; QUIET = 1;

% reintroduce the optimization variables
gpvar h w d

% varying parameters for an optimal trade-off curve
N = 10;
Aflr = logspace(1,3,N);
Awall = [100 1000 10000];
opt_volumes = zeros(length(Awall),N);

% setup various GP problems with varying parameters
for k = 1:length(Awall)
for n = 1:N
% change constraints with varying parameters
constr(1) = 2*h*w + 2*h*d <= Awall(k);
constr(2) = w*d <= Aflr(n);

% solve the GP problem and compute the optimal volume
[max_volume solution status] = gpsolve(volume, constr, 'max');
opt_volumes(k,n) = max_volume;
end
end

% enable solver reporting again
global QUIET; QUIET = 0;

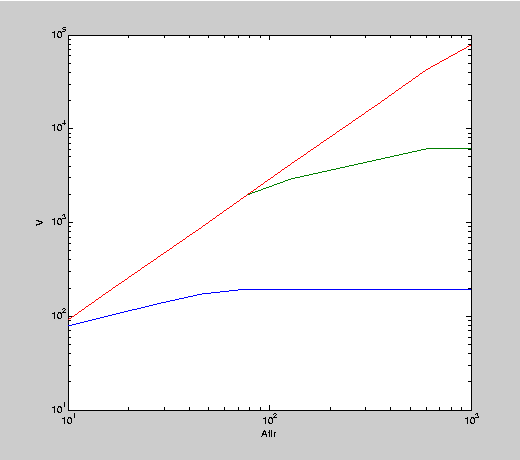

loglog(Aflr,opt_volumes(1,:), Aflr,opt_volumes(2,:), Aflr,opt_volumes(3,:));
xlabel('Aflr'); ylabel('V');

end
```
```
Iteration     primal obj.         gap        dual residual     previous step.

1         1.00000e+00       1.20000e+01       2.73e+00               Inf
2         1.13450e+00       5.09520e+00       3.18e-03       9.65862e-01
3         7.84658e-01       4.08972e+00       1.25e-03       3.74018e-01
4         4.86635e-01       3.25002e+00       3.24e-04       4.90589e-01
5         2.84603e-01       2.69975e+00       4.39e-05       6.31798e-01
6        -2.39995e-01       1.30243e+00       6.13e-13       1.00000e+00

Iteration     primal obj.         gap        dual residual     previous step.

1         2.66126e+02       1.20000e+01       2.98e+00               Inf
2         5.79616e+01       9.95483e+00       2.92e+00       9.58011e-03
3         2.03729e+01       9.65217e+00       2.88e+00       7.37105e-03
4         2.25731e+00       9.39954e+00       2.81e+00       1.18031e-02
5        -1.01030e+01       8.91928e+00       2.64e+00       3.12500e-02
6        -5.82528e+00       9.46552e+00       6.60e-01       5.00000e-01
7        -9.57242e+00       6.85383e+00       1.65e-01       5.00000e-01
8        -1.00194e+01       5.89507e+00       6.05e-06       1.00000e+00
9        -1.04901e+01       2.94793e+00       8.35e-07       1.00000e+00
10        -1.08661e+01       1.47474e+00       6.53e-07       1.00000e+00
11        -1.10901e+01       7.37986e-01       1.67e-06       1.00000e+00
12        -1.11902e+01       3.69166e-01       4.82e-06       1.00000e+00
13        -1.12187e+01       1.84575e-01       1.35e-07       1.00000e+00
14        -1.12350e+01       9.23682e-02       7.62e-07       1.00000e+00
15        -1.12461e+01       4.62892e-02       1.05e-07       1.00000e+00
16        -1.12517e+01       2.31810e-02       1.04e-08       1.00000e+00
17        -1.12546e+01       1.16008e-02       7.80e-10       1.00000e+00
18        -1.12561e+01       5.80299e-03       5.12e-11       1.00000e+00
19        -1.12568e+01       2.90215e-03       3.23e-12       1.00000e+00
20        -1.12571e+01       1.45124e-03       2.03e-13       1.00000e+00
21        -1.12573e+01       7.25658e-04       1.27e-14       1.00000e+00
22        -1.12574e+01       3.62839e-04       7.94e-16       1.00000e+00
23        -1.12575e+01       1.81422e-04       4.96e-17       1.00000e+00
24        -1.12575e+01       9.07117e-05       3.10e-18       1.00000e+00
25        -1.12575e+01       4.53560e-05       1.94e-19       1.00000e+00
26        -1.12575e+01       2.26780e-05       1.21e-20       1.00000e+00
27        -1.12575e+01       1.13390e-05       7.58e-22       1.00000e+00
28        -1.12575e+01       5.66952e-06       4.74e-23       1.00000e+00
29        -1.12575e+01       2.83476e-06       2.96e-24       1.00000e+00
30        -1.12575e+01       1.41738e-06       1.85e-25       1.00000e+00
31        -1.12575e+01       7.08690e-07       1.15e-26       1.00000e+00
32        -1.12575e+01       3.54345e-07       7.35e-28       1.00000e+00
33        -1.12575e+01       1.77172e-07       5.39e-29       1.00000e+00
34        -1.12575e+01       8.85862e-08       2.55e-30       1.00000e+00
35        -1.12575e+01       4.42931e-08       6.98e-31       1.00000e+00
36        -1.12575e+01       2.21466e-08       2.16e-31       1.00000e+00
37        -1.12575e+01       1.10733e-08       2.75e-31       1.00000e+00
38        -1.12575e+01       5.53664e-09       1.32e-31       1.00000e+00
Solved
Problem succesfully solved.

Maximum volume is 77459.67.
Optimal solution is height h = 77.4597, width w = 38.7298, depth d = 25.8199.

Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
Problem succesfully solved.
```
