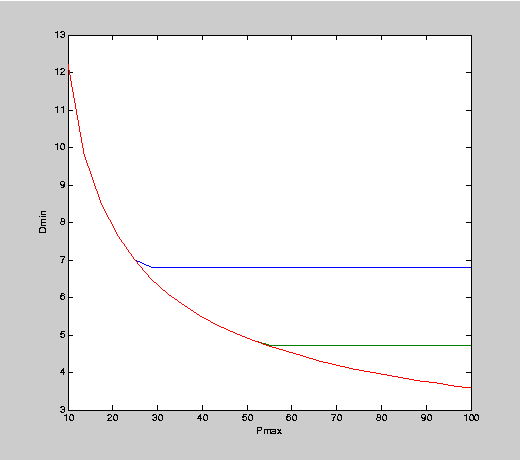

% Digital circuit sizing (a simple, hard-coded example). % (a figure is generated if the tradeoff flag is turned on) % % This is an example taken directly from the paper: % % A Tutorial on Geometric Programming (see pages 25-29) % by Boyd, Kim, Vandenberghe, and Hassibi. % % Solves the problem of choosing gate scale factors x_i to give % minimum ckt delay, subject to limits on the total area and power. % % minimize D % s.t. P <= Pmax, A <= Amax % x >= 1 % % where variables are scale factors x. % % This code is specific to the digital circuit shown in figure 4 % (page 28) of GP tutorial paper. All the constraints and % the worst-case delay expression are hard-coded for this % particular circuit. % % A more general code with more precise models for digital cicuit % sizing is also available as part of the ggplab examples library. % % Almir Mutapcic 02/01/2006 clear all; close all; PLOT_TRADEOFF = 1; % to disable tradeoff plot, set PLOT_TRADEOFF = 0 % number of cells m = 7; % problem constants f = [1 0.8 1 0.7 0.7 0.5 0.5]'; e = [1 2 1 1.5 1.5 1 2]'; Cout6 = 10; Cout7 = 10; a = ones(m,1); alpha = ones(m,1); beta = ones(m,1); gamma = ones(m,1); % maximum area and power specification Amax = 25; Pmax = 50; % optimization variables gpvar x(m) % scale factors % input capacitance is an affine function of sizes cin = alpha + beta.*x; % load capacitance of a gate is the sum of its fan-out c_in's cload(1) = cin(4); cload(2) = cin(4) + cin(5); cload(3) = cin(5) + cin(7); cload(4) = cin(6) + cin(7); cload(5) = cin(7); % output gates have their load capacitances cload(6) = Cout6; cload(7) = Cout7; % gate delay is the product of its driving res. R = gamma./x and cload d = (cload').*gamma./x; power = (f.*e)'*x; % total power area = a'*x; % total area % constraints constr_x = ones(m,1) <= x; % all sizes greater than 1 (normalized) % evaluate delay over all paths in the given circuit (there are 7 paths) path_delays = [ ... d(1) + d(4) + d(6); % delay of path 1 d(1) + d(4) + d(7); % delay of path 2, etc... d(2) + d(4) + d(6); d(2) + d(4) + d(7); d(2) + d(5) + d(7); d(3) + d(5) + d(6); d(3) + d(7) ]; % objective is the worst-case delay circuit_delay = max(path_delays); % collect all the constraints constr = [power <= Pmax; area <= Amax; constr_x]; % formulate the GP problem and solve it [obj_value, solution, status] = gpsolve(circuit_delay, constr); assign(solution); fprintf(1,'\nOptimal circuit delay for Pmax = %d and Amax = %d is %3.4f.\n', ... Pmax, Amax, obj_value) disp('Optimal scale factors are: ') x %******************************************************************** % tradeoff curve code %******************************************************************** if( PLOT_TRADEOFF ) % varying parameters for an optimal trade-off curve N = 25; Pmax = linspace(10,100,N); Amax = [25 50 100]; min_delay = zeros(length(Amax),N); % set the quiet flag (no solver reporting) global QUIET; QUIET = 1; for k = 1:length(Amax) for n = 1:N % add constraints that have varying parameters constr(1) = power <= Pmax(n); constr(2) = area <= Amax(k); % solve the GP problem and compute the optimal volume [obj_value, solution, status] = gpsolve(circuit_delay, constr); min_delay(k,n) = obj_value; end end % enable solver reporting again global QUIET; QUIET = 0; % plot the tradeoff curve plot(Pmax,min_delay(1,:), Pmax,min_delay(2,:), Pmax,min_delay(3,:)); xlabel('Pmax'); ylabel('Dmin'); end % end tradeoff curve code

Iteration primal obj. gap dual residual previous step. 1 3.89037e+00 3.20000e+01 1.07e+02 Inf 2 3.47240e+00 1.32459e+01 3.10e-01 9.52513e-01 3 1.85461e+00 9.31800e+00 7.64e-02 5.09750e-01 4 1.22655e+00 6.88966e+00 2.15e-02 4.73957e-01 5 8.60617e-01 5.18674e+00 3.42e-03 6.03053e-01 6 4.04436e-01 3.55712e+00 6.32e-04 5.64136e-01 7 -1.66117e-02 2.08420e+00 4.59e-05 7.20804e-01 Iteration primal obj. gap dual residual previous step. 1 4.76437e+01 3.20000e+01 7.63e-01 Inf 2 1.38223e+01 2.64314e+01 5.85e-01 1.24588e-01 3 5.76117e+00 2.23269e+01 3.29e-01 2.50000e-01 4 5.17905e+00 1.56792e+01 3.02e-04 1.00000e+00 5 3.69433e+00 7.84091e+00 3.18e-04 1.00000e+00 6 2.81300e+00 3.92205e+00 1.66e-04 1.00000e+00 7 2.35935e+00 1.96290e+00 5.99e-05 1.00000e+00 8 2.12727e+00 9.82837e-01 1.30e-05 1.00000e+00 9 2.01360e+00 4.91886e-01 1.64e-06 1.00000e+00 10 1.96179e+00 2.46028e-01 1.40e-07 1.00000e+00 11 1.93877e+00 1.23196e-01 6.80e-08 1.00000e+00 12 1.92771e+00 6.18340e-02 8.84e-08 1.00000e+00 13 1.92225e+00 3.10914e-02 4.45e-08 1.00000e+00 14 1.91955e+00 1.56506e-02 1.56e-08 1.00000e+00 15 1.91821e+00 7.88274e-03 4.60e-09 1.00000e+00 16 1.91755e+00 3.97081e-03 1.19e-09 1.00000e+00 17 1.91722e+00 1.99948e-03 2.68e-10 1.00000e+00 18 1.91705e+00 1.00589e-03 4.96e-11 1.00000e+00 19 1.91696e+00 5.05378e-04 7.21e-12 1.00000e+00 20 1.91691e+00 2.53560e-04 8.23e-13 1.00000e+00 21 1.91689e+00 1.27057e-04 7.56e-14 1.00000e+00 22 1.91688e+00 6.36062e-05 5.71e-15 1.00000e+00 23 1.91687e+00 3.18233e-05 3.80e-16 1.00000e+00 24 1.91687e+00 1.59168e-05 2.42e-17 1.00000e+00 25 1.91687e+00 7.95966e-06 1.52e-18 1.00000e+00 26 1.91687e+00 3.98015e-06 9.50e-20 1.00000e+00 27 1.91687e+00 1.99015e-06 5.95e-21 1.00000e+00 28 1.91687e+00 9.95097e-07 3.72e-22 1.00000e+00 29 1.91687e+00 4.97553e-07 2.32e-23 1.00000e+00 30 1.91687e+00 2.48778e-07 1.45e-24 1.00000e+00 31 1.91687e+00 1.24389e-07 9.09e-26 1.00000e+00 32 1.91687e+00 6.21947e-08 5.72e-27 1.00000e+00 33 1.91687e+00 3.10974e-08 3.63e-28 1.00000e+00 34 1.91687e+00 1.55487e-08 1.93e-29 1.00000e+00 35 1.91687e+00 7.77435e-09 3.86e-30 1.00000e+00 Solved Problem succesfully solved. Optimal circuit delay for Pmax = 50 and Amax = 25 is 6.7996. Optimal scale factors are: x = 2.9336 4.7136 4.1289 4.2254 2.1706 3.4140 3.4140 Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved. Problem succesfully solved.
