Today: list memory, 3x range() forms, while/break logic

Affirm main() Command Line Args Example

Whoops! Forgot to mention this example in Mon lecture, but here it is. For the homework, just need to understand Form-1 or Form-2 (solutions below). You can download the .zip to run it yourself, or just look at the solution pattern below.

affirm.zip Example of main() command line args

Affirm Problem Statement

The affirm.py program takes 3 command line forms

• Form-1. python3 affirm.py -affirm Bart
• The args list is a list of the strings typed after the py
• So for the above args is the list ['-affirm', 'Bart']
• Prints out like "Looking good Bart"
• Code for that case is provided

• Form-2. python3 affirm.py -hello Bart
• Add an if-statement to print out "Hello Bart" for this case
• Form-3. python3 affirm.py -n 100 Bart
• Add code to print 'Bart' 100 times for this case

Affirm Example Code

def main():
    """
    This program takes 3 command line arg forms:

    1.
    -affirm *name*

    2.
    -hello *name*

    3.
    -n *number* *name*
    """

    # standard - load "args" list with cmd-line-args
    args = sys.argv[1:]

    # args is a list of the command line argument strings that follow
    # the program.py file.
    # So if the command is: python3 affirm.py aaa bbb ccc
    # The args list  will be:
    #   args == ['aaa', 'bbb', 'ccc']
    # The args are all strings, whatever was typed in the terminal.

    # There are 3 command-line-argument patterns below.
    # The code is complete for pattern-1, with the others TBD.

    # 1. This example if-statement recognizes the arg pattern:
    #   python3 affirm.py -affirm Bart
    #   e.g. args[0] is '-affirm' and args[1] is 'Bart'
    # Print out: Looking good Bart
    # 'Looking good' is selected from the random AFFIRMATIONS list
    if len(args) == 2 and args[0] == '-affirm':
        # Select random nice phrase
        affirmation = random.choice(AFIRMATIONS)
        print(affirmation, args[1])

    # 2 - Write an if-statement to recognize this arg pattern:
    #   python3 affirm.py -hello Lisa
    # Print out: Hello Lisa
    # Here 'Hello' is fixed, nothing random.
    pass


    # 3 - Write an if-statement to recognize this arg pattern:
    #   python3 affirm.py -n 100 Maggie
    # Print out 100 copies of 'Maggie' separated by spaces
    # Note: the command line arg is a string, convert to int
    pass

Affirm Solution Code

...
    # 2 - Write an if-statement to recognize this arg pattern:
    #   python3 affirm.py -hello Lisa
    # Print out: Hello Lisa
    # Here 'Hello' is fixed, nothing random.
    if len(args) == 2 and args[0] == '-hello':
        print('Hello', args[1])

    # 3 - Write an if-statement to recognize this arg pattern:
    #   python3 affirm.py -n 100 Maggie
    # Print out 100 copies of 'Maggie' separated by spaces
    # Note: the command line arg is a string, convert to int
    if len(args) == 3 and args[0] == '-n':
        # Note: command line values are always strings, so here
        # convert to int form for use in range()
        n = int(args[1])
        for i in range(n):
            # Print each copy of the name with space instead of \n after it.
            print(args[2], end=' ')
        # Print a single \n after the whole thing.
        print()

Recall: Variables

• Set variables with =
• x = y - x points to same thing as y
• "shallow"

See: Python Variables

List Memory Picture

>>> # Build up a list to have 3 string elements
>>> lst = []
>>> lst.append('yo')
>>> lst.append('yo')
>>> lst.append('ma')
>>> lst
['yo', 'yo', 'ma']

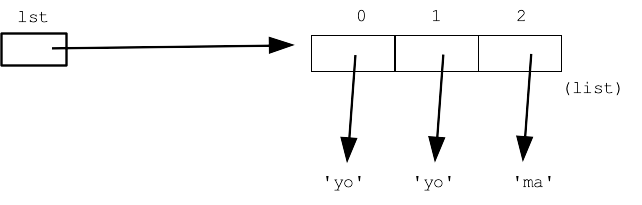

Here is the memory picture for this state. Each element in the list can hold anything. Here they each hold a pointer to a string. In this way, each is like a variable, and = can work on each one.

Assignment = is Shallow

What does the following line do?

>>> lst2 = lst

The assignment = does not duplicate or makes a copy of a data structure. Instead the = works in a shallow way, just setting the pointer in the left variable to point to the same thing as the right variable.

Here is a picture after the assignment

>>> lst[2]
'ma'
>>> lst2[2]
'ma'

Mutable List Example

• The size of a list and the elements it holds can be changed
  .append() is one example of this
• Each individual element, e.g. lst[2], is like a little variable
  It can hold a reference to a string, an int, .. anything
  It can be changed with an =
• The following code changes the list element at index 2:

>>> lst[2] = 'Donut'

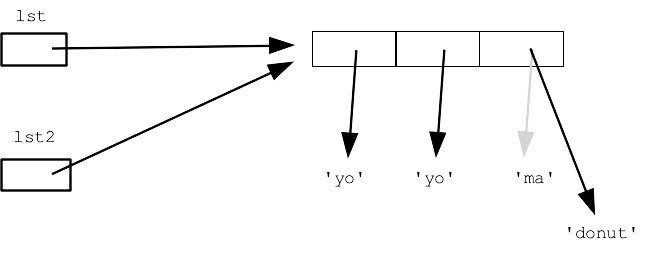

Here is the memory picture after that change:

Now if we look at the value of lst or lst2 .. they both show the changed list, since in fact there is just the one list and they are both pointing to it.

>>> lst
['yo', 'yo', 'donut']
>>> lst2
['yo', 'yo', 'donut']

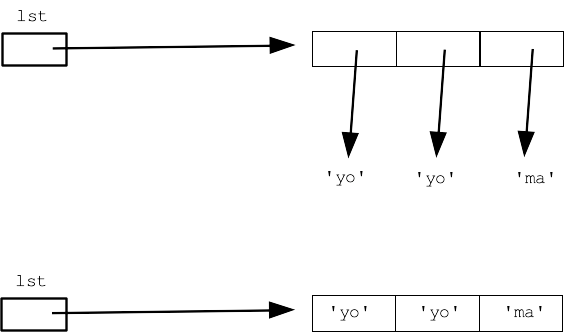

Don't Need To Draw The Arrows

• Key idea: each element in the list stores one value, string, int, whatever
• Don't really need to draw a separate arrow for each element, like the second version of lst below

Lists of Numbers

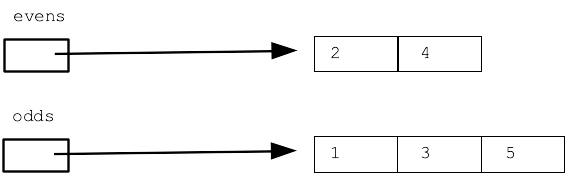

This code sets up 2 lists of numbers

>>> evens = [2, 4]
>>> odds = [1, 3, 5]

Outer: Lists of Lists

• A list can contain anything, including another list
• Here just using .append()
• outer.append(lst)

A list can be stored inside of an "outer" list. This code sets up the list outer: its first element is the "evens" list, its second element is the "odds" list.

>>> evens = [2, 4]
>>> odds = [1, 3, 5]
>>> outer = []
>>> outer.append(evens)
>>> outer.append(odds)
>>>
>>> outer
[[2, 4], [1, 3, 5]]
>>>
>>> outer[0]
[2, 4]
>>> outer[1]
[1, 3, 5]

Here is a memory picture of how outer is built.

range() function - 1 parameter

A classic way to "iterate" over numbers. All languages have some way to do this, and the Python range() functions are an easy and flexible way to do it.

• Python uses the range() function to produce/loop number series
• range(stop_num) # yields 0, 1, 2, .. stop_num-1
• range(10) # yields 0, 1, 2, ... 9
• "1 parameter" form
• 0 up to but not including the stop number
• Alternate: list(range(10))
  Construct a list holding all the range-numbers
• range(0) - no numbers at all

# standard for/i/range structure
for i in range(20):
    print(i)

range() function - 2 parameter

• range(start, stop) # this form = 2 parameters
• Like 1-parameter form, but set start number
• Always does +1 between numbers

range(5, 10) → [5, 6, 7, 8, 9]
range(5, 6) → [5]
range(5, 5) → []  # i.e. nothing
range(5, 4) → []  # i.e. nothing

range() function - 3 parameter

• range(start, stop, step) # this form = 3 parameters
• Begin with start number as usual
• Up to but not including stop number (as always)
• Proceed by 'step' amount

range(0, 10, 2) → [0, 2, 4, 6, 8]
range(200, 800, 100) → [200, 300, 400, 500, 600, 700]

• Use a negative step to go backwards, e.g. -1
• Does not include stop number, as usual
• With step greater than 1, may "pass" stop number to stop

range(5, 0, -1) -> [5, 4, 3, 2, 1]
range(10, 5, -2) -> [10, 8, 6]
range(10, 10, -2) -> []

In interpreter, try these with list(range(xxx)) form which makes a [ ... ] list of the numbers, making the exact range of numbers very clear:

>>> list(range(10, 5, -2))
[10, 8, 6]

Nested Loops

• A non-beginner coding technique
• Write code with nested loops
• Did this with y/x pixel loops
  But that was kind of the same every time
• Try more sophisticated examples with range() loops

3 Range-Loop Problems

1. sixes(n)

Given a non-negative int n, return a list of n multiples of 6 starting with 6 itself, e.g. n=3 returns [6, 12, 18].

• 1. sixes(n) (not nested)
• Given a non-negative int n,

• 1 loop
• 2 Strategies

2. triangle(n)

Given a non-negative int n. Create and return a list of lists like this: [[1], [1, 2], [1, 2, 3] .... [1, 2, 3, .. n]]. There will be n lists inside the outer list. Use nested range loops. One approach: write outer loop to set a "top" variable which varies the top number for each inner list.

Output for n=3. Use this to think about outer and inner loops:

[
 [1],
 [1, 2],
 [1. 2. 3],
]

• This is a nice, somewhat complicated data/logic/code problem
  Make a diagram, work out the logic
• 2 Nested loops, outer and inner
• Outer loop, one iteration per row
• Inner loop: creates one row
• Work out "top" number for each row
• Good news: nest-list problems have this stereotypical form

Solution

def triangle(n):
    outer = []
    # Outer loop, one iteration per inner list
    for top in range(1, n + 1):
        # Inner loop, create 1 inner list
        # 1..top
        inner = []
        for i in range(1, top + 1):
            inner.append(i)
        outer.append(inner)
    return outer

3. hundreds(n)

Extra problem for practice.

Consider the sequence 100, 200, 300, ... n*100. For each 'x00' multiple of 100 in that sequence, make a list of the 10 numbers leading up to that number, e.g. [91, 92, 93, 94, 95, 96, 97, 98, 99, 100]. Return a big list of all these lists as elements, first the list of 100, then 200, and so on. N = 2 yields [[91, 92, 93, 94, 95, 96, 97, 98, 99, 100], [191, 192, 193, 194, 195, 196, 197, 198, 199, 200]]. Use nested range loops.

While Loop Break Problems

1. Loop Break

• "break" exit the loop immediately
• Jumps to the line after the loop, as if it had finished normally
• 1. Write loop normally
• 2. Can use if-break inside to break out early
• All languages have this, typically called "break"
• Can write censored with break nicely
• What are the 2 ways to end up at the "return nums" line?

Censor problem: censored(n, censor): Given a non-negative int n. Return a list of the ints [1, 2, 3, ... n]. Except as soon as a number in the given censor list is seen, end the list without that number, so censored(10, [5, 4]) returns [1, 2, 3]. Use "break"

Solution

def censored(n, censor):
    nums = []
    for i in range(1, n + 1):
        if i in censor:  # Key: if-break
            break
        nums.append(i)
    return nums

Control i Within Range With = ? Nope!

• What if inside a loop, I want to control i
• e.g. set i to a big number to exit the for/range loop

def censored(n, censor):
    nums = []
    for i in range(1, n + 1):
        if i  in censor:
            i = n + 1  # let'd be done with this loop
        else:
            result.append(i)
    return nums

• No - does not work at all
• At top of loop, for/range sets i back to what it wants
  Overwrites any i = xxx you did in the loop

Aside: continue

• Much more rarely used option: continue
• This jumps to the top of the loop, does the next iteration
• So in effect, skip this iteration
• If censored() used this instead of break, it would skip over each censored number, but continue going through all the numbers
• We're never going to use this feature, so just FYI

while Equivalent of for/range

• for i in range(n) - great solution when we want that sequence
• Three parts: init, test, increment
• Can be more flexible if we write as a while
• Use range() for common cases
• Use while where need fine control of i (examples to follow)

i = 0         # 1. init
while i < n:  # 2. test
    # use i
    i += 1    # 3. increment, bottom of loop

3. while_double

double_char() written as a while (using a range() is eaier for this problem, so just demonstrating what while would look like)

def while_double(s):
    result = ''
    i = 0
    while i < len(s):
        result += s[i] + s[i]
        i += 1
    return result

4. all_lefts()

Given string s. Return a list of all the '[' strings in s. Use s.find() within a while loop to find all the '['.

Use search as index variable, marking current position of search within s.

In loop - how to find each '['? How to end the loop when there is no '['? Important at bottom of loop, advance variable for next iteration ("search" in this case)

Solution

def all_lefts(s):
    search = 0
    result = []
    while search < len(s):
        left = s.find('[', search)
        if left == -1:
            break
        result.append(s[left:left + 1])
        # Key: set up var at end of loop
        search = left + 1
    return result

5. all_brackets()

This pulls it all together, solving a realistic problem.

Given string s. Return a list of all the 'abc' strings for each '[abc]' substring within s. For each left bracket, find the right bracket that follows it. End the search if no left or right bracket is found. Use s.find() within a while loop.

Start with the all_brackets() code. Add code to find the right-bracket following each left bracket. As before: how to terminate the loop? Remember to advance search variable at bottom of loop.

Solution

def all_brackets(s):
    search = 0
    result = []
    while search < len(s):
        left = s.find('[', search)
        if left == -1:
            break
        # Your code here
        pass
        right = s.find(']', left + 1)
        if right == -1:
            break
        result.append(s[left + 1:right])
        # Key: set up var at end of loop
        search = right + 1
    return result
