Today - black box examples, boolean logic, string intro, Doctests

Recall: "Black Box" Function Model

Black-box model of a function: function runs with parameters as input, returns a value. All the complexity of its code is sealed inside. Calling it is relatively simple - provide parameters, get back an answer.

Strategic Story - Why Black Box?

For Divide and Conquer, want to be able to work on each function separately, one at a time. Need to keep the functions sealed off from each other for this to work - black box. We'll see how all this comes together later in the quarter.

"Cases" - Code Handles All Cases

Think of each input as a "case" the function must handle, return the correct output. To be correct, code needs to handle all the possible input cases. Hallmark of putting something on the computer: forces you to think through all the cases.

Boolean Values

For more detail, see guide Python Boolean

• "boolean" value in code - True or False
• if-test and while-test work with boolean inputs
• e.g. bit.front_clear() returns a boolean
• So we have if bit.front_clear():

Ways to Get a Boolean

• == operator to compare two things
  2 == 1 + 1 returns True
  Two equal signs
  Since single = is used for var assignment
• Compare greater-than / less-than
• < is less-than
• <= is less-or-equal to
• These work with ints, floats

Try this in the interpreter..

>>> n = 5   # assign to n to start
>>> n == 6
False
>>> n == 5
True
>>>
>>> n < 10
True
>>> n < 5  # < is strict
False
>>>
>>> n <= 5  # less-or-equal
True
>>>
>>> n > 0
True

Black Box Example Functions

(Trying some new tech here)

> "logic1" Black Box Functions

1. "Winnings1" Function

• Say we work for the CA lottery
• Writing a function for a game
• Rules: input is an int score 0..10 inclusive
• score 5 or more, winnings = score * 12
• score 4 or less, winnings = score * 10
• We could make a table showing output for each input
• Code needs to work for all cases, i.e. "general"
• Later: we'll see how to put in formal tests that the code is getting the right output for each input

score winnings
0      0
1      10
2      20
3      30
4      40
5      60  # 12x kicks in here
6      72
7      84
8      96
9      108
10     120

Winnings1 code

• This code works
• score parameter comes in
• if/logic to check for score >= 5
• return is used twice
• "pick off" of cases
• So past the first if.. what is true of score?
• We know score < 5

Solution

def winnings1(score):
    if score >= 5:
        return score * 12

    # Run gets here: we know score < 5
    return score * 10

if-return Pick-Off Strategy

• The function needs to handle all input cases
• If-logic detects one case .. returns the answer
• The return exits the function immediately with a return value
• Lines below have if-return logic for other cases
• Code is "picking off" the cases one by one
• As we get past if-checks .. input must be a remaining case
• Analogy: coin sorting machine
  coin rolls past holes, each a bit larger
  dime, penny, nickel, quarter
  a dime never makes it to the quarter-hole
  The dime is picked-off earlier
• Demo: bug change <= to <

None Is The Default Function Result

• If a function does not run a return, None is default function result
• Demo: comment out last "return ..." line
  See how None is the result for those cases
• Demo: replace all the code with just pass .. what is the result of calling the function now?
• If you see None in your output - maybe you forgot the return
• Or your if-logic for some case doesn't return

2. Winnings2 Example

Extra practice example.

Say there are 3 cases, have a series of if-return to get them. Need to think about the order. Need to put the == 10 case early.

Winnings2: The int score number in the range 0..10 inclusive. Bonus! if score is 10 exactly, winnings is score * 15. If score is between 4 and 9 inclusive, winnings is score * 12. if score is 3 or less, winnings is score * 10. Given int score, compute and return the winnings.

Solution

def winnings2(score):
    if score == 10:
        return score * 15

    if score >= 4:  # score <= 9 is implicit
        return score * 12

    # All score >= 4 cases have been picked off.
    # so score < 4 here.
    return score * 10

Boolean Operators: and or not

• An operator combines values, returning a new value
  e.g. + operator, 1 + 2 returns 3
• Boolean operators combine True False values
• Boolean operators: and or not
• Suppose here that xxx and yyy are boolean values
• xxx and yyy - if both sides are True, then it is True
• xxx or yyy - if either side or both sides are True, it is True
• not xxx = inverts True/False

>>> n      # Start n as 5
5
>>> n < 10
True
>>> n > 7
False
>>>
>>> n < 10 and n > 7  # Try and/or
False
>>> n < 10 or n > 7
True
>>>
>>> n = 8   # Change n to 8, try again
>>> n < 10 or n > 7
True
>>> n < 10 and n > 7
True
>>>
>>> n == 8
True
>>> n == 10
False
>>> n != 10  # not-equal
True

and Example

Suppose we have this code

if n > 0 and n < 10:
   # get here if test is True

Values of n where test is True: 1 5 9

Values of n where test is False: 10 12 -1

3. is_teen(n) Example

is_teen(n): Given an int n which is 0 or more. Return True if n is a "teenager", in the range 13..19 inclusive. Otherwise return False. Write a boolean test to pick off the teenager case.

Solution

def is_teen(n):
    # Use and to check
    if n >= 13 and n <= 19:
        return True
    return False
    # Future topic: possible to write this
    # as one-liner: return n >= 13 and n <= 19

4. Lottery Scratcher Example

An extra example for practice.

Lottery scratcher game: We have three icons called a, b, and c. Each is an int in the range 0..10 inclusive. If all three are the same, winnings is 100. Otherwise if 2 are the same, winnings is 50. Otherwise winnings is 0. Given a, b and c inputs, compute and return the winnings. Use and/or/== to make the tests.

Solution:

def scratcher(a, b, c):
    # 1. All 3 the same
    if a == b and b == c:
        return 100

    # 2. Pair the same (3 same picked off above)
    if a == b or b == c or a == c:
        return 50

    # 3. Run gets to here, nothing matched
    return 0

Strings

For more detail, see guide Python Strings

• A very widely used data type
• String is a sequence of "characters" or "chars"
• e.g. urls, paragraphs
• Introduce strings today, more detail later
• In Python code a string "literal" is written on one line within single quote marks ' (prefer)
• Double quote also works "
  'hello'
  "hello"

len() function

• Returns number of chars in string
• Works on other collections too
• Not noun.verb style

>>> len('Hello')
5
>>> len('x')
1
>>> len('')
0

Empty String ''

• The "empty" string is just the string with 0 chars
• Written like: '' or ""
• This is a valid string, its len is 0
• A common case to think about with string algorithms
• Does the code need to work on the empty string?
• Probably yes

Zero Based Indexing - Super Common

• Everything in computers uses this zero-based indexing scheme
• Pixels within an image used this, x/y vs. width/height
• Characters in strings are "indexed" from 0 vs. length
• Index number addresses each char in the string
• Foreshadow: we'll use index numbers, [ ], and len()...
  For many many linear type data arrangements
  But for today strings

String Square Bracket Index

• Use square bracket to access a char by index number
• Valid index numbers: 0..len-1
• Get out of bounds error for past-limit index number

>>> s = 'Python'
>>> s[0]
'P'
>>> s[1]
'y'
>>> s[4]
'o'
>>> s[5]
'n'
>>> s[6]
IndexError: string index out of range

String Immutable

• A string in memory is not editable
• "Immutable" is the official term
• e.g. square bracket cannot change a string

>>> s = 'Python'
>>> s[0]        # read ok
'P'
>>> s[0] = 'X'  # write not ok
TypeError: 'str' object does not support item assignment

String +

• Plus operator + combines 2 strings to make a new, bigger string
  aka "concatenate"
• Uses new memory to hold the result
• Does not change original string

>>> a = 'Hello'
>>> b = 'there'
>>> a + b
'Hellothere'
>>> a
'Hello'

String + Add At End Pattern

• Use + to add at the end of a string, yielding a new bigger string
• Use the following pattern to grow the string s:
  s = s + 'xxx'
• The += operator works here too
• The individual strings are still immutable
  We are constructing a new, bigger string with each step

>>> a = 'Hi'
>>> a = a + '!'
>>> a
'Hi!'
>>> a = a + '!'
>>> a
'Hi!!'
>>> a = a + '!'
>>> a
'Hi!!!'

for/i/range String Loop

• The canonical loop over index numbers
• For string 'Python' len 6
  Want index numbers 0, 1, 2, 3, 4, 5
• for i in range(len(s)):
• Use s[i] to access each char in the loop
• Standard to use the variable name i for this loop
• This is so common, it's idiomatic
• We'll see another way to do this later

# have string s
for i in range(len(s)):
    # access s[i] in here

String Example Functions

> "str2" String Functions

1. double_char

• Idiomatic loop look at every char
• Initialize result = '' variable before loop
• Update in loop: result = result + xxxx
• Return result at end
• Could use += shortcut
• Q: does it work on empty string input?

Solution code

def double_char(s):
    result = ''
    for i in range(len(s)):
        result = result + s[i] + s[i]
    return result

String Boolean Tests - True or False

String Testing == 'a' 'A'

We've used == already. 'a' and 'A' are different characters.

>>> s = 'red'
>>> s == 'red'   # two equal signs
True
>>> s == 'Red'   # must match exactly
False

String Testing - in

• The word in - test if a substring appears in a string
• Mnemonic: same word inside for-loop, like Python wants to introduce very few new words
• Chars must match exactly - upper/lower are considered different

>>> 'c' in 'abcd'
True
>>> 'bc' in 'abcd'
True
>>> 'bx' in 'abcd'
False
>>> 'A' in 'abcd'
False

String Character Class Tests

• String is made of characters
• Categorize characters into major classes:
• 1. Alphabetic - 'a' 'Z' .. used to make words
• 2. Digits - '0' '2' .. used to make numbers
• 3. Space - space, tab, newline - aka "whitespace"
• There are noun.verb tests for the above 3, returning boolean True or False
• For empty string return False (a weird edge case)
• All the other chars form a miscellaneous class - '$' '%' ';' ... any char not in the first 3 categories

s.isdigit() - True if all chars in s are digits '0' '1' .. '9'

s.isalpha() - True for alphabetic word char, i.e. a-z A-Z. Each unicode alphabet has its own definition of what's alphabetic, e.g. 'Ω' below is alphabetic.

s.isalnum() - alphanumeric, just combines isalpha() and isdigit()

s.isspace() - True for whitespace char, e.g. space, tab, newline

>>> 'a'.isalpha()
True
>>> 'abc'.isalpha()  # works for multiple chars too
True
>>> 'Z'.isalpha()
True
>>> '@'.isalpha()
False
>>> '9'.isdigit()
True
>>> ' '.isspace()
True

2. digits_only

• Given string s
• Return a string of its chars which are digits
• e.g. 'ab4xx2' returns '42'
• Use the standard range loop
• If logic inside the loop

Solution code

def digits_only(s):
    result = ''
    for i in range(len(s)):
        if s[i].isdigit():
            result += s[i]
    return result

if Variation: if / else

if test-expr:
  Lines-A
else:
  Lines-B

• See guide: Python-if
• Regular if - do the body lines, or do nothing
• if/else variant:
  Choose between 2 actions
  Always do one of them
• Run lines-A if test is True
• Run lines-B if test is False
• Style: use if/else to choose 1 of 2 actions
• Avoid using "else" if it is not needed
  The regular "if" we've seen is most common

3. str_dx

• Return string where every digit changes to 'd'
  And every other char changed to 'x'
• So 'ab42z' returns 'xxddx'
• Use if/else

Solution code

def str_dx(s):
    result = ''
    for i in range(len(s)):
        if s[i].isdigit():
            result += 'd'
        else:
            result += 'x'
    return result

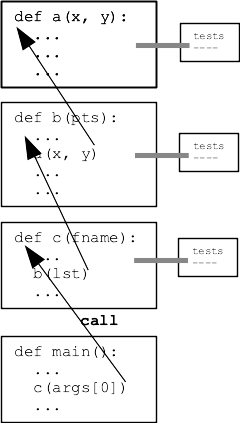

Big Picture - Program, Functions, Testing

• Big Picture
• Program Made of many functions
• Decomposition
• Best Practice:
  Test a function in isolation
  Then later functions can call it
• We did this with Bit sometimes
• Fits with Divide and Conquer strategy
• Fits with Black Box model of a function
  Inputs and Outputs - test with these
• Today: Python built-in tech for testing a function as you go

str1 project

• Download str1.zip project
• Expand to get "str1" folder
• Open the folder in PyCharm

Python Function - Pydoc

• See digits_only() below
• See triple-quote description at top
• This is known as "Pydoc" of the function
  What inputs fn takes
  What it promises to return
  Black box model
  "Contract" idea

def digits_only(s):
    """
    Given a string s.
    Return a string made of all
    the chars in s which are digits,
    so 'Hi4!x3' returns '43'.
    Use a for/i/range loop.
    (this code is complete)
    >>> digits_only('Hi4!x3')
    '43'
    >>> digits_only('123')
    '123'
    >>> digits_only('')
    ''
    """
    result = ''
    for i in range(len(s)):
        if s[i].isdigit():
            result += s[i]
    return result

Python Function - Doctest

See lines like:

    >>> digits_only('Hi4!x3')
    '43'

• That syntax spells a test of 1 case
• Looks like a fn call
• Input between the parens
• Output on the next line
• In PyCharm:
  Right click on the test
  Select "Run Doctest ..."
• Output: Process finished with exit code 0
  Also look for "Tests passed" and green checkmark on horizontal bar
  That means it worked perfectly
  This message could be more fun about it!
• Otherwise get error output
• Experiment: try putting in a bug, run Doctest, fix the bug
• Protip:
  Green "play" button at left re-runs recent test
  See also top of "Run" menu
  Avoid having to re-click every time

You will learn and experiment with Doctests in section
