Installing PyCharm
April 5th, 2020
In CS 106A, you will be writing your code on your
computer using an application called
PyCharm. PyCharm is
what is known as an IDE, or Integrated Development Environment,
which means that it allows us to edit our code, browse our files, run
our programs and debug them, all in the same place. It's one of the
most popular Python IDEs in the world, and used extremely commonly in
industry. This handout is intended to take you through installing
PyCharm on your own computer.
Installing Python
In order to be able to run Python programs on your computer, you need
to install a Python Interpreter. An interpreter is a program
that is capable of reading a .py file that you have
written, and translating the Python code in that file to instructions
that your computer can easily execute. Begin by downloading Python:
Installing Python on a Mac
Macs come with a version of Python installed, but this
is an older version of Python. CS 106A
requires the use of the newest version of Python, so make sure to follow these
instructions even if you think you already have Python installed.
To install Python, simply open the downloaded installer file
and follow the default instructions.
Installing Python on Windows
Open the downloaded file. Before installing, there should be an
option that says "Add Python 3.8 in PATH".
Make sure to check this box. Then, continue installing
normally.
Installing and Testing PyCharm
Installation
To get started, download and install the community version of PyCharm:
-
Mac Download
(Open the downloaded
.dmg file and drag PyCharm into
your Applications folder)
-
Windows Download
(Open the downloaded
.exe file and install PyCharm,
using all the default options.)
At the end of the PyCharm installation process, you will be taken to a
welcome screen that looks like this:
Click 'Configure' and then open PyCharm's settings, like so:
In the Preferences window, click 'Project Interpreter', open the dropdown menu, and click
'Show All':

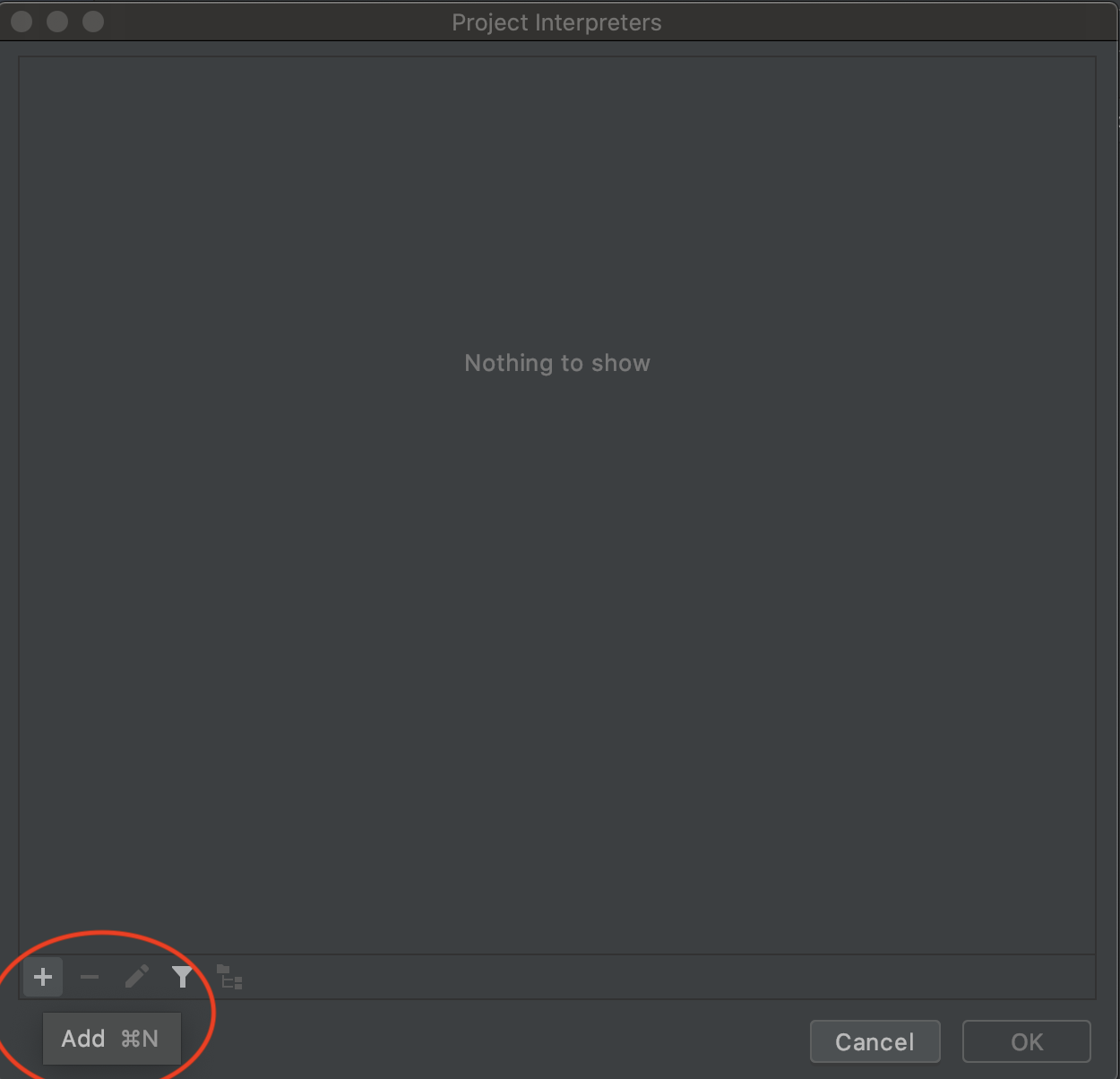

In the following Window, click the plus icon in the bottom left corner:

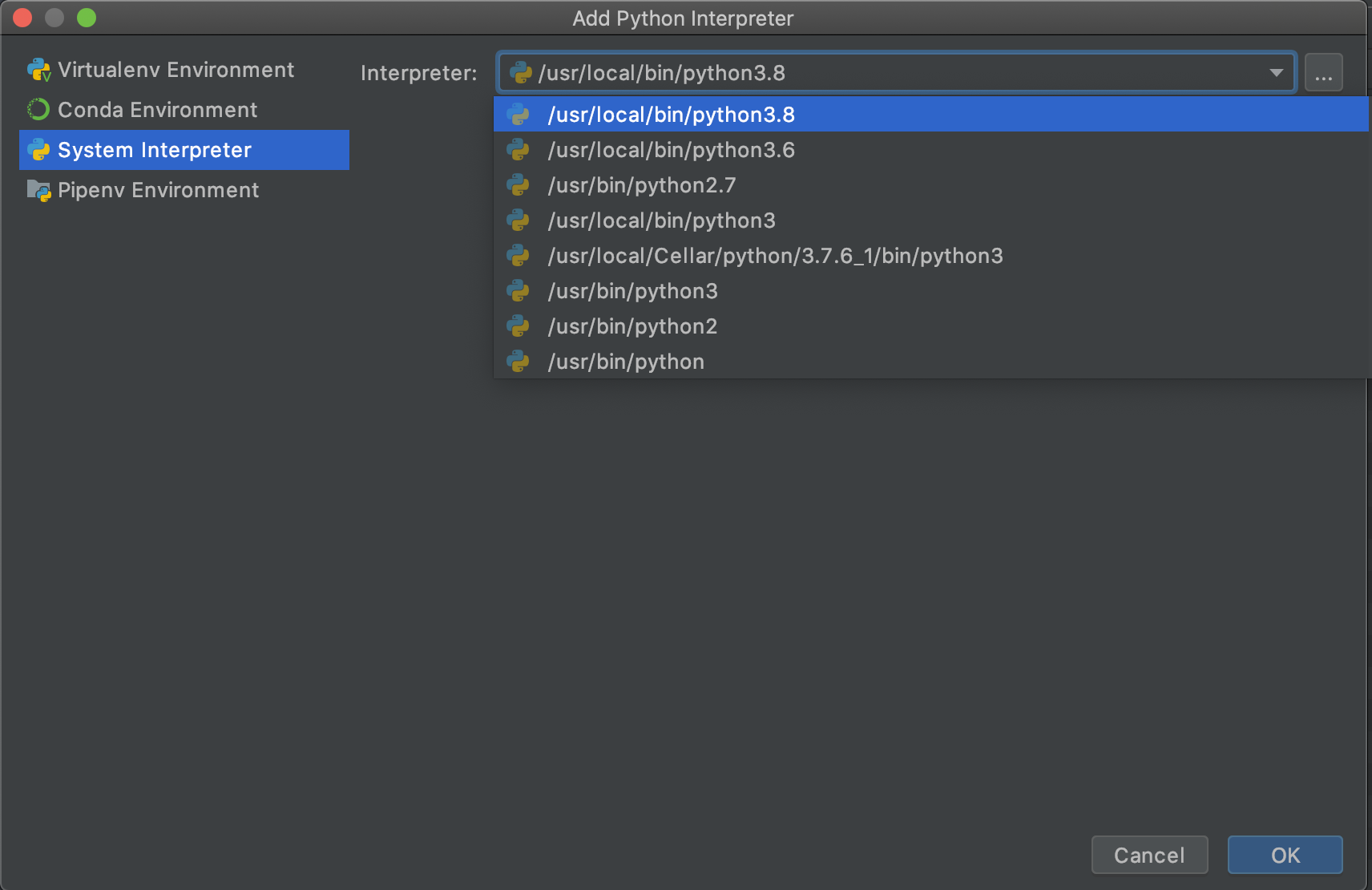

Click 'System Interpreter' in the sidebar. Depending on whether you've installed other versions of Python
before, Python 3.8 may already be selected in the dropdown menu. If not, select Python 3.8 and then click 'OK'
and 'OK' again:

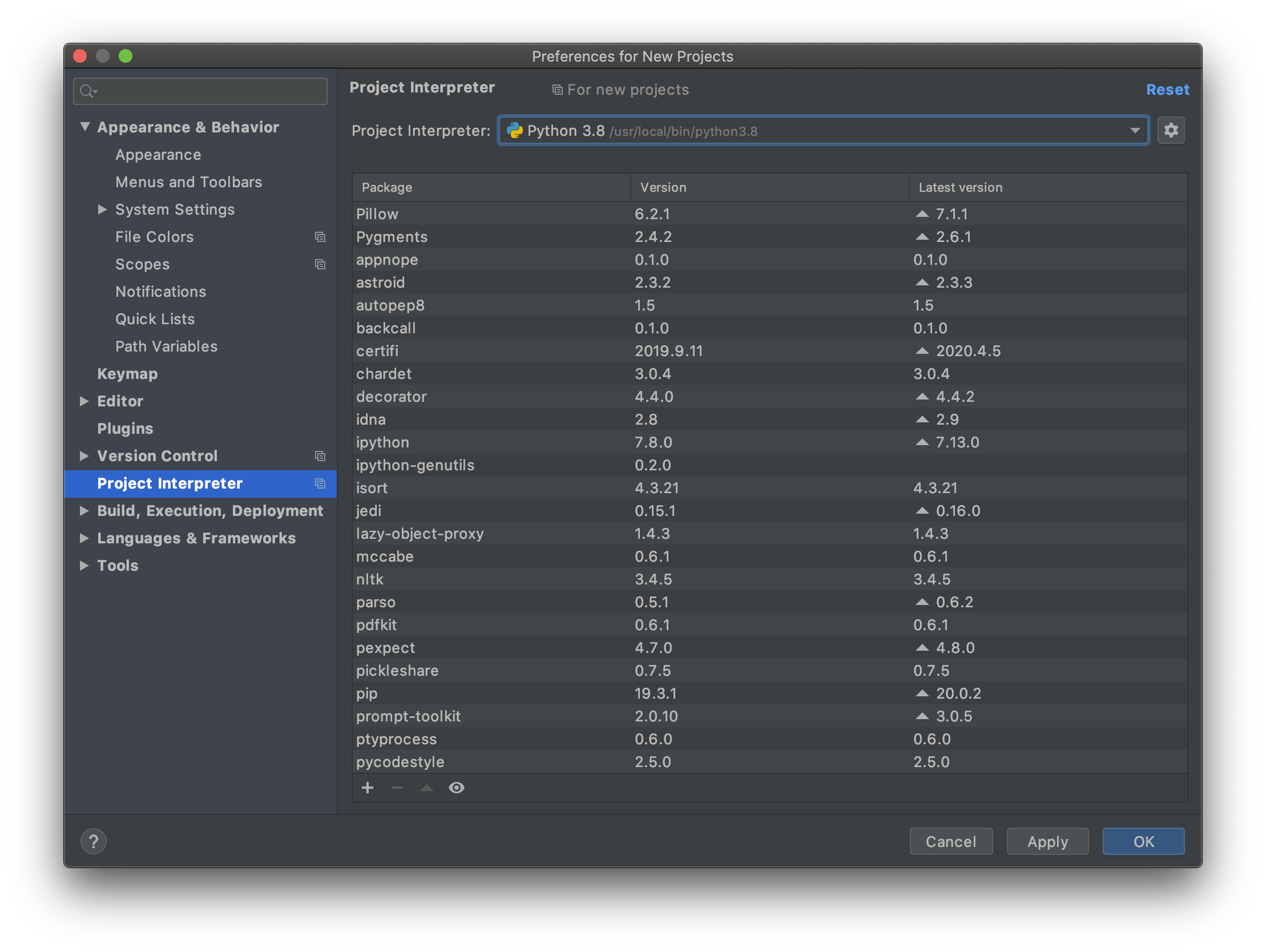

You should now be on a window that looks like this (although the contents of your list might look different):
Click 'OK' again to be taken back to the welcome page. You're now ready to test PyCharm!
Testing PyCharm
PyCharm models a program as a 'project', which consists of one or more
Python files, as well as any additional resources like images or text
files. To get you familiar with working with and running progams in PyCharm,
we've provided a sample project, which you can download
here. To test out this project, and to gain familiarity with the PyCharm
environment, download the sample project (on Windows, you'll
need to manually unzip it by opening it in Windows Explorer and selecting 'Extract All')
and open it in PyCharm (using
the 'open' option on the first screen). Whenever you open projects in PyCharm,
open the folder directly containing the files you want to edit as opposed to just
the files themselves. Upon

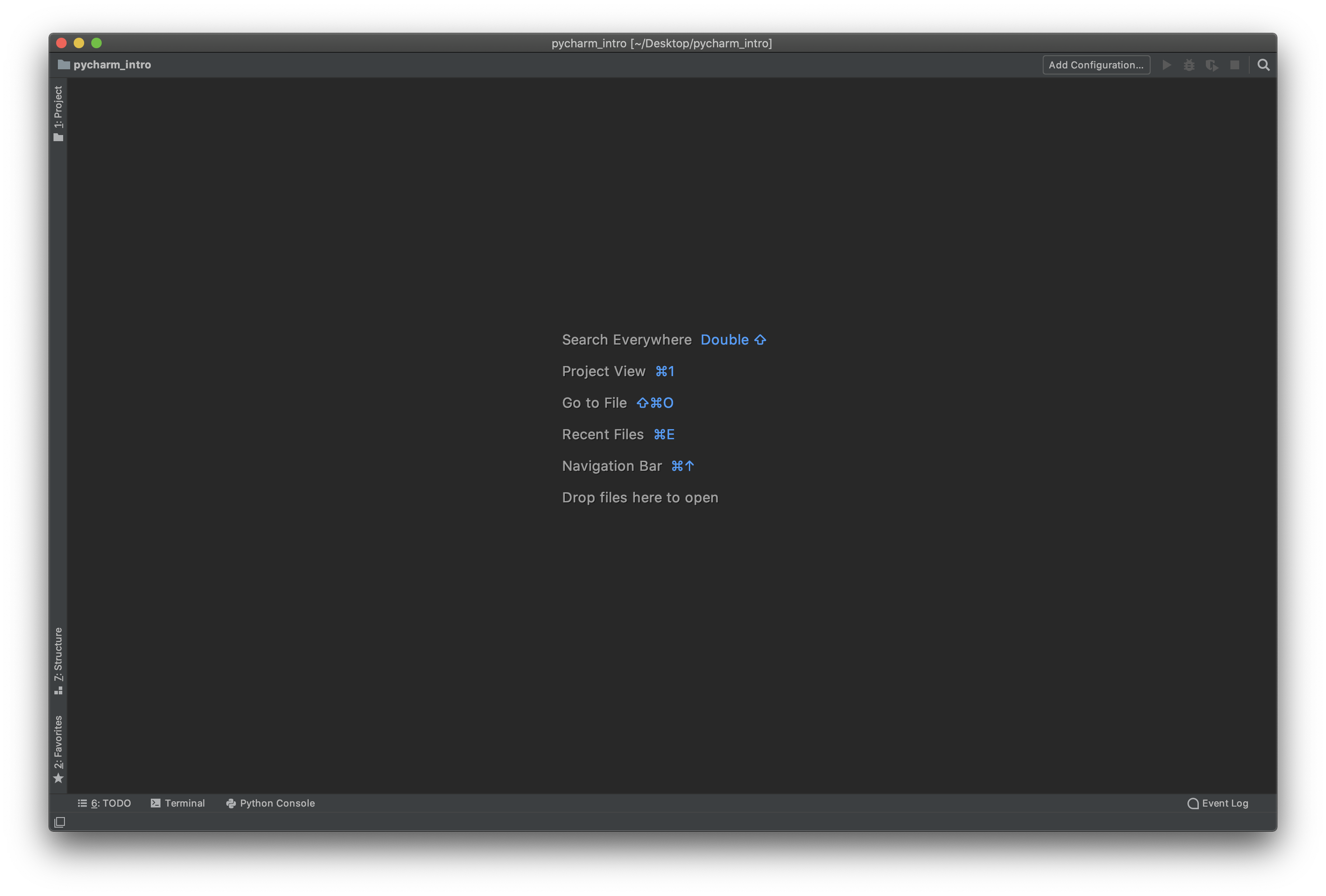

opening the project, you should be greeted by a window that looks like this:
Click 'Project' in the top left or use the Command + 1 shortcut
to open the file explorer, and open intro.py to pull up the editor:
You aren't required to read or understand this code (although you will be able to by the end of the quarter!)
but note that this editor is where you'll be writing all your code this quarter. Now, to run your program, click
'Terminal' in the bottom left corner, which will pull up a new terminal pane in your PyCharm window:
We'll talk more about the terminal later in the quarter, but for now, know that
the terminal is how you'll be running your Python programs throughout the quarter.
To run your first Python program, type this into the terminal and press enter:
python3 intro.py

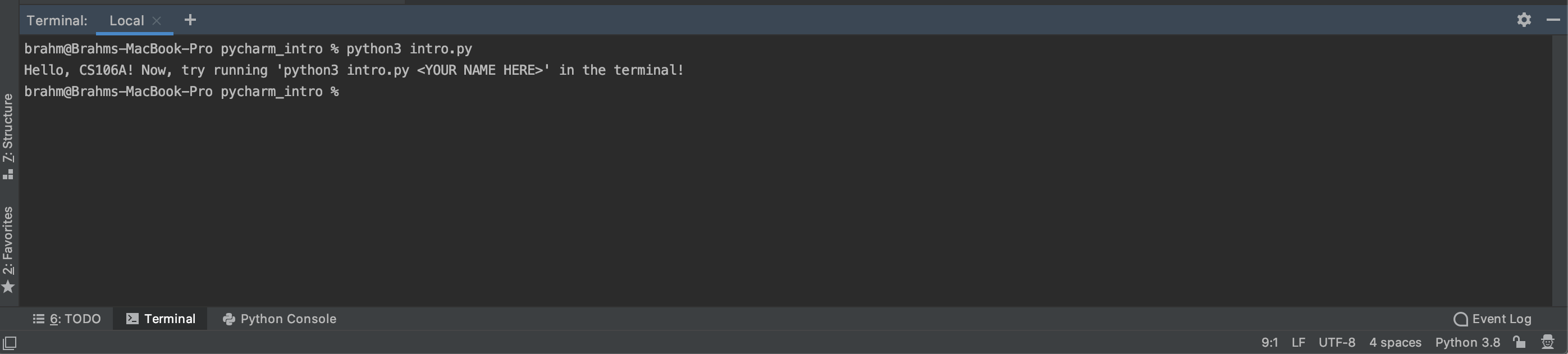

You should see output that looks like this:
Now, type the following command into the terminal:
python3 intro.py < YOUR NAME HERE >
For example, if your name is Brahm, you'd type python3 intro.py Brahm. You
can type your full name if you'd prefer. You should now see output like this:
Congratulations! You're now done with the PyCharm setup process.
Frequently Asked Questions
Can I use another version of Python?
Our strong recommendation is to use Python 3.8, which can be installed
in parallel with other versions of Python. This is the only version of Python
we'll be supporting in this class. You must use at least Python 3.6.
Can I use an editor that isn't PyCharm?
If there's another environment that you're more comfortable with, you may use it,
but the course staff will only provide support for issues in PyCharm. You must not
modify any configuration files provided in assignment starter code.
When I try to run my code, I'm getting an error saying can't open file intro.py: No such file or directory! What does this mean?
This most often happens when you open the incorrect file or folder in PyCharm. In this case, make sure to
open the pycharm_intro folder that directly contains intro.py, rather than
intro.py itself or a folder containing pycharm_intro. On Windows computer, you may
have a folder called pycharm_intro with another folder inside it called pycharm_intro.
Make sure to open the inner folder.
To correct this error, open the 'File' menu and click 'Open'. Then, navigate to the correct
pycharm_intro folder and open it.
To verify that you are in the correct folder,
type ls (that's a lowercase 'L')
dir into your terminal (the same place
you type python3 intro.py < YOUR NAME HERE > ).
This will show you a list of all the files in that folder, and intro.py should
be in this list.
I'm getting a 'No Python Interpreter configured for the project' message when I open a file! What should I do?
This is likely caused by an issue with how you set up the interpreter.
To fix this, click 'Configure Python Interpreter', and set up the interpreter
by following these steps until the 'Testing Pycharm'
section.
I'm on a Mac and I'm getting a message saying The default interactive shell is now zsh.
To update your account to use zsh, please run `chsh -s /bin/zsh. What should I do?
That's just an innocuous message, don't worry about it!
I'm on a Mac and PyCharm won't open! What should I do?
You might be using a slightly older version of MacOS. Try installing
this version
of PyCharm instead.
I'm getting an error window saying "This installation contains JetBrains Runtime 11
which does not support Microsoft Windows 32-bit version"! What should I do?
Try installing
this
version
of PyCharm instead.
Course FAQs will be updated as we receive questions.
