Today: advanced double-while parsing, flex-arrow drawing example

at_word() - Need a Little More Power

We've done them like this:

  at    end
   v----v
xx @word xx

Recall: at_word() Strategy

• 1. s.find() to locate the '@'
• 2. While loop over alpha to find end of 'word'
• Problem with this approach:
  The '@' is kind of a crutch here. More realistic would be that we just find the word itself, floating among other chars.
• Today, a better solution with two while loops
• Think about ♥ chars we want, vs not ♥ chars

Example: find_alpha()

I will work this one in lecture with the double-while technique. Then we'll have you try to solve a similar one. (HW5)

> find_alpha()

find_alpha(s): We'll say a word is made of 1 or more alphabetic chars. Find and return the first word in s, or None if there is none. So '%%%abc xx' returns 'abc'. Use two while loops.

find_alpha() Plan

Work this out with an example in the make-a-drawing tradition

1. Set start = 0

2. Advance start over the '%' to find the 'W'

find_alpha() - Loop 1

• Init: start = 0
• Loop 1: advance start to first alpha char
• What is the loop test?

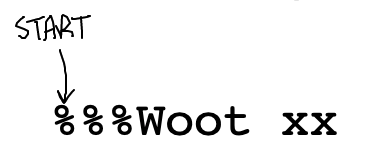

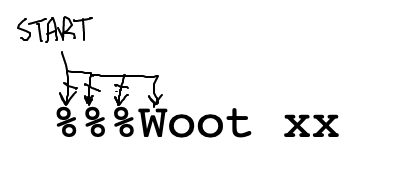

• Draw start pointing to first '%' .. when should it advance?
  Test = go
• Say that we ♥ the alpha chars .. so what do we skip over?

Loop 1 Test

• Skip over the non-alpha chars, aka not ♥ chars
• Therefore test = start is not alpha char
• In Python: not s[start].isalpha()
• Need the start < len(s) guard as usual
• This is similar but not identical to while-char loops we've done before

    # Advance start to first alpha
    start = 0
    while start < len(s) and not s[start].isalpha():
        start += 1

find_alpha() Loop 2

• Variable: end - points to first non-alpha char after start
• Init: end = start + 1

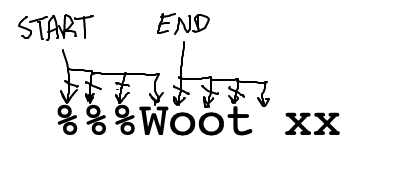

• Loop 2: advance end past alpha chars

Loop 2 Test

• Skip over alpha chars, aka skip over ♥ chars
• Therefore test = end is alpha char
• In Python: s[end].isalpha()

Loop 2 Done

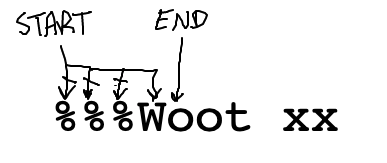

• Loop2 advances end past alpha chars
• Then the slice is easy:
• start is first char
• end is 1 past last char
• Then it's just a slice, sounding like a confident Python programmer
  s[start:end]

Code It Up And Run

> find_alpha()

Bug / Issue: What if there is no alpha?

Q: Suppose there is no alpha. What will start be after loop 1? What is the if-check for that case?

Reminder: here is the loop-1 code:

while start < len(s) and not s[start].isalpha():
   start += 1

Sketch out what start does for the no-alpha case:

  '%%%'
   0123

Solution: Detect No-Alpha

    if start == len(s):
        return None

♥ / not ♥ View

• For various future problems, think of chars we want in s: (♥ in drawing)
• Then the other chars: not ♥ ('n' in drawing)
• Loop1 test: not ch.isalpha()
• Loop2 test: ch.isalpha()

%%%Woot xx
nnn♥♥♥♥nn

find_alpha() Solution Code

def find_alpha(s):
    # Advance start to first alpha
    start = 0
    while start < len(s) and not s[start].isalpha():
        start += 1

    # There was no word
    if start == len(s):
        return None

    # Advance end past alpha chars
    end = start + 1
    while end < len(s) and s[end].isalpha():
        end += 1

    return s[start:end]

Exercise: find_num()

The find_num() - like the lecture example, see if you can do it. The drawing above for the find_alpha() is helpful.

find_num(s): We'll say that a number is a series of one or more digit chars. Find and return the substring of the first num in s, or None if there is none.

> find_num()

find_num() Solution

def find_num(s):
    # Advance start to first digit
    start = 0
    while start < len(s) and not s[start].isdigit():
        start += 1

    # There was no num
    if start == len(s):
        return None

    # Advance end past digits
    end = start + 1
    while end < len(s) and s[end].isdigit():
        end += 1

    return s[start:end]

Challenge For Later - find_abba()

This is a little more difficult than then find_alpha() example. Try it later if you get stuck on the homework.

> find_abba()

find_abba(s): We'll say an "abba" word is just made of 'a' and 'b' chars. Find and return the first abba word in s, or the empty string if there is not one. Use two while loops.

Notice that we don't have some unrealistic constraint that there's always an '@' to start the word - the word is just sitting in s and we need to find it.

find_abba() Loop 1

To get you started, think about the first loop for find_abba() - advancing start to the start of the abba word. This is the not ♥ loop.

Code

start = 0
while start < len(s) and ???:
    start += 1

Some drawings to think about it:

 start
   v
  'xx$aba'

or this

 start
   v
  'xx$bab'

find_abba() Loop 2

The second loop is the same as the find/while problems, advancing end past the ♥ chars.

Code

while end < len(s) and ???:
    end += 1

Some drawings to think about it:

     end
      v
  'xx$aba x'

find_abba() Solution

The first loop, advance start while char is not 'a' and char is not 'b'. The "or" is tempting here, but try it on both the cases above to see why it's "and".

# Advance start to first abba char
start = 0
while start < len(s) and s[start] != 'a' and s[start] != 'b':
    start += 1

Then the loop to find the end of the abba uses "or" and parenthesis, since we have a combination of and/or:

# Advance end past abba chars
end = start + 1
while end < len(s) and (s[end] == 'a' or s[end] == 'b'):
    end += 1

The whole solution

def find_abba(s):
    # Advance start to first abba char
    start = 0
    while start < len(s) and s[start] != 'a' and s[start] != 'b':
        start += 1

    # There was no abba
    if start == len(s):
        return ''

    # Advance end past abba chars
    end = start + 1
    while end < len(s) and (s[end] == 'a' or s[end] == 'b'):
        end += 1

    return s[start:end]

Flex Arrow Example

Download the flex-arrow.zip to work this fun little drawing example.

Recall: floating point values passed into draw_line() etc. work fine.

Draw Arrow Output

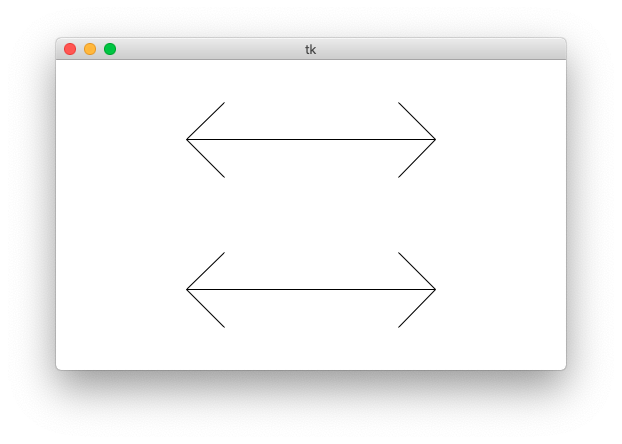

Ultimately we want to produce this output:

The "flex" parameter is 0..1.0: the fraction of the arrow's length used for the arrow heads. The arms of the arrow will go at a 45-degree angle away from the horizontal.

Starter Code: Left Arrow + flex

Specify flex on the command line so you can see how it works. Close the window to exit the program. You can also specify larger canvas sizes.

$ python3 flex-arrow.py -arrows 0.25
$ python3 flex-arrow.py -arrows 0.15
$ python3 flex-arrow.py -arrows 0.1 1200 600

draw_arrow() Starter Code

Look at the draw_arrow() function. It is given x,y of the left endpoint of the arrow and the horizontal length of the arrow in pixels. The "flex" number is between 0 .. 1.0, giving the head_len - the horizontal extent of the arrow head - called "h" in the diagram. Main() calls draw_arrow() twice, drawing two arrows in the window.

This starter code sets up the drawing

def draw_arrow(canvas, x, y, length, flex):
    """
    Draw a horizontal line with arrow heads at both ends.
    It's left endpoint at x,y, extending for length pixels.
    "flex" is 0.0 .. 1.0, the fraction of length that the
    arrow heads should extend horizontally.
    """
    # Compute where the line ends, draw it
    x_right = x + length - 1
    canvas.draw_line(x, y, x_right, y)

    # Draw 2 arrowhead lines, up and down from left endpoint
    head_len = flex * length
    # what goes here?

Draw Left Arrow Head

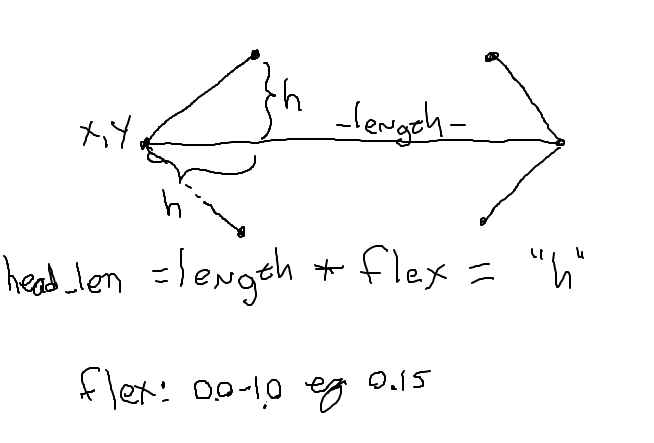

With head_len computed - what the two lines to draw the left arrow head? This is a nice visual algorithmic problem.

• Left end of line at x,y
• Right end x: x + head_len
• Other end y: y - head_len and y + head_len

Code to draw left arrow head:

    # Draw 2 arrowhead lines, up and down from left endpoint
    head_len = flex * length
    canvas.draw_line(x, y, x + head_len, y - head_len)  # up
    canvas.draw_line(x, y, x + head_len, y + head_len)  # down

Exercise - Right Arrowhead

Here is the diagram again.

Add the code to draw the head on the right endpoint of the arrow. The head_len variable "h" in the drawing. This is a solid, CS106A applied-math exercise. In the function, the variable x_right is the x coordinate of the right endpoint of the line:
x_right = x + length - 1

What that code is working, this should draw both arrows

$ python3 flex-arrow.py -arrows 0.1 1200 600

draw_arrow() Solution

    # Draw 2 arrowhead lines from the right endpoint
    # your code here
    pass
    canvas.draw_line(x_right, y, x_right - head_len, y - head_len)  # up
    canvas.draw_line(x_right, y, x_right - head_len, y + head_len)  # down

Arrow Observations

• Params to draw_arrow(); x, y, length, flex
• Our code just uses those numbers
• Note we are feeding floating point values into draw_line() and it's fine

A Little Something Extra

Now we're going to show you something a little beyond the regular CS106A level, and it's a teeny bit mind warping.

Arrow Trick Mode

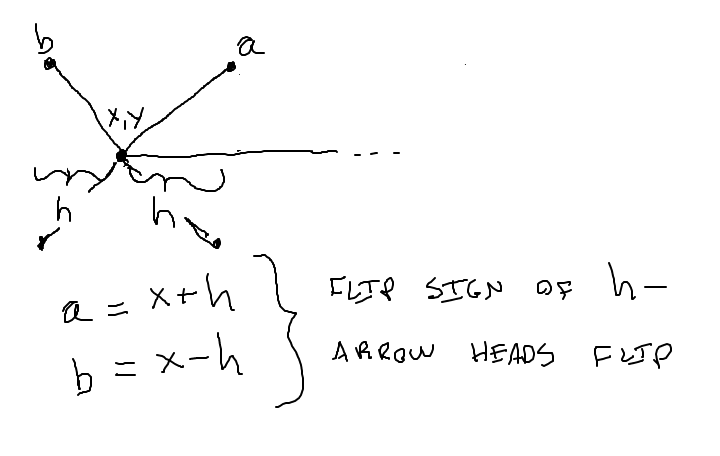

• Suppose we multiplied head_len by -1?
  Or equivalently, swapped the addition/subtraction in the code
• Look at the code that computes the x values
• Instead of the arrow head going in, it goes out
• Your code will do this
  If we pass in flex as -0.2 instead of 0.2

-trick Mode

Run the code with -trick like this, see what you get.

$ python3 flex-arrow.py -trick 0.1 1200 600

• This is using your same draw_arrow() code
• Draws the top arrow normally
• For the second arrow, it multiplies flex by -1
• e.g. flex of 0.2 becomes flex -0.2
• Constructs the Muller-Lyer illusion!
• The horizontal lines are the same length
  But is sure doesn't look like it
• The two horizontal lines are drawn by the same draw_line() code
• This is Eric Roberts' example idea - retired Stanford CS Professor
• The "flex" * -1 idea is my CS106A parameter technique for it

Python PEP8 - is None Rule

• PEP8 rule
• == is the simple, reliable way to compare values
• We will not mark off code that uses ==
• BUT there's a rule in PEP8...
• Comparisons to None should use the is/ is not operators
  Instead of == / !=

In the Guide, see the is None section for more details

if x is None:              # YES this way
    print('None found')

if x is not None:          # YES this way
    print('Nope!')



if x == None:              # NO not this way
    print('PEP8 not like this form')

Note: one more thing today

One More Thing

• World War II - England 1940, by itself
• German Enigma machine cryptography
• By hand - looking for patterns
• A "crib" is something expected to appear in the plaintext
  e.g. "ein" for Alan Turing
• Looking char by char
• Turned out to be the first days of CS

puzzle-crypt.txt
