Today: dict output, wordcount.py example program, list functions, List patterns, state-machine pattern

Dict Load-Up vs. Output

• Thus far we have concentrated on loading data into the dict
• e.g. dict-count algorithm
• Typical program pattern: read data file, load up dict, then do something with dict
  BabyNames has this pattern
• Possible output stage: print out all the data organized in the dict
• e.g. wordcount below - read file, print out list of all words with their counts

Have Dict - How To See Contents?

• Say you have loaded up a dict with your data
• How do you loop over the whole thing?
• dict.keys()

dict.keys()

• The function dict.keys() returns a list-like collection of the dict keys
• Loop over dict.keys() to access every key in dict
• Recall: don't modify a thing while looping over it (list, dict)
• The keys are in a "random" order
  Actually it's the order they were added
  But it's random-looking to the end user
• Also dict.values()
  List like collection of all the values
  Used less often than .keys()

>>> # Load up dict
>>> d = {}
>>> d['a'] = 'alpha'
>>> d['g'] = 'gamma'
>>> d['b'] = 'beta'
>>>
>>> # d.keys() - list-like "iterable" of keys,
>>> # loop over keys to see all of dict
>>> d.keys()
dict_keys(['a', 'g', 'b'])
>>>
>>> # d.values() - list of values, not used so often
>>> d.values()
dict_values(['alpha', 'gamma', 'beta'])

Dict Output v1

Say we want to print the contents of a dict. Loop over d.keys(), for each key, look up the value for that key. This works fine and accesses all of the dict. The only problem is that the keys are in random order.

>>> d = {'a': 'alpha', 'g': 'gamma', 'b': 'beta'}
>>> for key in d.keys():
...   print(key, '->', d[key])
...
a -> alpha
g -> gamma
b -> beta

Dict Output v2 - sorted(d.keys())

• The function sorted(xxx) takes in any linear collection
• Returns a new list with those elements, sorted into increasing order
  We will explore sorted() in more detail later
• Works with d.keys()
• Below is the standard way to print out a dict with the keys in sensible order
• The wordcount example will use this pattern

>>> d.keys()          # random order - not pretty
dict_keys(['a', 'g', 'b'])
>>>
>>> sorted(d.keys())  # sorted order - nice
['a', 'b', 'g']
>>>
>>> for key in sorted(d.keys()):
...   print(key, '->', d[key])
...
a -> alpha
b -> beta
g -> gamma

WordCount Example Program

The wordcount program below reads in a text, separates out all the words, builds a count dict to count how often each word appears, and finally produces a report with all the words in alphabetical order, each with its count, this:

aardvark 1
anvil 3
ban 1
boat 4
be 19
...

We may use this example more later on, but for today it loads up a dictionary and prints it out. In particular, could look at main() trace how the data flows from the file, into the dict, and then to printed output.

wordcount.zip

Sample Run

Note how words are cleaned up of non-alphabetic chars.

$ cat poem.txt
Roses are red
Violets are blue
"RED" BLUE.
$
$ python3 wordcount.py poem.txt
are 2
blue 2
red 2
roses 1
violets 1
$
$ python3 wordcount.py alice-book.txt   # whole book
...lots...
yourself 10
youth 6
zealand 1
zigzag 1
$

Look at source code for it.

1. clean(s) - Utility Code

The clean(s) function is used to clean punctuation from the edges of words, like given '--woot!' extract just 'woot'. It is written as a black-box function with Doctests, of course! The counting code will use this to clean up each word as it goes.

def clean(s):
    """
    Given string s, returns a clean version of s where all non-alpha
    chars are removed from beginning and end, so '@@hi^^' yields 'hi'.
    The resulting string will be empty if there are no alpha chars.
    >>> clean('$abc^')      # basic
    'abc'
    ...
    """

2. read_counts(filename) - Central Algorithm

This reads the whole file into a string, just to show that technique. Would be to write this with the regular for/line/f loop. Demonstrates split() with no parameters.

def read_counts(filename):
    """
    Given filename, reads its text, splits it into words.
    Returns a "counts" dict where each word
    is the key and its value is the int count
    number of times it appears in the text.
    Converts each word to a "clean", lowercase
    version of that word.
    The Doctests use little files like "test1.txt" in
    this same folder.
    >>> read_counts('test1.txt')
    {'a': 2, 'b': 2}
    >>> read_counts('test2.txt')    # Q: why is b first here?
    {'b': 1, 'a': 2}
    >>> read_counts('test3.txt')
    {'bob': 1}
    """
    with open(filename) as f:
        text = f.read()  # read file as string vs for/line/in way

    # .split() with no parameters splits on whitespace,
    # and \n counts as whitespace, so get whole file
    # ['Roses', 'are', 'red', 'Violets', 'are', ...]
    words = text.split()

    counts = {}
    for word in words:
        word = word.lower()
        cleaned = clean(word)  # style: call clean() once, store in var
        if cleaned != '':      # subtle - cleaning may leave only ''
            if cleaned not in counts:
                counts[cleaned] = 0
            counts[cleaned] += 1
    return counts

3. print_counts(counts) - Output Code

In the print_counts() function, the counts dict is passed in and the totally standard dict output code is used to print out the words and their counts, one per line, in alphabetical order.

def print_counts(counts):
    """
    Given counts dict, print out each word and count
    one per line in alphabetical order, like this
    aardvark 1
    apple 13
    ...
    """
    for word in sorted(counts.keys()):
        print(word, counts[word])

Timing Tests (optional)

Try more realistic files. Try the file alice-book.txt - the full text of Alice in Wonderland full text, 27,000 words. tale-of-two-cities.txt - full text, 133,000 words. Time the run of the program, see if the dic†/hash-table is as fast as they say with the command line "time" command. The second run will be a little faster, as the file is cached by the operating system.

$ time python3 wordcount.py alice-book.txt
...
...
youth 6
zealand 1
zigzag 1

real	0m0.103s
user	0m0.079s
sys	0m0.019s

Here "real 0.103s" means regular clock time, 0.103 of a second, aka 103 milliseconds, aka about a tenth of a second elapsed to run this command.

Note in Windows, you need the "Powershell" terminal, not the more primitive terminal it uses by default. Here are instructions for enabling PowerShell.

Windows PowerShell equivalent to "time" the run of a command:

$ Measure-Command { py wordcount.py alice-book.txt }

Let's try it with the book A Tale of Two Cities

$ time python3 wordcount-solution.py tale-of-two-cities.txt
... lots of printing ...
zealous 2

real	0m0.216s
user	0m0.180s
sys	0m0.027s
$

So that takes 0.21 seconds. There are about 133,000 words in the Tale of Two Cities. Here are the key lines for each word:

    if word not in counts:   # 1 dict "in"
        counts[word] = 0
    counts[word] += 1        # 1 dict get, 1 set

Each word hits the dict 3 times: 1x "in", then at least 1 get and 1 set for the +=. So how long does each dict access take?

>>> 0.21 / (133000 * 3)
5.263157894736842e-07

Ten to the -7 is a tenth of a millionth, so with our back-of-envelope math here, the dict is taking 1/2 of a millionth of a second per dict access. In reality it's faster than that, as we are not separating out the time for the file reading and parsing which went in to the 0.21 seconds. Nonetheless the basic claim about dicts is here - they are super fast accessing per key, even if the number of keys is large. In CS106B, you build a dictionary from scratch.

List 1.0 Features

See also Python guide Lists

We'll call the basic list features we've used so far the 1.0 features - you can get quite far with just those.

• You can get quite far with just these basics
• lst = [1, 2, 3]
• lst.append(4) to add
• len(lst)
• lst[2] access
• Tests: in / not in
• Find index: lst.index(2) -> 1
• loop 1: for elem in lst:
• loop 2: for i in range(len(lst)):

>>> nums = []
>>> nums.append(1)
>>> nums.append(0)
>>> nums.append(6)
>>>
>>> nums
[1, 0, 6]
>>>
>>> 6 in nums
True
>>> 5 in nums
False
>>> 5 not in nums
True
>>>
>>> nums.index(6)
2
>>> nums[0]
1
>>>
>>> for num in nums:
...   print(num)
...
1
0
6

List Slices

• Slices work with lists
• Exactly like Strings
• lst[start:end]
  Elements starting at start
  Up to but not including end UBNI
• Creates a new list
• Populated with elements from original list
• lst[:] copies the whole list
• lst[-1] is the last element

>>> lst = ['a', 'b', 'c']
>>> lst2 = lst[1:]   # slice without first elem
>>> lst2
['b', 'c']
>>> lst
['a', 'b', 'c']
>>> lst3 = lst[:]    # copy whole list
>>> lst3
['a', 'b', 'c']
>>> # can prove lst3 is a copy, modify lst
>>> lst[0] = 'xxx'
>>> lst
['xxx', 'b', 'c']
>>> lst3
['a', 'b', 'c']

lst.pop([optional index])

• Mentioning for completeness
• Need something the opposite of .append()
• How to pull elements out of a list, shrinking it?
• lst.pop() - removes last elem from list, returning it
• Mnemonic: opposite of append()
• pop(index) - takes an optional index number
• Pops off that element instead of the end one
• pop(0) - pops the first element
• The list elements are kept in a contiguous block
  Shifting elements over so they are indexed 0..len(lst)-1
• Error if the list is empty - reasonable!

>>> lst = ['a', 'b', 'c']
['a', 'b', 'c']
>>> lst.pop()   # opposite of append
'c'
>>> lst
['a', 'b']
>>> lst.pop(0)  # can specify index
'a'
>>> lst
['b']
>>> lst.pop()
'b'
>>> lst.pop()
IndexError: pop from empty list
>>>

Now we'll look some functions that are related to lists and we will use all of these.

1. sorted()

• sorted() takes in list, or list-like collection
  e.g. range() or dict.keys()'
• sorted uses the operator <
5 < 6 -> True
'apple' < 'banana' -> True
• Creates and returns increasing order sorted list
  Original list is not changed
• int elements - numeric ordering
• string elements - alphabetical, starting with leftmost char
  Uppercase before lowercase, deal with this later
• has reverse=True optional "named" parameter
  Named params like this: no space around =
• Error to mix int/str elements
• Remember: sorting is somewhat costly, don't do it for no reason
  CS106B: implement your own sorting

>>> sorted([45, 100, 2, 12])               # numeric
[2, 12, 45, 100]
>>>
>>> sorted([45, 100, 2, 12], reverse=True)
[100, 45, 12, 2]
>>>
>>> sorted(['banana', 'apple', 'donut'])   # alphabetic
['apple', 'banana', 'donut']
>>>
>>> sorted(['45', '100', '2', '12'])       # fix later
['100', '12', '2', '45']
>>>
>>> sorted(['45', '100', '2', '12', 13])
TypeError: '<' not supported between instances of 'int' and 'str'

2. min(), max()

• These are related to sorted() - returning 1 elem
• Use this builtin to pick out smallest/largest value
• Works with several params, or with a list
• Works with int
• Works with str
• Works with anything where "<" has meaning
• Error with empty list, must have at least 1 value
• Note not object noun.verb style, a function like sorted()
• min()/max() much faster than sorted() - use these if just need the one value
• Style reminder:
  Don't use the name of a built-in function as a variable name
  e.g. don't use "min" or "max" as a var name, though it's very tempting!

>>> min([1, 3, 2])
1
>>> max([1, 3, 2])
3
>>> min([1])        # len-1 works
1
>>> min([])         # len-0 is an error
ValueError: min() arg is an empty sequence
>>>
>>> min(['banana', 'apple', 'zebra'])  # strs work too
'apple'
>>> max(['banana', 'apple', 'zebra'])
'zebra'
>>>
>>> min(1, 3, 2)  # w/o list form
1
>>> max(1, 3, 2)
3

3. sum()

Compute the sum of a collection of ints or floats, like +.

>>> nums = [1, 2, 1, 5]
>>> sum(nums)
9

List Code Pattern Examples

Look at the "listpat" exercises on the experimental server

> listpat exercises. This section starts with basic "accumulate" pattern problems. The later problems require more sophisticated state-machine solutions.

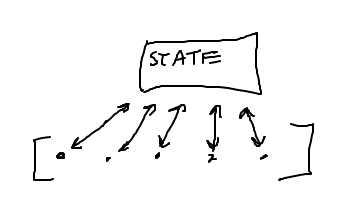

State-Machine Pattern/Strategy

• Add a "state" variable
• 1. Init the variable before the loop (short for "initialize")
• 2. Loop over the elements. For each element, look at or update the state
• 3. After the loop, use state variable to compute the final result
• Idea: push complexity into the variable, less code overall

Recall Accumulate Pattern +=

Many functions we've done before actually fit the state-machine pattern. Start the state variable as empty, += in the loop.

double_char() Type

# 1. init state before loop
result = ''

loop:
   ....
   # 2. update in the loop
   if xxx:
       result += yyy


# 3. Use state to compute result
return result

Counting Type, Same Pattern

# 1. init before
count = 0

loop:
   ....
   # 2. update in the loop
   if xxx:
       count += yyy


# 3. Use state to compute result
return count

State-Machine Exercise: min()

Use the state-machine strategy outlined below to solve something a little more interesting.

> min()

• min() function - exercise or example
• Given list of numbers, return the min value
• Don't sort the numbers
  Sorting is kind of costly, avoid if possible
• Strategy
  Keep state variable best - smallest element seen
  What is the init value of best?
  Foreach over the numbers, update best for each number
  Is this number I'm looking at the new best?
• aka "King Of The Mountain" game on playground
• Or The Wire "You come at the king, you best not miss"

The style "len rule": we have Python built-in functions like len() min() max() list(). Avoid creating a variable with the same name as an important function, like "min" or "list". This is why our solution uses "best" as the variable to keep track of the smallest value seen so far instead of "min".

min() Solution

def min(nums):
    # best tracks smallest value seen so far.
    # Compare each element to it.
    best = nums[0]
    for num in nums:
        if num < best:
            best = num
    return best

If we think about it carefully, we could loop over nums[1:] to avoid one comparison, but that extra complication is not worthwhile.

min(): Init value of best?

• What init value for best variable?
• Might think - use a big number like 1000000 or the max possible int value
  Doesn't work perfectly and, weirdly, Python does not have a max int
• Using nums[0] is a nice, perfectly working strategy here

State-Machine - alpha_replace()

> alpha_replace()

'%abc^Yxyz' -> '%xxx^yyyy'
'AaBcdEf'   -> 'aabbbee'

Given a string s. Return a version of s where every alphabetic char is replaced by 'x'. In addition, for each uppercase alphabetic char, e.g. 'A', replace the later alphabetic chars with its lowercase form, e.g. replace with 'a' instead of 'x'.

State-Machine - alpha_replace() Ideas

• 1. Have replace variable
  Stores what to replace each alpha with
  Init to 'x'
• 2. On uppercase char -> update the replace var
• 3. Each char: logic to replace or leave alone

alpha_replace() Solution

def alpha_replace(s):
    result = ''
    replace = 'x'  # Replace alphas with this
    for ch in s:
        if ch.isupper():  # Update replace
            replace = ch.lower()
        if ch.isalpha():
            result += replace
        else:
            result += ch
    return result

State-Machine - digit_decode()

> digit_decode()

Say we have a code where most of the chars in s are garbage. Except each time there is a digit in s, the next char goes in the output. Maybe you could use this to keep your parents out of your text messages in high school.

'xxyy9H%vvv%2i%t6!' -> 'Hi!'

How Might You Solve This?

I can imagine writing a while loop to find the first digit, then taking the next char, .. then the while loop again ... ugh.

State-Machine Strategy: take_next Var

Have a boolean variable take_next which is True if the next char should be taken (i.e. the char of the next iteration of the loop) and False otherwise.

Write a nice, plain loop through all the chars. Set take_next to True when you see a digit. For each char, look at take_next to see if it should be taken. The exact details of the code in the loop are unusually tricky.

This is such a nice approach vs. trying to solve it with a bunch of while loops.

Just Try It - Debug From Wrong Output

Type in some code that is an attempt. Run it, see the output, work from there. Compared to most problems, I think this problem is easiest to debug by looking at the wrong output. Put some code in there, run it, and go from there.

You could solve this using index numbers and -1. However, it's worth working out this state-machine approach which does not rely on index numbers at all.

digit_decode() Solution

def digit_decode(s):
    result = ''
    take_next = False
    for ch in s:
        if take_next:
            result += ch
            take_next = False
        if ch.isdigit():
            take_next = True
        # Set take_next at the bottom of the
        # loop, taking effect on the next char
        # at the top of the loop.
    return result

Could set take_next for both True and False cases with an if/else structure vs. setting to False in the upper if.

Later Practice - upper_hat()

A more difficult state-machine problem for more practice

> upper_hat()

State-Machine - "previous" Pattern

• A classic state-machine technique (CS106B uses this one)
• Appears in the last part of HW6 Baby Names
• Challenge: how many elems are the same as the elem to their left
• Have a "previous" state var
• Before the loop, init previous with a harmless value, e.g. None or ''
• Last line in loop: previous = elem
• Then for each loop iteration:
  Have current element
  Have "previous", the value from the previous loop iteration

Previous pattern:

# 1. Init with not-in-list value
previous = None

for elem in lst:
    # 2. Use elem and previous in loop

    # 3. last line in loop:
    previous = elem

Previous Drawing

Here is a visualization of the "previous" strategy - the previous variable points to None, or some other chosen init value for the first iteration of the loop. For later loops, the previous variable lags one behind, pointing to the value from the previous iteration.

Example - count_dups()

> count_dups()

count_dups(): Given a list of numbers, count how many "duplicates" there are in the list - a number the same as the value immediately before it in the list. Use a "previous" variable.

count_dups() Solution

The init value just needs to be some harmless value such that the == test will be False. None often works for this.

def count_dups(nums):
    count = 0
    previous = None      # init
    for num in nums:
        if num == previous:
            count += 1
        previous = num   # set for next loop
    return count

State-Machine Challenge - hat_decode()

A neat example of a state-machine approach. Optional - just if we have time.

The "hat" code is a more complex way way to hid some text inside some other text. The string s is mostly made of garbage chars to ignore. However, '^' marks the beginning of actual message chars, and '.' marks their end. Grab the chars between the '^' and the '.', ignoring the others:

'xx^Ya.xx^y!.bb' -> 'Yay!'

Solve using a state-variable "copying" which is True when chars should be copied to the output and False when they should be ignored. Strategy idea: (1) write code to set the copying variable in the loop. (2) write code that looks at the copying variable to either add chars to the result or ignore them.

There is a very subtle issue about where the '^' and '.' checks go in the loop. Write the code the first way you can think of, setting copying to True and False when seeing the appropriate chars. Run the code, even if it's not going to be perfect. If it's not right (very common!), look at the got output. Why are extra chars in there? How to rearrange the loop to fix it?

For reference - source code for wordcount

WordCount Example Code

#!/usr/bin/env python3

"""
Stanford CS106A WordCount Example
Nick Parlante

Counting the words in a text file is a sort
of Rosetta Stone of programming - it uses files, dicts, functions,
loops, logic, decomposition, testing, command line in main().
Trace the flow of data starting with main().
There is a sorted/lambda exercise below.

Code is provided for alphabetical output like:
$ python3 wordcount.py somefile.txt
aardvark 1
anvil 3
boat 4
...

**Exercise**

Implement code in print_top() to print the n most common words,
using sorted/lambda/items.

Then command line -top n feature calls print_top() for output like:
$ python3 wordcount.py -top 10 alice-book.txt
the 1639
and 866
to 725
a 631
she 541
it 530
of 511
said 462
i 410
alice 386
"""

import sys


def clean(s):
    """
    Given string s, returns a clean version of s where all non-alpha
    chars are removed from beginning and end, so '@@hi^^' yields 'hi'.
    The resulting string will be empty if there are no alpha chars.
    >>> clean('$abc^')      # basic
    'abc'
    >>> clean('abc$$')
    'abc'
    >>> clean('^x^')        # short (debug)
    'x'
    >>> clean('abc')        # edge cases
    'abc'
    >>> clean('$$$')
    ''
    >>> clean('')
    ''
    """
    # Move begin rightwards, past non-alpha punctuation
    begin = 0
    while begin < len(s) and not s[begin].isalpha():
        begin += 1

    # Move end leftwards, past non-alpha
    end = len(s) - 1
    while end >= begin and not s[end].isalpha():
        end -= 1

    # begin/end cross each other -> nothing left
    if end < begin:
        return ''
    return s[begin:end + 1]


def read_counts(filename):
    """
    Given filename, reads its text, splits it into words.
    Returns a "counts" dict where each word
    is the key and its value is the int count
    number of times it appears in the text.
    Converts each word to a "clean", lowercase
    version of that word.
    The Doctests use little files like "test1.txt" in
    this same folder.
    >>> read_counts('test1.txt')
    {'a': 2, 'b': 2}
    >>> read_counts('test2.txt')    # Q: why is b first here?
    {'b': 1, 'a': 2}
    >>> read_counts('test3.txt')
    {'bob': 1}
    """
    with open(filename) as f:
        text = f.read()  # read file as string vs for/line/in way

    # .split() with no parameters splits on whitespace,
    # and \n counts as whitespace, so get whole file
    # ['Roses', 'are', 'red', 'Violets', 'are', ...]
    words = text.split()

    counts = {}
    for word in words:
        word = word.lower()
        cleaned = clean(word)  # style: call clean() once, store in var
        if cleaned != '':      # subtle - cleaning may leave only ''
            if cleaned not in counts:
                counts[cleaned] = 0
            counts[cleaned] += 1
    return counts


def print_counts(counts):
    """
    Given counts dict, print out each word and count
    one per line in alphabetical order, like this
    aardvark 1
    apple 13
    ...
    """
    for word in sorted(counts.keys()):
        print(word, counts[word])
    # Alternately can use counts.items() to access all key/value pairs
    # in one step.
    # for key, value in sorted(counts.items()):
    #    print(key, value)


def print_top(counts, n):
    """
    (Exercise)
    Given counts dict and int n, print the n most common words
    in decreasing order of count
    the 1639
    and 866
    to 725
    ...
    """
    items = counts.items()
    # To get a start writing the code, could print raw items to
    # get an idea of what we have.
    # print(items)

    # Your code here - our solution is 3 lines long, but it's dense!
    # Hint:
    # Sort the items with a lambda so the most common words are first.
    # Then print just the first n word,count pairs
    pass
    # 1. Sort largest count first
    items = sorted(items, key=lambda pair: pair[1], reverse=True)
    # 2. Loop over slice of first n
    for word, count in items[:n]:
        print(word, count)


def main():
    # (provided)
    # Command line forms
    # 1. filename
    # 2. -top n filename   # prints n most common words
    args = sys.argv[1:]

    if len(args) == 1:
        # filename
        counts = read_counts(args[0])
        print_counts(counts)

    if len(args) == 3 and args[0] == '-top':
        # -top n filename
        n = int(args[1])
        counts = read_counts(args[2])
        print_top(counts, n)


if __name__ == '__main__':
    main()
