Today: Debugging 1-2-3, debug printing, string upper/lower, string case-sensitive, reversed, movie example, grid, grid testing, demo HW3

Will CS106A Get Harder and Harder Each Week?

Is this course going to get harder and harder each week until nobody is left? Mercifully, no! We're actually going to settle down a little from here on out.

After You Find The Bug, It Looks Obvious

Hang in there! You can spend hours fiddling with some line to get it to work. That's what everybody is doing. You are building up computer-code skills that will be useful for all sorts of things, but it takes some hours.


We're going to weave together two things below - show some string algorithms, but also show some debugging techniques.

Debugging 1-2-3

To write code is to see a lot of bugs. We'll mention the 3 debug techniques here, and do some concrete examples of two of these below.

For more details, see the Python Guide Debugging chapter

Debug-1 Technique
Read the error message

An "exception" in Python represents an error during the run that halts the program. Read the exception message and line number. Read the exception text (which can be quite cryptic looking), from the bottom up. Start the bottom of the error report, looking for the first line of code that is your code and read the error message which can be quite helpful. Go look at the line of your code. Many bugs can be fixed right there, just knowing the error message and which line caused it.

Debug-2 Technique
Look at the output/got + code

Don't ask "why is this not working?". Ask "why is the code producing this output?".

The code and the output are not shifting around - they are crisp and repeatable, just sitting there. Look at the first part of the output which is wrong. What line of the code produced that?

This can work well with Doctests which can show you what you need with one click. Run the Doctest and you have the code, the input, and the output all to work with. It can also be handy to write a small Doctest.

We talked about writing a simple, obvious test case as a first Doctest. e.g. for the alpha_only() function that returns the alphabetic chars from a string, an input like '@Ax4**y', looking for output 'Axy'. That's fine. For debugging, sometimes it's nice to add a tiny test that still shows the bug, maybe '@A' - the loops and everything run so few times, there's less chaos to see through.

Sometimes looking at the code to see how it produced the output is too hard! In that case try print() below.

Debug-3 Technique
Add print() in the code

This is a more rarely used technique. Instead of tracking the code in your head, add print() to see the state of the variables. It's nice to just have the computer show the state of the variables in the loop or whatever. This works on the experimental server and in PyCharm - demo below.

Note that return is the formal way for a function to produce a result. The print() function does not change that. Print() is a sort of side-channel of text, alongside the formal result. We'll study this in more detail when we do files.

The experimental server shows the function result first, then the print output below. This can also work in a Doctest. Be sure to remove the print() lines when done - they are temporary scaffolding while building.


Case Sensitive, 'A' vs. 'a'

The chars 'A' and 'a' are two different characters. This is called "case sensitive" and is the default behavior in the computer.

>>> 'A' == 'a'
False
>>> s = 'red'
>>> s == 'red'
True
>>> s == 'Red'   # must match exactly
False

If we ask you to write some string code, and don't say anything about upper/lower case, assume it should be case-sensitive.

String Functions
s.upper() s.lower() s.isupper() s.islower()

>>> 'Kitten123'.upper()  # return with all chars in upper form
'KITTEN123'
>>> 'Kitten123'.lower()
'kitten123'
>>>
>>> 'a'.islower()
True
>>> 'A'.islower()
False
>>> 'A'.isupper()
True
>>> '@'.islower()
False
>>> 'a'.upper()
'A'
>>> 'A'.upper()
'A'
>>> '@'.upper()
'@'

Tricky: Immutable String Not Changed By Function Call

Recall - strings are "immutable", which means that once created they are not changed — no changing individual characters in the string and no adding or removing characters.

Suppose we have a variable storing a string: s = 'Hello'

Calling a function like s.upper() returns a new answer string, but the original string is always left unchanged. This is a very common point of confusion. The .upper() function is being called, so it's easy to get the impression that the string is changed.

alt: s points to 'Hello', s.upper() does not change s

Immutable String Examples

We can write code in the interpreter to see this immutable vs. function call in action.

>>> s = 'Hello'
>>> s.upper()    # Returns uppercase form of s
'HELLO'
>>>
>>> s            # Original s unchanged
'Hello'
>>>
>>> s + '!!!'    # Returns + form
'Hello!!!'
>>>
>>> s            # Original s unchanged
'Hello'
>>>

Working With Immutable String: x = change(x)

So how do you change a string variable? Each time we call a function to compute a changed string, use = to change the variable, say s, to point to the new string.

Say we have a string s, and want to change it to be uppercase and have '!!!' at its end. Here is code that works to change s:

>>> s = 'Kitten'
>>> s = s.upper()  # compute upper, assign back to s
>>> s
'KITTEN'
>>> s = s + '!!!'
>>> s
'KITTEN!!!'

Call this pattern: x = change(x)


What is Not Case-Sensitive

Computing something not case-sensitive means the logic treats uppercase and lowercase versions of a char as being equal. For example, searching for 'dog' in a web page, you would expect 'Dog' to count as a match. That's not case-sensitive logic.

Not Case-Sensitive Code

Example: only_ab()

only_ab(): Given string s. Return a string made of the 'a' and 'b' chars in s. The char comparisons should not be case sensitive, so 'a' and 'A' and 'b' and 'B' all count. Use the string .lower() function.

> only_ab()

Strategy: write the code using s[i].lower() to look at the lowercase form of each char in s.

only_ab(s) - v1 Case Sensitive

Here is the case-sensitive approach using boolean or, which detects lowercase 'a' and 'b'. Use this as a starting point.

def only_ab(s):
    result = ''
    for i in range(len(s)):
        if s[i] == 'a' or s[i] == 'b':
            result += s[i]
    return result

only_ab(s) - v2

Use s[i].lower() to use the lowercase forms. This version has some problems.

def only_ab(s):
    result = ''
    for i in range(len(s)):
        if s[i].lower() == 'a' or s[i].lower() == 'b':
            result += s[i].lower()
    return result

Debug-2 - Look At Output + code

Run v2 code above. Use Debug technique-2 - look at the output and the code that produced it.

In this case the output is like

only_ab('aABBccc') -> 'aabb'

expected output    -> 'aABB'

Look at the output.

Key question: Where does the output first go wrong? What line of the code produces that?

Look at that line of code. Think about how it could produce the observed output. Sometimes being directed to the right line is enough for you to see and fix the bug.


(later practice) alpha_up()

Here's another exercise involving upper/lower logic.

> alpha_up()

'12abc$z' -> 'ABCZ'

Given string s. Return a string made of all the alphabetic chars in s, converted to uppercase form.

Use string functions .isalpha() and .upper()


reversed() Function

The Python built-in reversed() function: return reversed form of a sequence such as from range().

Here is how reversed() alters the output of range():

          range(5) -> 0, 1, 2, 3, 4
reversed(range(5)) -> 4, 3, 2, 1, 0

This fits into the regular for/i/range idiom to go through the same index numbers but in reverse order:

for i in reversed(range(5)):
    # i in here: 4, 3, 2, 1, 0

For more detail, see the guide Python range()

The reversed() function appears in part of homework-3.


(optional) Reverse String

> reverse2()

Say we want to compute the reversed form of a string:

'Hello' -> 'olleH'

There are many ways to do this, and we might make a study of it later. Here is a plan for today:

Start with the regular double_char() code

def reverse2(s):
    result = ''
    for i in range(len(s)):
        result += s[i]
    return result

1. Change the for/i/range, adding reversed() and range(), so variable i now goes through: 4, 3, 2, 1, 0

2. Still use result += s[i] in the loop. Adds the last char 'o', then the next to last 'l', and so on since i is going 4..0.

Write the code with that plan, then see next section.

There's actually a whole section of reverse string problems we may play with later - trying out various techniques.

Reverse Debug with print()

Now we'll show Debug-3 technique: add print() inside the code temporarily to get visibility into what it's doing. This works on the experimental server and in Doctests. The printing will make the Doctests fail, so it should only be in there temporarily.

reverse2() Solution With print()

Here's the reverse2() code with print() added

def reverse2(s):
    result = ''
    for i in reversed(range(len(s))):
        result += s[i]
        print(i, s[i], result)
    return result

Heres's what the output looks like in the experimental server - it shows the formal result first, and the print() output below that. This is kind of beautiful, revealing what's going on inside the loop:

'olleH'

4 o o
3 l ol
2 l oll
1 e olle
0 H olleH

Debug-3 Add print() To Understand the Code

This is a more rarely used technique, but it can be very powerful.

Suppose you have a bug and the code is not computing what it's supposed to. First you just look at the output and try to just see what the bug is. Sometimes that is enough. In your mind, you are thinking about what s[i] is going to be for each loop - a thought experiment.

However if you are staring at the code and cannot figure out the bug, you could put some print() calls in there and it will show you exactly what s[i] is for each run of the loop. This can be very clarifying technique if you are not spotting the bug at first. Instead of using your brain to think what's going on with s[i], just let the computer do it.

This works with Doctests too - the printed output appears in the Doctest window. Unfortunately, the printed output interferes with the Doctest success/fail logic, causing it to always fail, even if the code is correct. So you can print() temporarily to see what's going on, but you need to remove it when you are done.


Today we will use this "movie" example and exercise: movie.zip

The movie-starter.py file is the code with bugs, and movie.py is a copy of that to work on, and movie-solution.py has the correct code.

Movie Project + Testing Themes

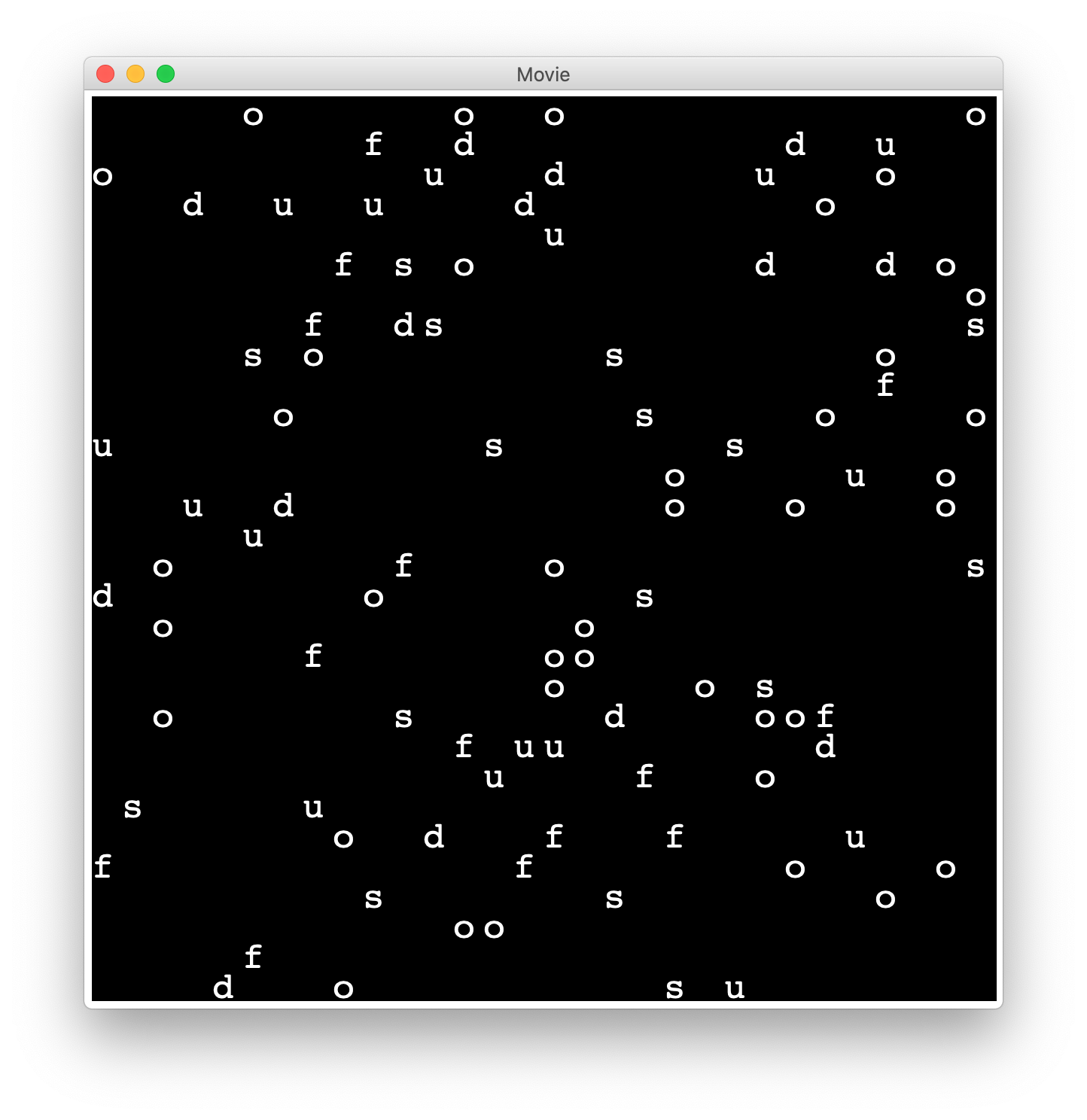

alt: movie output grid of letters

Recall: Grid

(optional) Basic Grid: set_edges()

Implement set_edges(), then write Doctests for it. We're not doing this in lecture, but it's an example.

def set_edges(grid):
    """
    Set all the squares along the left edge (x=0) to 'a'.
    Do the same for the right edge.
    Return the changed grid.
    """
    pass

Solution code:

...
    for y in range(grid.height):
        grid.set(0, y, 'a')               # left edge
        grid.set(grid.width - 1, y, 'a')  # right edge
    return grid

Q: How can we tell if that code works? With our image examples, at least you could look at the output, although that was not a perfect solution either. Really we want to be able to write test for a small case with visible data.

Doctest for set_edges()

Here's a visualization - before and after - of grid and how set_edges() modifies it.
alt: set_edges() grid before and after

Here are the key 3 lines added to set_edges() that make the Doctest: (1) build a "before" grid, (2) call fn with it, (3) write out the expected result of the function call

    ...
    >>> grid = Grid.build([['b', 'b', 'b'], ['x', 'x', 'x']])
    >>> set_edges(grid)
    [['a', 'b', 'a'], ['a', 'x', 'a']]
    ...

Run Doctest in PyCharm


How To Compute Random Numbers?

"Anyone who attempts to generate random numbers by deterministic means is, of course, living in a state of sin."
-John von Neumann (early CS giant)

Computing random numbers with a computer turns out to be a real problem.

Computer - Deterministic and Repeatable

A computer program is "deterministic" - each time you run the lines with the same input, they do exactly the same thing.

>>> x = 6
>>>
>>> x = x + 1
>>> x
7
>>>

Every time the code runs, the answer is the same.

Repeatable - on a related note, our black-box functions are "repeatable" - calling a function with the same input returns the same output every time. e.g. 'hello'.upper() -> 'HELLO'

Pseudo Random Numbers

Creating random numbers with deterministic code and inputs is impossible, so we settle for pseudo random numbers. These are numbers which are statistically random looking, but in fact are generated by a deterministic algorithm producing each "random" number in turn. Running the algorithm with the same inputs will yield the same "random" series of numbers again.

Aside: it is possible to create true random numbers by measuring a random physical process - getting the randomness from outside the determinism of the computer. Someday I would like to run a seminar where we build such a device as a project.

Aside: How To Get an Interpreter >>>

For more details, see the Python Guide Interpreter chapter

Ways to get an interpreter (apart from the experimental server)

1. With an open PyCharm project, click the "Python Console" button at the bottom .. that's an interpreter.

2. In the command line for your computer, type "python3" ("py" on Windows), and that runs the interpreter directly. Use ctrl-d (ctrl-z on windows) to exit.

Keep in mind that there are two different places where you type commands - your computer command line where you type commands like "date" or "pwd". Then there's the Python interpreter with the >>> prompt where you type python expressions.

The Random Module

Try random module in the "Python Console" tab at the lower-left of your PyCharm window to get an interpreter. This won't work right in the experimental server interpreter, so try PyCharm.

>>> import random   # hw3 starter code has this already
>>>
>>> random.randrange(10)
1
>>> random.randrange(10)
3
>>> random.randrange(10)
9
>>> random.randrange(10)
1
>>> random.randrange(10)
8
>>> random.choice('doofus')
'o'
>>> random.choice('doofus')
'u'
>>> random.choice('doofus')
'o'
>>> random.choice('doofus')
'o'
>>> random.choice('doofus')
's'
>>> random.choice('doofus')
's'
>>> random.choice('doofus')
'o'
>>> random.choice('doofus')
's'

Example: random_right() Function

The code for this one is provided to fill in letters at the right edge, so we'll just look at it. Demonstrates some grid code for the movie problem. We're not testing this one - testing random behavior is a pain, although it is possible.

def random_right(grid):
    """
    Set the right edge of the grid to some
    random letters from 'doofus'.
    (provided)
    """
    for y in range(grid.height):
        if random.randrange(10) == 0:  # 10% of the time
            ch = random.choice('doofus')
            grid.set(grid.width - 1, y, ch)
    return grid

scroll_left(grid)

scroll_left() - What We Want

Think about scroll_left()
alt: 'a b c' top row, move the b and c each one to the left, don't move the a

scroll_left() v1 Plan

scroll_left() v1 with bugs

def scroll_left(grid):
    """
    Implement scroll_left as in lecture notes.
    """
    # v1 - has bugs
    for y in range(grid.height):
        for x in range(grid.width):
            # Move letter at x,y leftwards
            ch = grid.get(x, y)
            if ch != None and grid.in_bounds(x - 1, y):
                grid.set(x - 1, y, ch)
    return grid

Run v1 GUI

Make Test Case - Input and Expected

Need concrete cases to write Doctest. They can be small! An input grid, and the expected output grid. That's what makes one test case - an input and expected. We could also call these "before" and "after" pictures.

Doctest input grid (before)
alt: top row is a b c

[['a', 'b', 'c'], ['d', None, None]]



Doctest expected grid (after)
alt: top row is b c None

[['b', 'c', None], [None, None, None]]

Debug scroll_left() With Doctests

Run the Doctest to debug the code.

def scroll_left(grid):
    """
    Implement scroll_left as in lecture notes.
    >>> grid = Grid.build([['a', 'b', 'c'], ['d', None, None]])
    >>> scroll_left(grid)
    [['b', 'c', None], [None, None, None]]
    """

Here is the failed Doctest, compare output to expected:

Expected:
    [['b', 'c', None], [None, None, None]]
Got:
    [['b', 'c', 'c'], ['d', None, None]]

See that v1 fails to erase where the 'c' moved from.

Debug scroll_left()

How do you debug a function? Run its small, frozen, visible Doctests, look at the output, expected and the code - all of which the Doctest makes visible.

scroll_left() Solution

Here is the code with bugs fixed and the Doctest now passes.

def scroll_left(grid):
    """
    Implement scroll_left as in lecture notes.
    >>> grid = Grid.build([['a', 'b', 'c'], ['d', None, None]])
    >>> scroll_left(grid)
    [['b', 'c', None], [None, None, None]]
    """
    for y in range(grid.height):
        for x in range(grid.width):
            # Move letter at x,y leftwards
            val = grid.get(x, y)
            if val != None and grid.in_bounds(x - 1, y):
                grid.set(x - 1, y, val)
            grid.set(x, y, None)
    return grid

Run Movie

$ python3 movie.py
$
$ python3 movie.py 80 40  # bigger window

Key Lesson - Doctest output/expected/code

To debug, we want output which is: small, frozen, and visible

The Doctest gives us exactly this.

Looking at the failing Doctest, we have output the expected and the code - looking at these three is a good step for debugging.

The failing Doctest is like a to-do item, giving us the next thing to work on plus the data we need.

Note also that the data for the Doctest case is small and made visible by the system. It's not moving around. We can take our time. Contrast this to watching the animation.

Other Doctest Observations

Demo: HW3 Sand Program
