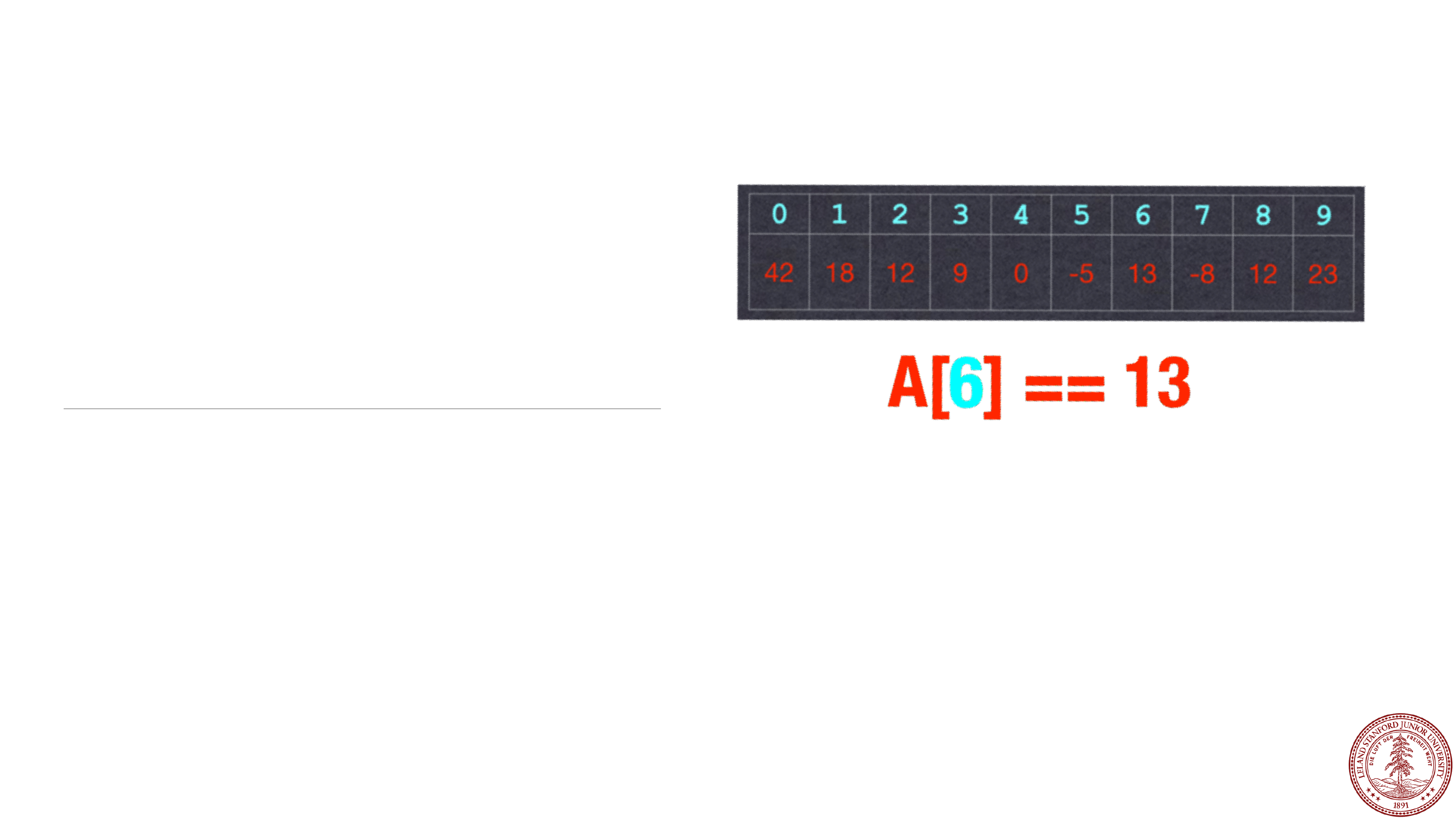

Array with the elements 42, 18, 12, 9, 0, -5, 13, -8, 12, 23. Then A[6] == 13

Friday, February 17, 2022
Computer Systems
Winter 2022
Stanford University
Computer Science Department
Reading: Course Reader: x86-64 Assembly
Language, Textbook: Chapter 3.1
-
3.4
Lecturer: Chris Gregg
CS 107
Lecture 13:
Assembly Part IV
0x40055d <val_at_index> movslq %esi,%rsi
0x400560 <val_at_index+3> mov (%rdi,%rsi,4),%eax
0x400563 <val_at_index+6> retq
