Clustering
As in classification , we assign a class to each sample in the data matrix. However, the class is not an output variable ; we only use input variables.
Clustering is an unsupervised procedure, whose goal is to find homogeneous subgroups among the observations.
\(K\) -means clustering\[\min_{C_1,\dots,C_K} \sum_{\ell=1}^K W(C_\ell) , \qquad W(C_\ell) = \frac{1}{|C_\ell|}\sum_{i,j\in C_\ell} \text{Distance}^2(x_{i,:},x_{j,:}).\]
palmitic palmitoleic stearic ... linolenic arachidic eicosenoic
0 1075 75 226 ... 36 60 29
1 1088 73 224 ... 31 61 29
2 911 54 246 ... 31 63 29
3 966 57 240 ... 50 78 35
[4 rows x 8 columns]
= KMeans(n_clusters= 3 )= km.fit_predict(oliveoil)

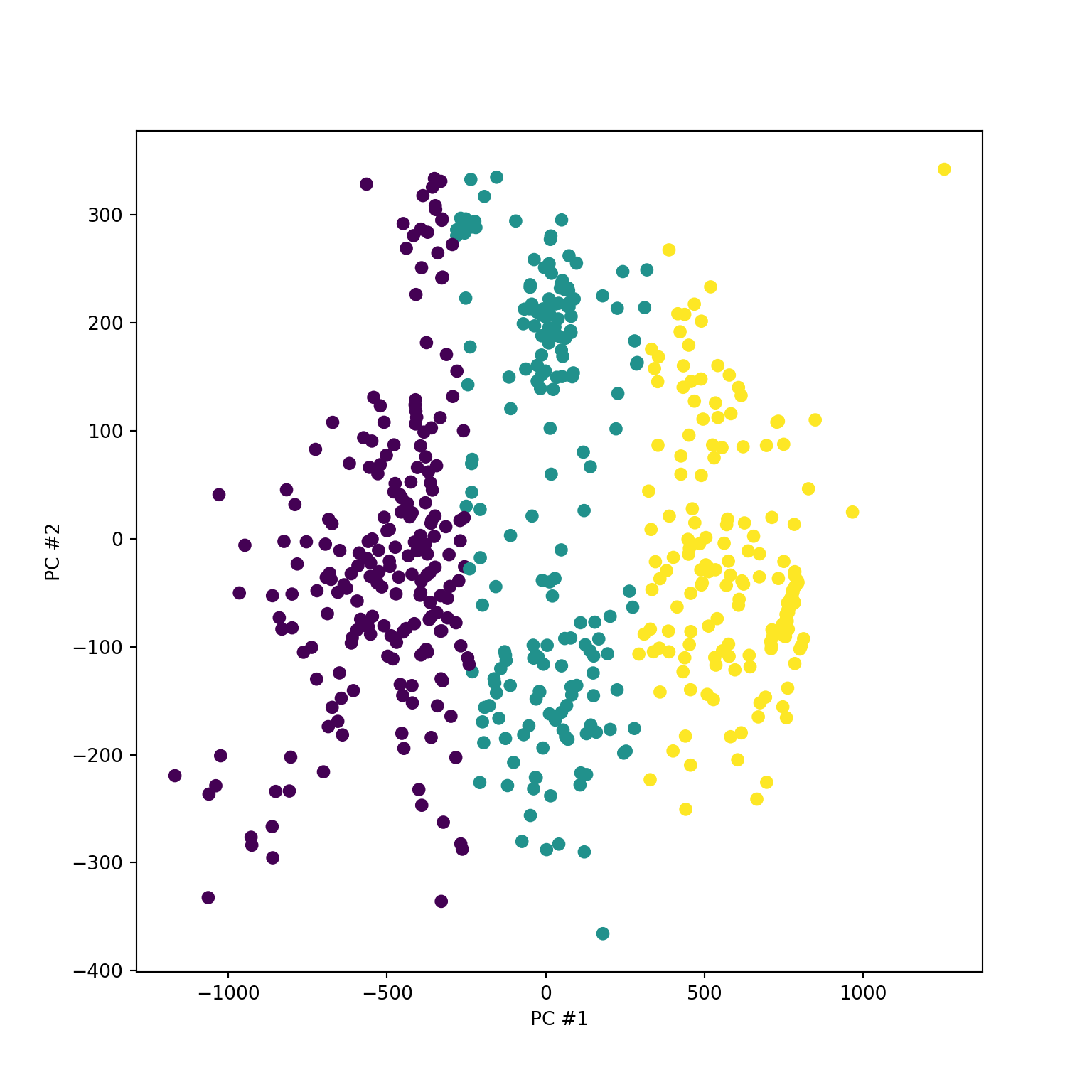

Without scaling

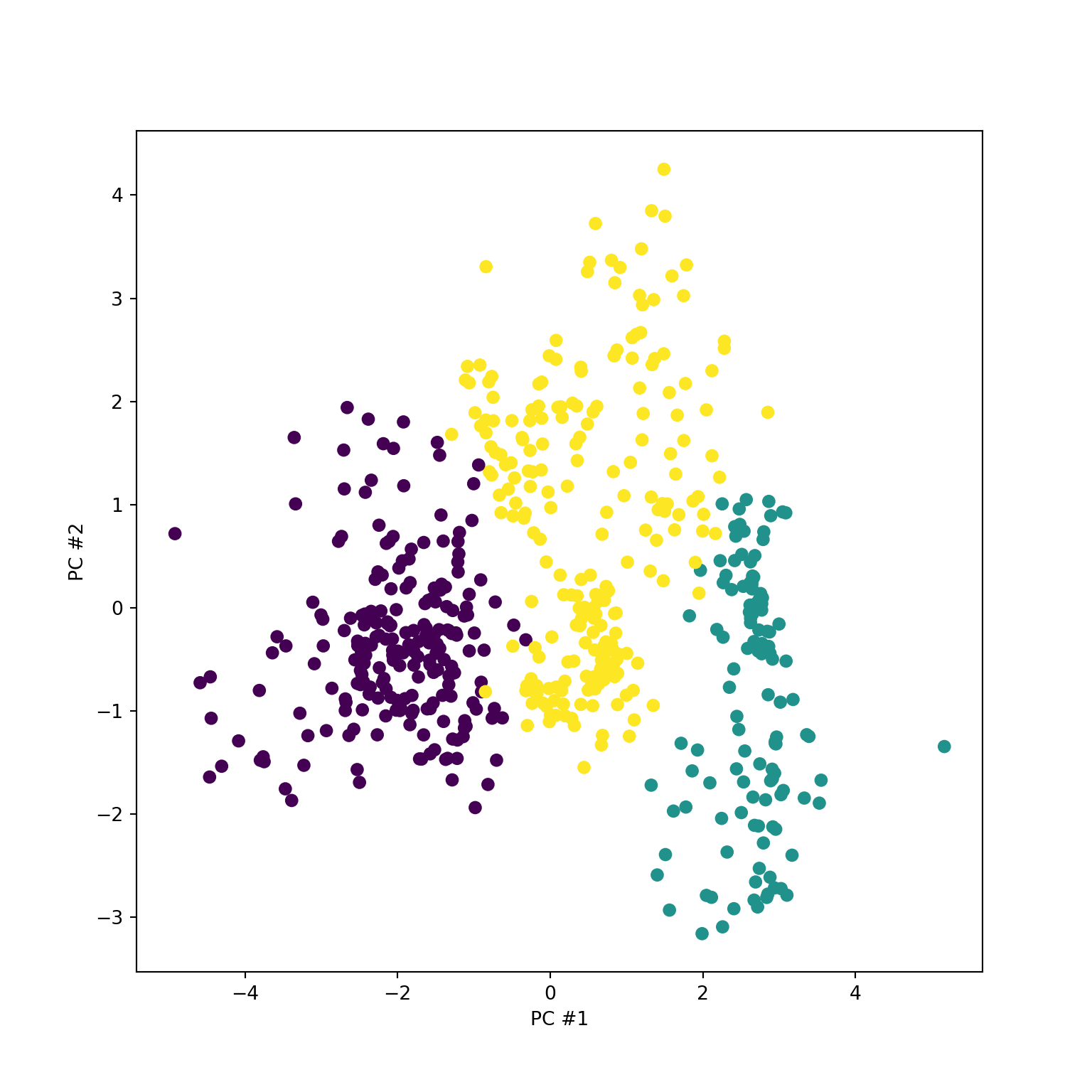

With scaling

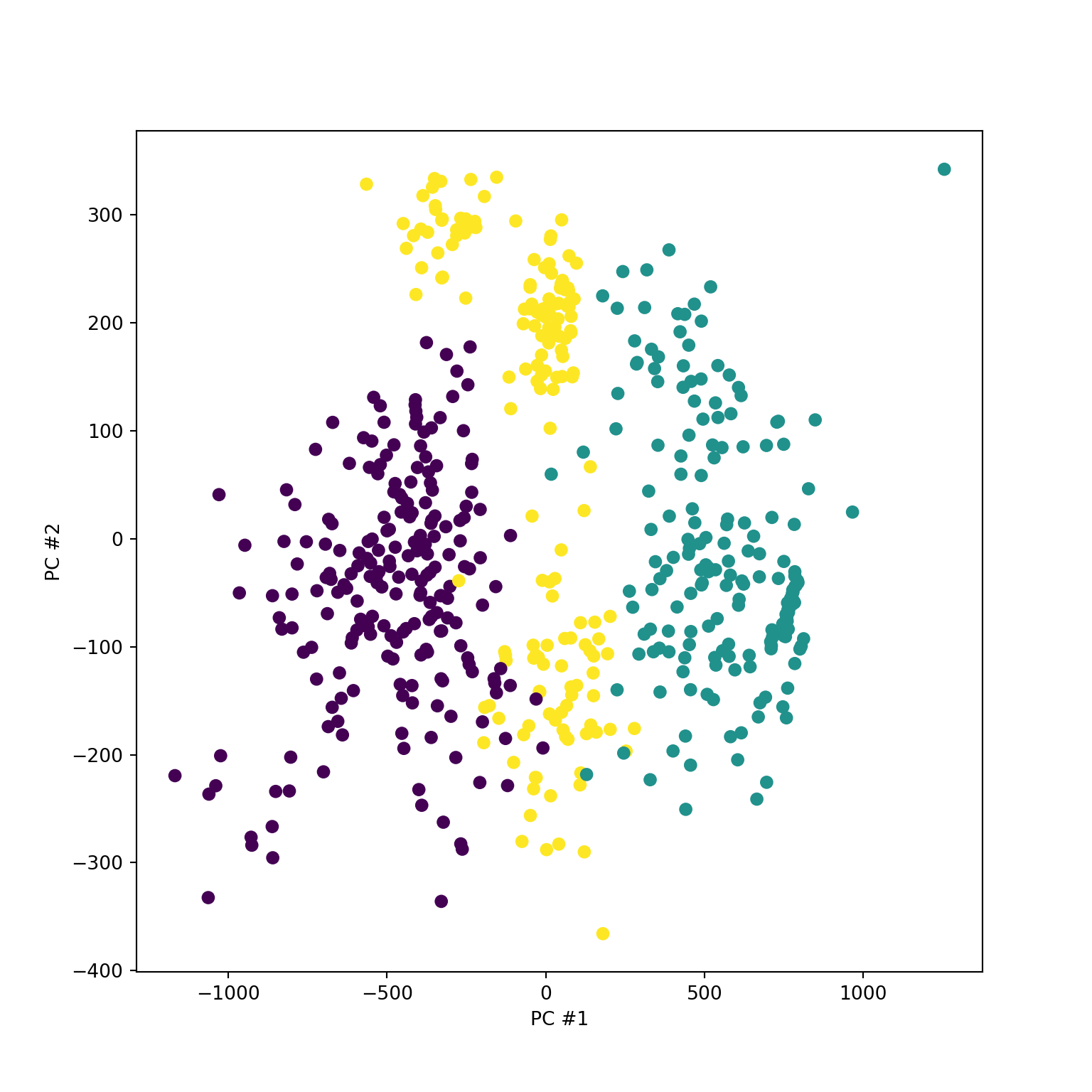

\(K\) -means output with different initializations
In practice, common to start from many random initializations and choose the output which minimizes the objective function.
Choosing the number of clusters: gap statistic
Basic idea: after we have discovered all the clusters, the drop in sums of squares will be similar to drops on “null” data.
Requires a model for “null data”: \(N(0, I)\) ? Unif\(([-1,1]^p)\) ?
Choosing the number of clusters: gap statistic
\[
K^* = \text{argmin}_K \left\{K:G(K+1) \geq G(K) + SD_{K+1}\right\}
\]
with \(SD_{K+1}\) some estimate of the SD.
Variants
SpectralClustering = Pipeline([('embed', SpectralEmbedding(n_components=3)),
('clust', KMeans(n_clusters=5))])
Mixture modeling
A soft clustering algorithm.
Within class model \(f_j(X;\theta_j), 1 \leq j \leq K\) .
As it is a generative model we have a likelihood we can use for choosing \(K\) by BIC / AIC, etc.
Corresponds to hierarchical model with latent labels \(Z\) :
\[
\begin{aligned}
Z_i &\sim \text{Multinomial}(\pi) \\
X_i | Z_i=j &\sim f_j(\cdot, \theta_j)
\end{aligned}
\]
Fit by well-known EM algorithm.
EM steps
E-step: given current values \(\tilde{\Theta}=(\tilde{\theta}_1, \dots, \tilde{\theta}_K, \tilde{\pi}_1, \dots, \tilde{\pi}_K)\)
\[
\begin{aligned}
\hat{\gamma}_{ij} &=
\hat{\gamma}_{ij}(X_i;\tilde{\Theta}) \\
&= P_{\tilde{\theta}}(Z_i=j|X=X_i) \\
&= \frac{\tilde{\pi}_j f_j(X_i;\tilde{\theta}_j)}{\sum_{l=1}^k \tilde{\pi}_l f_l(X_i; \tilde{\theta}_l)}\\
\end{aligned}
\]
M-step (when no constraints on \(\theta_j\) i.e. not shared across components):
\[
\begin{aligned}
\hat{\pi}_j &= \frac{1}{n} \sum_{i=1}^n \hat{\gamma}_{ij} \\
\hat{\theta}_j &= \text{argmax}_{\theta_j} \sum_{i=1}^n \hat{\gamma}_{ij} \ell_j(X_i; \theta_j)
\end{aligned}
\]
Choices to be made for mixture
We must choose a \(K\) (BIC / AIC?)
If \(f(\cdot, \theta_j) = N(\mu_j, \Sigma_j)\) we still need to choose a model for \(\Sigma_j\) between and within classes.
Between classes: typically choice is common or class-specific covariance?
If the same, update for \(\Sigma=\Sigma_j\) is a pooled estimate of covariance with weights…
Responsibilities \(\widehat{\gamma}_j\) can replace \(K\) -means’ classification rule as features…
Relation with \(K\) -means
If we stick with common covariance \(\sigma^2 I\) and send \(\sigma^2 \to 0\) , we see
\[
\hat{\gamma}_{ij}(X;\tilde{\Theta}) \to \delta_{\hat{j}(X_i)}
\]
with
\[
\hat{j}(X_i) = \text{argmin}_j \|X_i - \mu_j\|^2_2
\]
Model-based clustering
from sklearn.mixture import GaussianMixture= GaussianMixture(n_components= 3 , covariance_type= 'diag' )= GMM.fit_predict(oliveoil)= GMM.predict_proba(oliveoil)
Using GaussianMixture to cluster
\(K\) -medoid clustering
\(K\) -means / Gaussian mixture models produce centroids that “represent” each cluster as a prototype.
Both rely on Euclidean structure in order to compute centroids: they are (weighted) class averages…
\(K\) -medoid chooses instead a sample point as the prototype: given cluster \(\{X_j:j \in C\}\) and metric \(d\) the medoid is
\[
i^*_C = \text{argmin}_{j \in C} \sum_{i \in C} d(X_i, X_j)
\]
Assignment step is the same as \(K\) -means.
Some variants of the assignment / swap step that are not exactly like \(K\) means (I believe these variants are used by pam below).
In Euclidean case, said to be more robust because we use norms instead of squared norms.
from sklearn_extra.cluster import KMedoids
Clustering is completely determined by initial distance (or dissimilarity) matrix and the choice of dissimilarity between clusters.

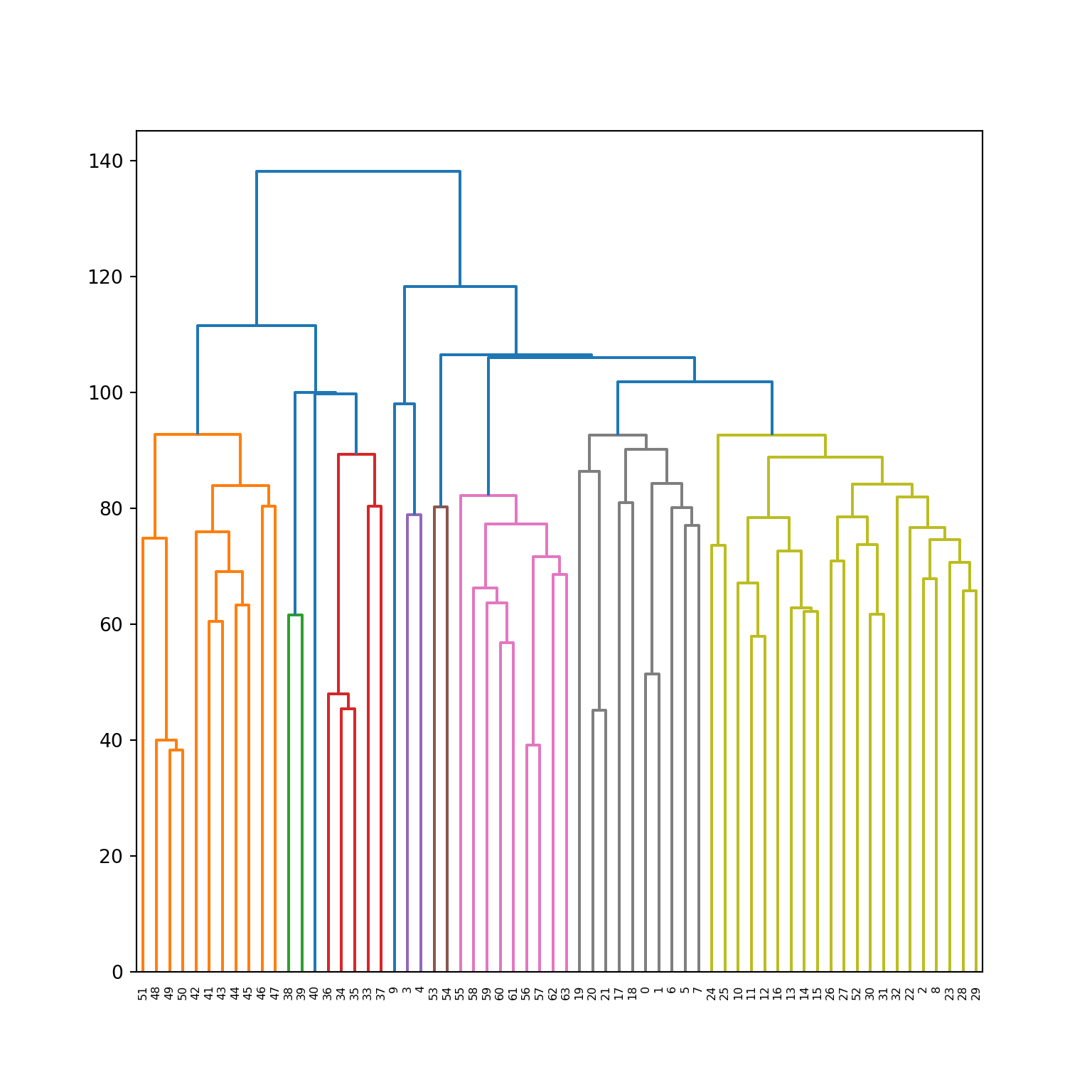

The number of clusters is not fixed: each cut of the dendrogram induces a clustering.
At each step, we link the 2 clusters that are closest (least dissimilar) to each other.
Hierarchical clustering algorithms are classified according to the notion of distance between clusters.
Complete linkage: The distance between 2 clusters is the maximum distance between any pair of samples, one in each cluster.
Single linkage: The distance between 2 clusters is the minimum distance between any pair of samples, one in each cluster.
Single linkage suffers from the chaining phenomenon .
Single linkage enjoys a continuity property the others are not known to.
Average linkage: The distance between 2 clusters is the average of all pairwise distances.
= AgglomerativeClustering(distance_threshold= 0 ,= None ,= 'complete' ); = compute_linkage(hclust);

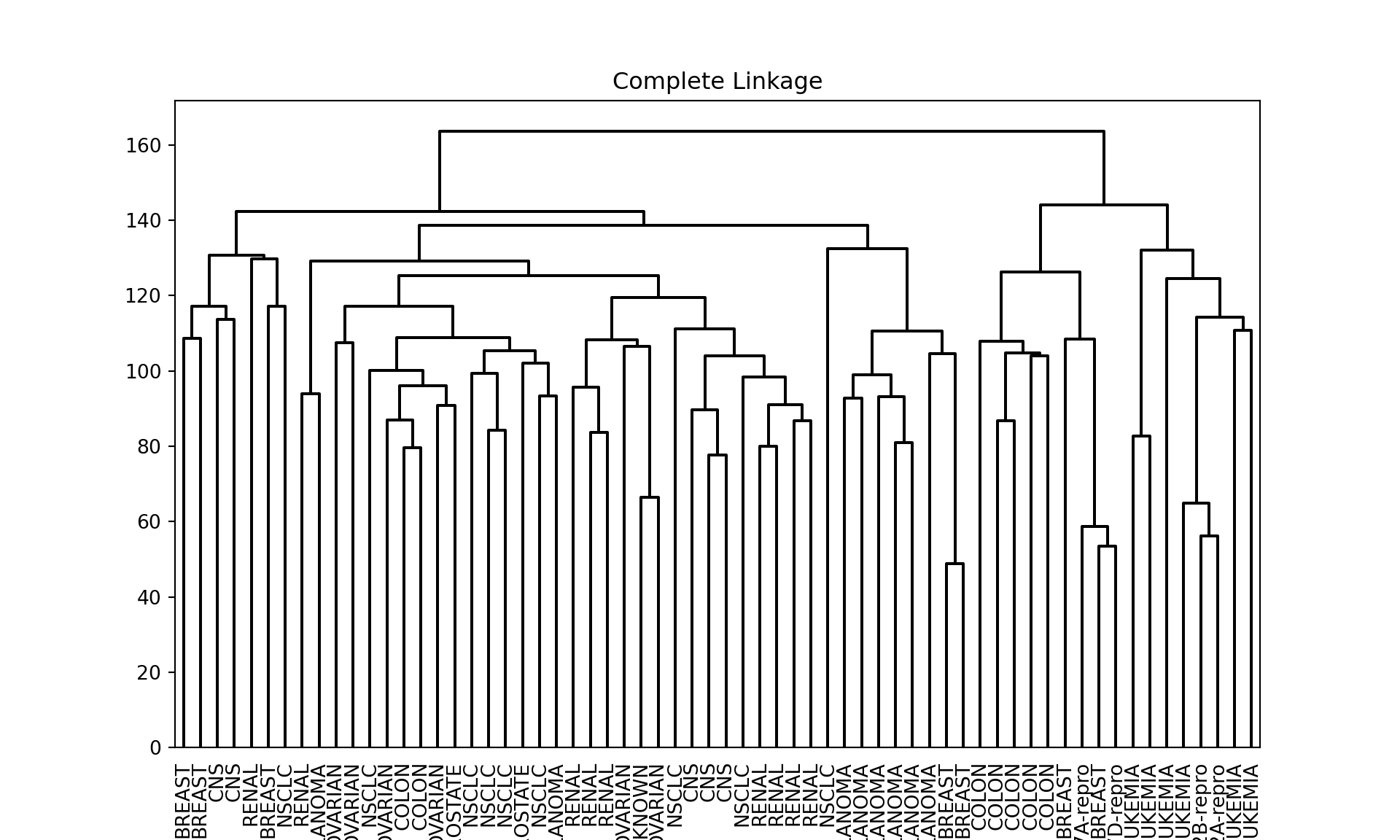

Complete linkage

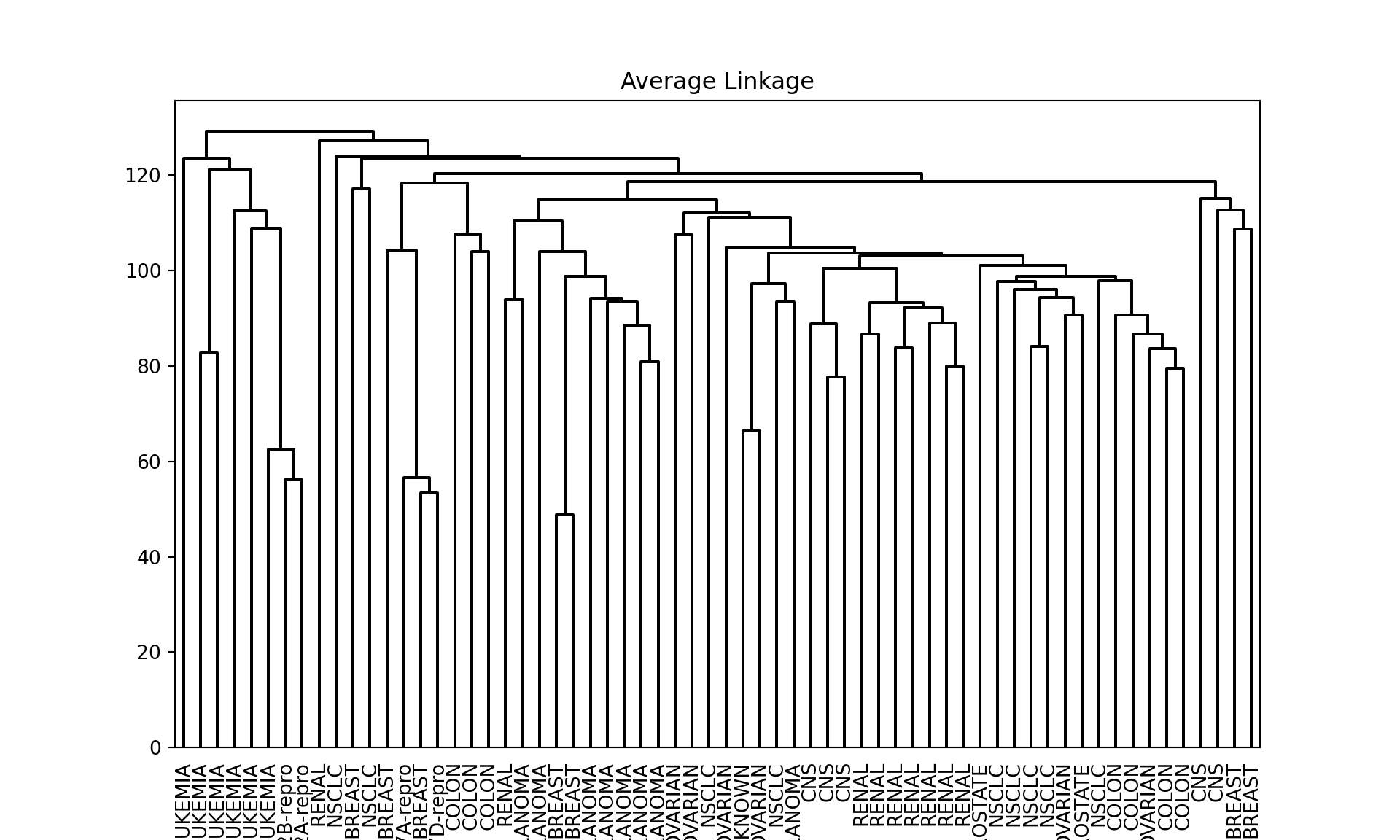

Average linkage

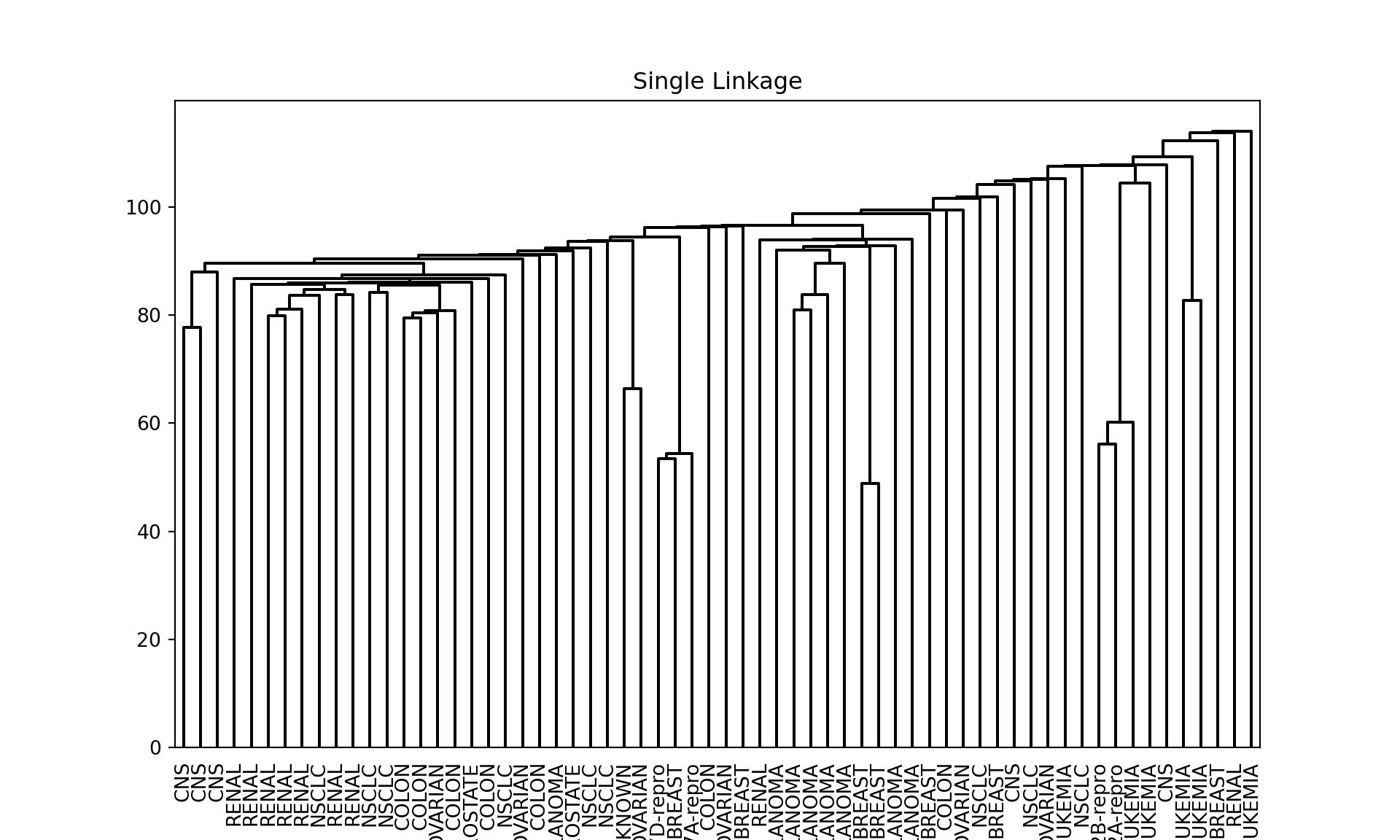

Single linkage
Choices to make
Because it is so general, there are many choices to make in hierarchical clustering.
Choice of initial dissimilarity matrix is obviously important: e.g. do we measure distance modulo scale?
\[
d_{ij} = \|X_i - X_j\|_2, \qquad \tilde{d}_{ij}=\cos^{-1}\left(\frac{X_i^TX_j}{\|X_i\|_2 \|X_j\|_2} \right) ?
\]
Choice of linkage also clearly makes a difference.
Some properties of hierarchical clustering
Single, complete and average linkage have no inversions : heights when parents are merged are higher than any of their children.
Both single and complete are monotone : monotone transformations of the distances do not change structure of the trees. Not necessarily true for average linkage.
Both single and complete ignore duplicates : duplications of points do not change the structure of the true – many merges happen at height 0. Not necessarily true for average linkage.
Hierarchical clustering with prototypes: minimax linkage
One of the nice features about \(K\) -means / \(K\) -medoids / mixture modeling is that each cluster has a simple representative : \(\implies\) useful for downstream tasks…
Bien and Tibshirani consider a different dissimilarity between clustering: minimax linkage
Based on
\[
\begin{aligned}
d_{\max}(x,C) &= \max_{y \in C} d(x,y) \\
r(C) &= \min_{x \in C} d_{\max}(x,C)
\end{aligned}
\]
with the minimizer in determining \(r(C)\) the prototype for \(C\) .
Dissimilarity between clusters \[
D(G,H) = r(G \cup H)
\]
This linkage is monotone , ignores density and has no inversions .
