Validation of fls_H2_1_14

Thermodynamic conditions

• Temperature, $T$: 298.0 K
• Pressure, $p$ : 1.0 atm
• Equivalence Ratio, $\phi$: 3.0
• Mixture Composition, $X$: 55.76% H2-9.29% O2-34.94% N2

Experimental measurement

• Source: experimental data from TZL2000, AHF1997, VEL1994, THJ2008, HHH2009, BLL2007, LDP2003, T1991, HZZ2006
• Data type: Laminar flame speed
• Experimental method: FFCM1FLS
• Experimental value: 213.25 cm/s
• Experimental uncertainty: $\pm$ 11.06 cm/s

Model predictions

Trial model prediction: 219.08 cm/s

Trial model uncertainty: $\pm$ 9.96 cm/s

Optimized model prediction: 222.73 cm/s

Optimized model uncertainty: $\pm$ 3.18 cm/s

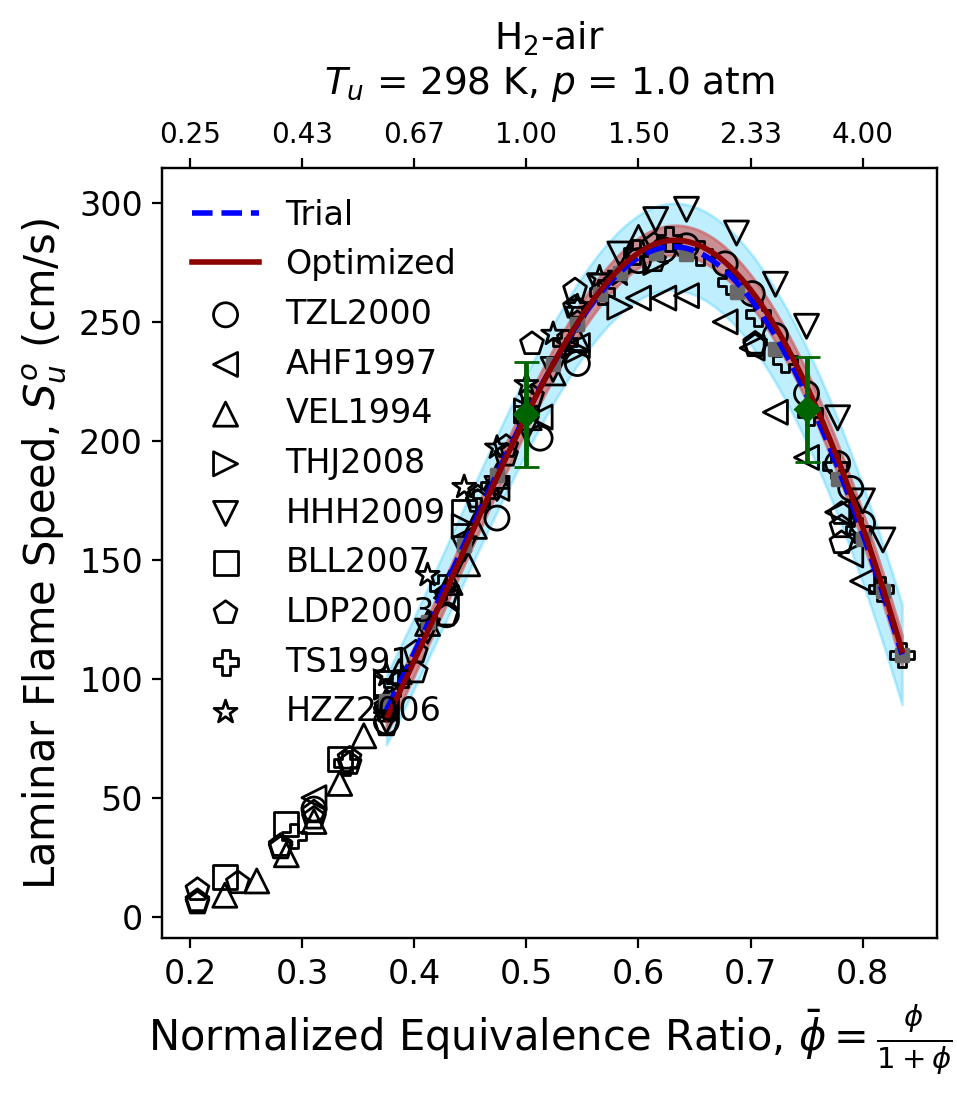

FFCM-2 performance

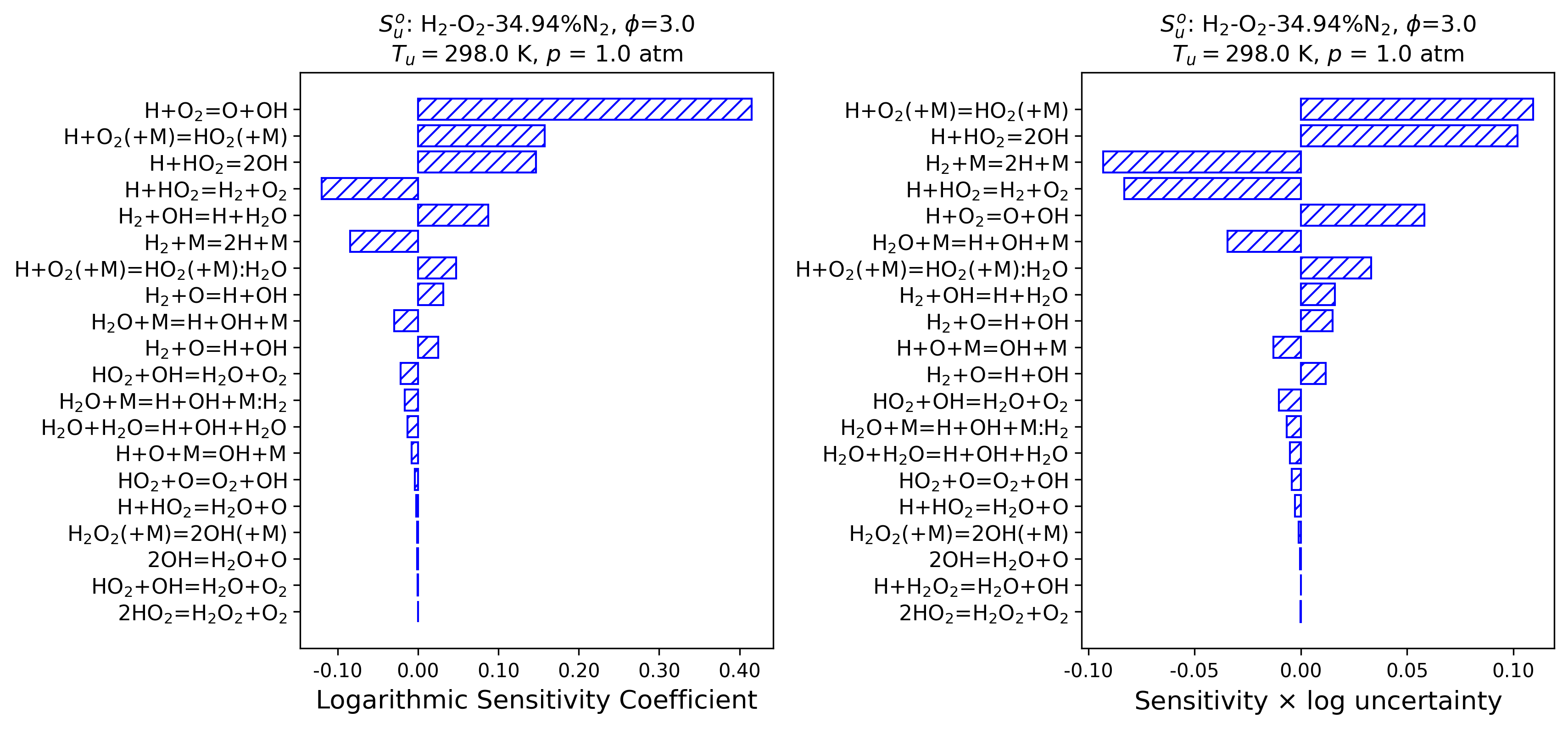

Sensitivity and impact factor

Reference

TZL2000 - Tse, S. D., Zhu, D. L., & Law, C. K. (2000). Morphology and burning rates of expanding spherical flames in H2/O2/inert mixtures up to 60 atmospheres. Proceedings of the Combustion Institute, 28, 1793–1800.
AHF1997 - Aung, K. T., Hassan, M. I., & Faeth, G. M. (1997). Flame stretch interactions of laminar premixed hydrogen/air flames at normal temperature and pressure. Combustion and Flame, 109, 1–24.
VEL1994 - Vagelopoulos, C. M., Egolfopoulos, F. N., & Law, C. K. (1994). Further considerations on the determination of laminar flame speeds with the counterflow twin-flame technique. Symposium (International) on Combustion, 25, 1341–1347.
THJ2008 - Tang, C., Huang, Z., Jin, C., He, J., Wang, J., Wang, X., & Miao, H. (2008). Laminar burning velocities and combustion characteristics of propane--hydrogen--air premixed flames. International Journal of Hydrogen Energy, 33, 4906–4914.
HHH2009 - Hu, E., Huang, Z., He, J., Jin, C., & Zheng, J. (2009). Experimental and numerical study on laminar burning characteristics of premixed methane--hydrogen--air flames. International Journal of Hydrogen Energy, 34, 4876–4888.
BLL2007 - Bradley, D., Lawes, M., Liu, K., Verhelst, S., & Woolley, R. (2007). Laminar burning velocities of lean hydrogen--air mixtures at pressures up to 1.0 MPa. Combustion and Flame, 149, 162–172.
LDP2003 - Lamoureux, N., Djeba\\"ili-Chaumeix, N., & Paillard, C. E. (2003). Laminar flame velocity determination for H2--air--He--CO2 mixtures using the spherical bomb method. Experimental Thermal and Fluid Science, 27, 385–393.
T1991 - Taylor SC. (1991). Burning velocity and the influence of flame stretch.
HZZ2006 - Huang, Z., Zhang, Y., Zeng, K., Liu, B., Wang, Q., & Jiang, D. (2006). Measurements of laminar burning velocities for natural gas--hydrogen--air mixtures. Combustion and Flame, 146, 302–311.

---
