Validation of ign_IC4H10_1_7

Thermodynamic conditions

• Temperature, $T$: 1363.0 K
• Pressure, $p$ : 2.02 atm
• Equivalence Ratio, $\phi$: 0.722
• Mixture Composition, $X$: 1.00% IC4H10-9.00% O2-90.00% AR

Experimental measurement

• Source: experimental data from ONM2007
• Data type: Shock tube ignition delay measurement
• Experimental method: max OH*
• Experimental value: 565.0 $\mu s$
• Experimental uncertainty: $ \times / \div$ 1.49

Model predictions

Trial model prediction: 734.53 $\mu s$

Trial model uncertainty: $ \times / \div$ 1.16

Optimized model prediction: 570.82 $\mu s$

Optimized model uncertainty: $ \times / \div$ 1.09

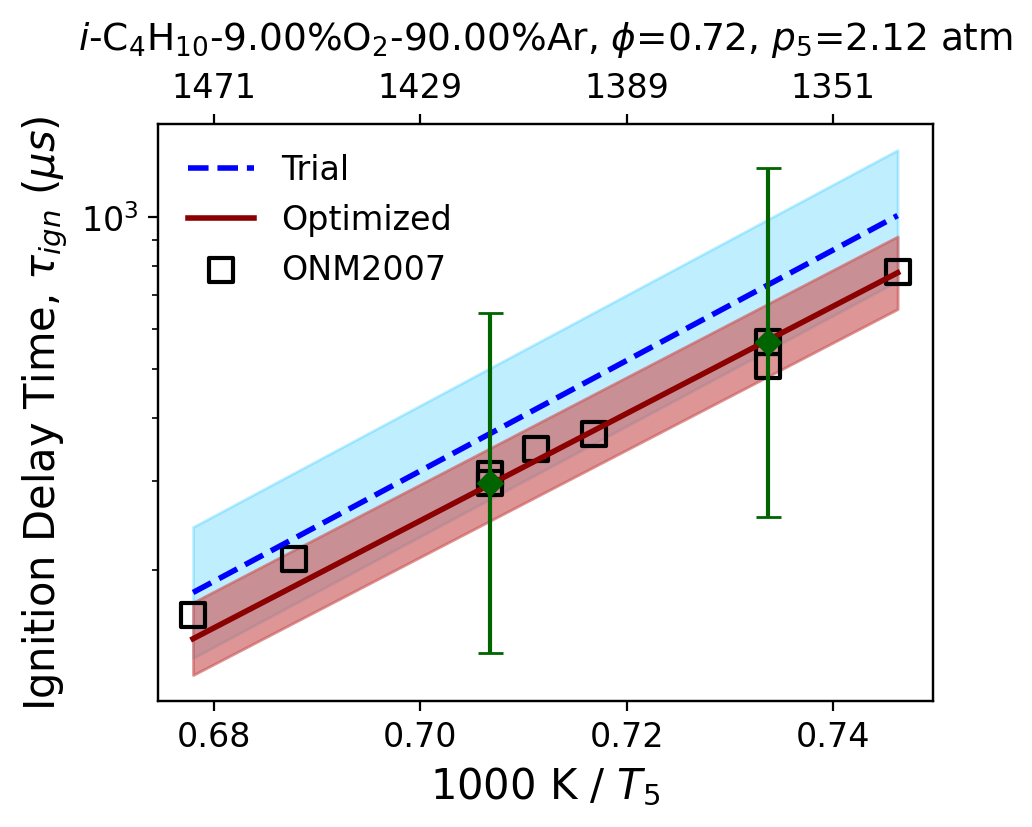

FFCM-2 performance

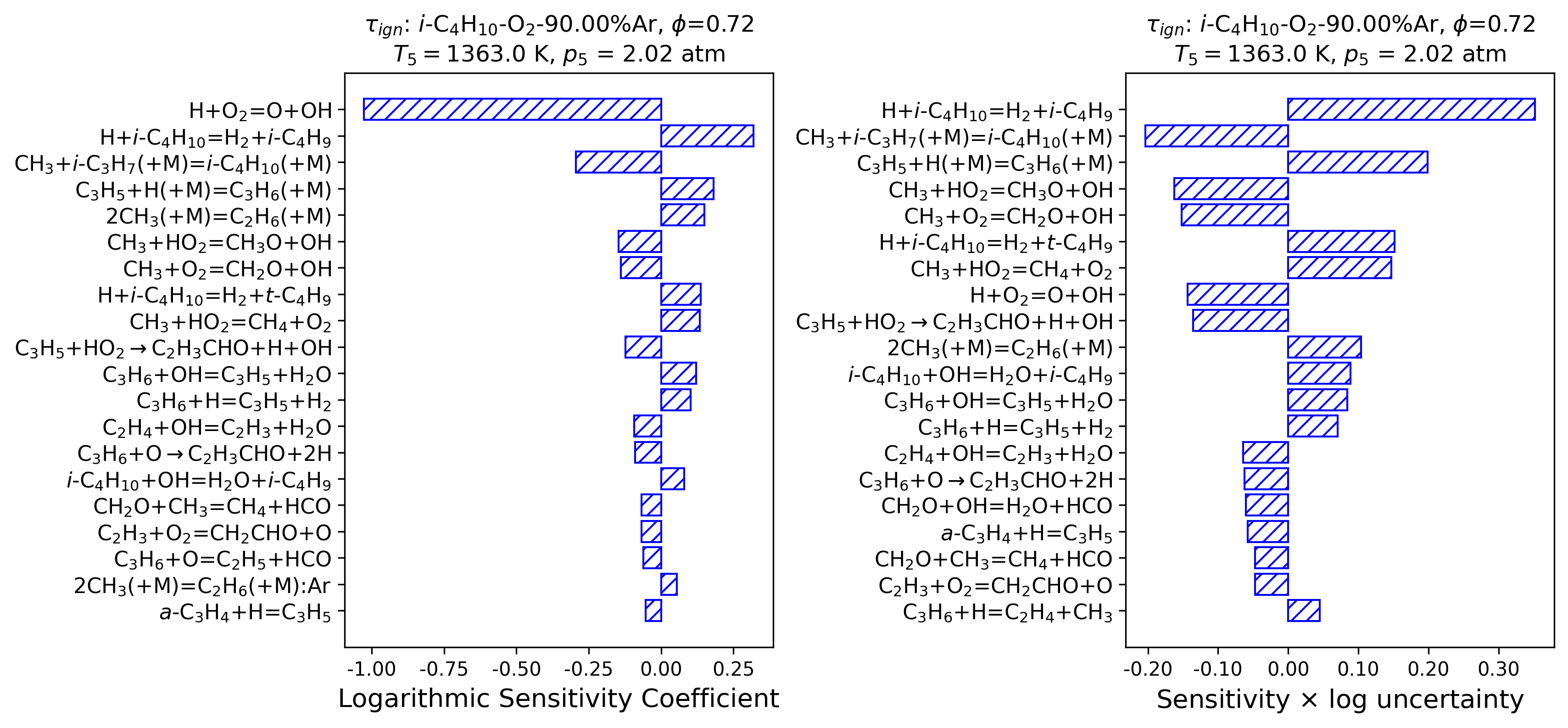

Sensitivity and impact factor

Reference

ONM2007 - Ogura, T., Nagumo, Y., Miyoshi, A., & Koshi, M. (2007). Chemical kinetic mechanism for high temperature oxidation of butane isomers. Energy & Fuels, 21, 130–135.

---
