The Blasinski implementation of barrel distortion removal
The barrel distortion is removed in two ways:
1. A common polynominal approach. (<http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=351044 Shah et. al. 1994> ) 2. A hardware implementation friendly coefficient method. (<http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=6011854&tag=1 Blasinski et al. ICME 2011>)
Henryk Blasinski and BW 2012
Contents
ieInit
Create a scene of grid line
scene = sceneCreate('gridlines',[512 512], 48); scene = sceneInterpolateW(scene,(450:100:650)); % Small wavelength sample scene = sceneSet(scene,'hfov',45); scene = sceneSet(scene,'name','rtDemo-Large-grid'); % Show the grid line scene ieAddObject(scene); sceneWindow;

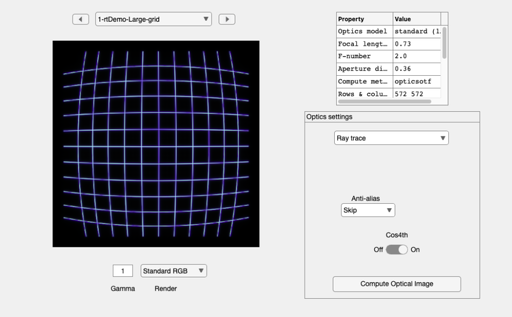

Compute irradiance through a wide angle lens
% Set up default optical image oi = oiCreate; % Load in the wide angle lens optics file created by Zemax (zm) opticsFileName = fullfile(isetRootPath,'data','optics','zmWideAngle.mat'); load(opticsFileName,'optics'); % Set the oi with the optics loaded from the file oi = oiSet(oi,'optics',optics); % Retrieve it and print its name to verify and inform user optics = oiGet(oi,'optics'); fprintf('Ray trace optics: %s\n',opticsGet(optics,'lensFile')); % Now, match the scene properties oi = oiSet(oi,'wangular',sceneGet(scene,'wangular')); oi = oiSet(oi,'wave',sceneGet(scene,'wave')); % Match the scene distance and the rt distance. They are both essentially % infinite. scene = sceneSet(scene,'distance',2); % Two meters - essentially inf optics = opticsSet(optics,'rtObjectDistance',sceneGet(scene,'distance','mm')); oi = oiSet(oi,'optics',optics); oi = oiSet(oi,'optics model','ray trace'); % ieSessionSet('waitbar','on') oi = oiCompute(oi,scene); ieAddObject(oi); oiWindow;
Ray trace optics: wideAngle.zmx Geometric distortion ... Caution: polyfit deg reduced to 6. Caution: polyfit deg reduced to 6. Caution: polyfit deg reduced to 6. Pre-computing PSFs...Setting up for scene rtDemo-Large-grid Eccentricity bands: 0.000 (um) Eccentricity bands: 87.491 (um) Eccentricity bands: 174.981 (um) Eccentricity bands: 262.472 (um) Eccentricity bands: 349.962 (um) Eccentricity bands: 437.453 (um) PSF sample grid: 54 by 54 Done precomputing PSFs. Applying PSFs. 6 eccentricity bands Done applying PSFs.
Correct the distorted image
Corrected = opticsGet(optics,'rtgeomfieldheight','mm'); CorrectedMax = opticsGet(optics,'rtgeommaxfieldheight','mm'); % The distortion function depends on the wavelength, here we are somewhat % randomly selecting the middle wavelengths distortion curve. DistWavelengths = opticsGet(optics,'rtgeomwavelength'); Distorted = opticsGet(optics,'rtgeomfunction',DistWavelengths(2),'mm'); % Compute a 2nd order polynominal approximation polycoefs = polyfit(Corrected,Distorted,2); % Plot the approximation for 100 equally spaced sample points CorrImHeight = linspace(0,CorrectedMax,100); DistImHeight = polyval(polycoefs,CorrImHeight); vcNewGraphWin; plot(Corrected,Distorted,'x','LineWidth',2); hold on; plot(CorrImHeight,DistImHeight,'g'); xlabel('Corrected image height, mm'); ylabel('Distorted image height, mm'); title('Lens distortion curves'); legend('Measured','2^{nd} order approx.');

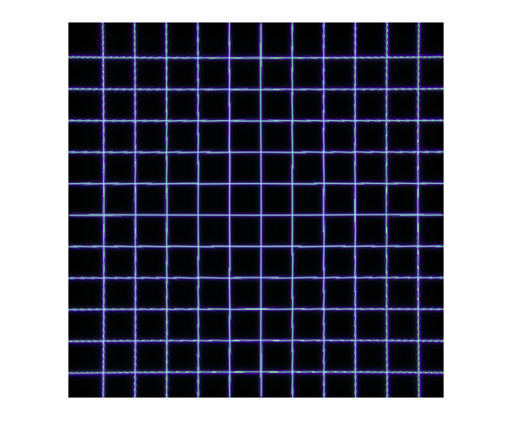

Remove the barrel distortion from the optical image
imgRows = oiGet(oi,'rows'); imgCols = oiGet(oi,'cols'); % Compute the width and height of a pixel in mm. imgDistance = oiGet(oi,'distance per sample','mm'); pxH = imgDistance(1); pxW = imgDistance(2); Center = oiGet(oi,'centerpixel'); yc = Center(1); xc = Center(2); DistortedImage = oiGet(oi,'rgb image',0.6); CorrectedImage = zeros(imgRows,imgCols,3); h = waitbar(0,'Correcting distortion'); for y=1:imgRows waitbar(y/imgRows,h); for x=1:imgCols % Compute pixel coordinates in mm: xx = (x-xc)*pxW; yy = (y-yc)*pxH; % Compute the azimuth angle, consider a separate case when theta=90 % degrees if xx~=0 theta = atand(abs(yy/xx)); else theta = 90; end % Compute the height of the pixel r_corr = sqrt(xx^2 + yy^2); % Compute the corresponding height in the distorted domain r_dist = polyval(polycoefs,r_corr); % Convert back to rectangular coordinates, make sure the % coordinates have consistend signs. x_dist = (sign(xx)*round(r_dist*cosd(theta)/pxW) + xc); y_dist = (sign(yy)*round(r_dist*sind(theta)/pxH) + yc); % Copy image intensity: CorrectedImage(y,x,:) = DistortedImage(y_dist,x_dist,:); end end close(h) vcNewGraphWin; imshow(CorrectedImage); title('Barrel distortion removal - polynominal');
Remove barel distortion using the coefficient method
% First we need to compute the distortion function the classical way Corrected = opticsGet(optics,'rtgeomfieldheight','mm'); CorrectedMax = opticsGet(optics,'rtgeommaxfieldheight','mm'); CorrImHeight = linspace(0,CorrectedMax,100); DistWavelengths = opticsGet(optics,'rtgeomwavelength'); Distorted = opticsGet(optics,'rtgeomfunction',DistWavelengths(2),'mm'); polycoefs = polyfit(Corrected,Distorted,2); % Now we define the Cf as a ratio between the distorted and corrected image % heights Cf = polyval(polycoefs,CorrImHeight,2)./CorrImHeight; % Since the first element of CorrImHeight is zero we get a NaN: Cf = Cf(2:end); CorrImHeight = CorrImHeight(2:end); % And we fit in a polynominal s.t. Cf=function(height^2) pc = polyfit(CorrImHeight.^2,Cf,2); CfApprox = polyval(pc,CorrImHeight.^2); % Plot the distortion curves vcNewGraphWin; plot(CorrImHeight.^2,Cf,'r','LineWidth',2); hold on; plot(CorrImHeight.^2,CfApprox,'gx'); xlabel('{Image height}^2'); ylabel('C_f'); title('Coefficient method distortion curve'); legend('Actual','Approximated'); % As previously we extract optical image parameters. imgRows = oiGet(oi,'rows'); imgCols = oiGet(oi,'cols'); % Compute the width and height of a pixel in mm. imgDistance = oiGet(oi,'distance per sample','mm'); pxH = imgDistance(1); pxW = imgDistance(2); Center = oiGet(oi,'centerpixel'); yc = Center(1); xc = Center(2); % Remove the distortion DistortedImage = oiGet(oi,'rgb image',0.6); CorrectedImage = zeros(imgRows,imgCols,3); h = waitbar(0,'Correcting distortion'); for y=1:imgRows waitbar(y/imgRows,h); for x=1:imgCols % Compute pixel coordinates in mm: xx = (x-xc)*pxW; yy = (y-yc)*pxH; % Compute the pixel height r_corr = xx^2 + yy^2; % Compyte the coordinate correction coefficient C_f = polyval(pc,r_corr); % Apply the correction coefficient to corrected coordinates: y_dist = round(yy/pxH*C_f + yc); x_dist = round(xx/pxW*C_f + xc); % Copy image intensity: CorrectedImage(y,x,:) = DistortedImage(y_dist,x_dist,:); end end close(h) vcNewGraphWin; imshow(CorrectedImage); title('Barrel distortion removal - coefficient');
