Correct!

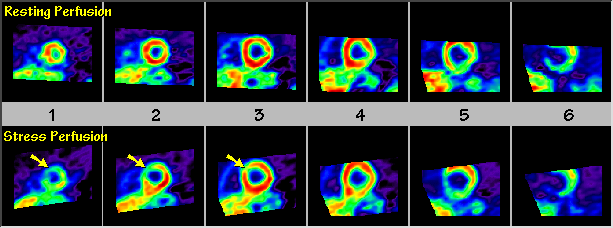

Short Axis-annotated
The PET findings reveal a normal resting myocardial perfusion. There is a moderate stress induced worsening of perfusion involving the mid and distal anterior and anteroseptal walls (arrows), as well as the apex. The PET findings are consistent with the presence of a hemodynamically significant LAD stenosis past the diagonal branch.

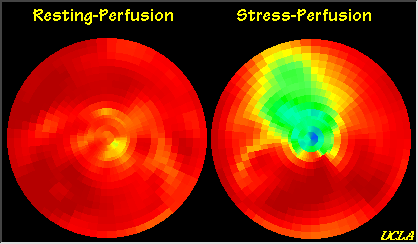

Polar Maps
The polar maps confirm the stress induced worsening of perfusion in the LAD territory.

To review the medical images, select one of the following:

  • Short Axis
  • Long Axis
  • Transaxial
  • Polar Maps
  • Follow-Up
    Coronary angiogram on 12/13/91:

    Successful PTCA of LAD stenosis
