Announcements

YEAH for assignment 6 is on Monday, May 16th at 6:45pm in STLC 114
- Snacks will be provided!

Slide 3

Today's Topics

Building a LinkedIntList class

Slide 4

A LinkedIntList class

Let's create a full LinkedIntList class
- We should keep a private pointer to its front node
- We will write functions to add, insert, and remove from the list
- We need to properly traverse the list
LinkedIntList.h:

// Represents a linked list of integers.
#pragma once
#include<ostream>

using namespace std;

struct ListNode {
    int data;
    ListNode *next;
    ListNode(int value) { // constructor
        data = value;
        next = nullptr;
    }
};

class LinkedIntList {
  public:
    LinkedIntList();
    ~LinkedIntList();
    void addFront(int value);
    void addBack(int value);
    bool isEmpty();
    bool removeValue(int value);
    void removeFront();
    friend ostream &operator<<(ostream &out, LinkedIntList &list);

  private:
    ListNode *_front; // nullptr if empty
    void removeAfter(ListNode *prev);
};

The ListNode definition is a bit different than what we've seen before.
- It has a constructor which sets the value for us:
```
ListNode(int value) { // constructor
    data = value;
    next = nullptr;
}
```
- We create a new ListNode using dynamic memory like this:
```
ListNode *node = new ListNode(value);
```
It looks like this in memory:
Why are there two separate objects in the diagram above?
- The ListNode *node is a variable that is simply a pointer.
- The value / next box is the memory that has been allocated for the ListNode object.
- node points to the object in memory
The constructor for the ListNode class looks like this (pretty simple):
```
_front = nullptr;
```

Slide 5

Adding to the front of a linked list

This should look familiar, from the stack above:

void ListNode::addFront(int value)
{
    ListNode *newNode = new ListNode(value);
    newNode->next = _front;
    _front = newNode;
}

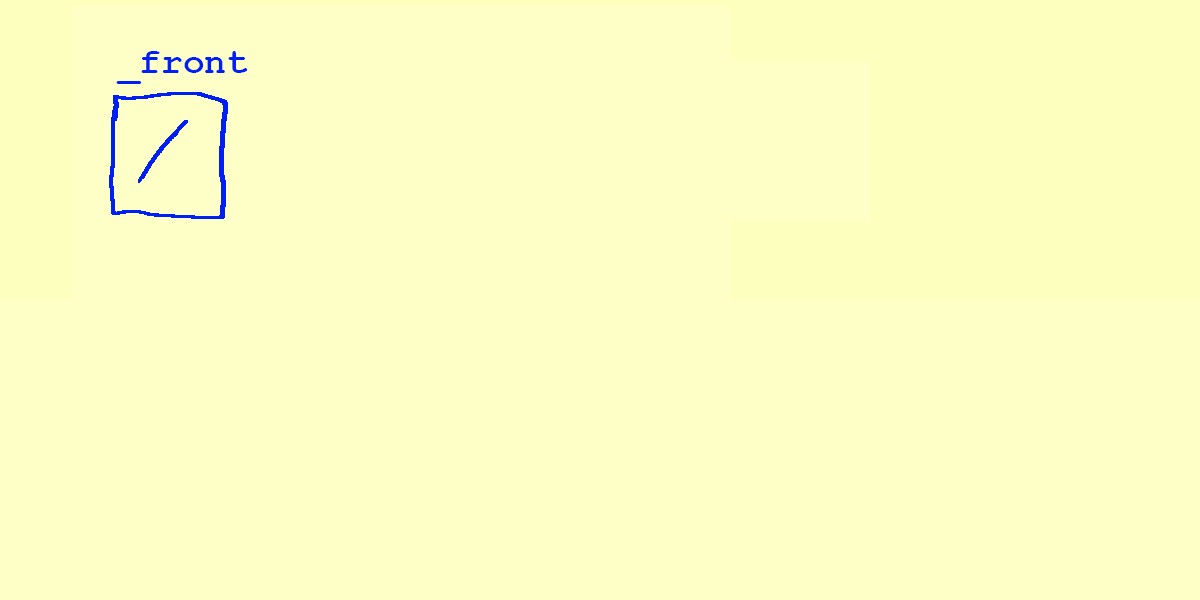

If we are adding to the front of an empty list (ex. list.addFront(42)), this is what it looks like. We start with _front pointing to nullptr:
Next, we create a new ListNode and a pointer, newNode that points to it:
We point the next of the new node to _front (which is also nullptr), and then we point _front to the new node. That's it!

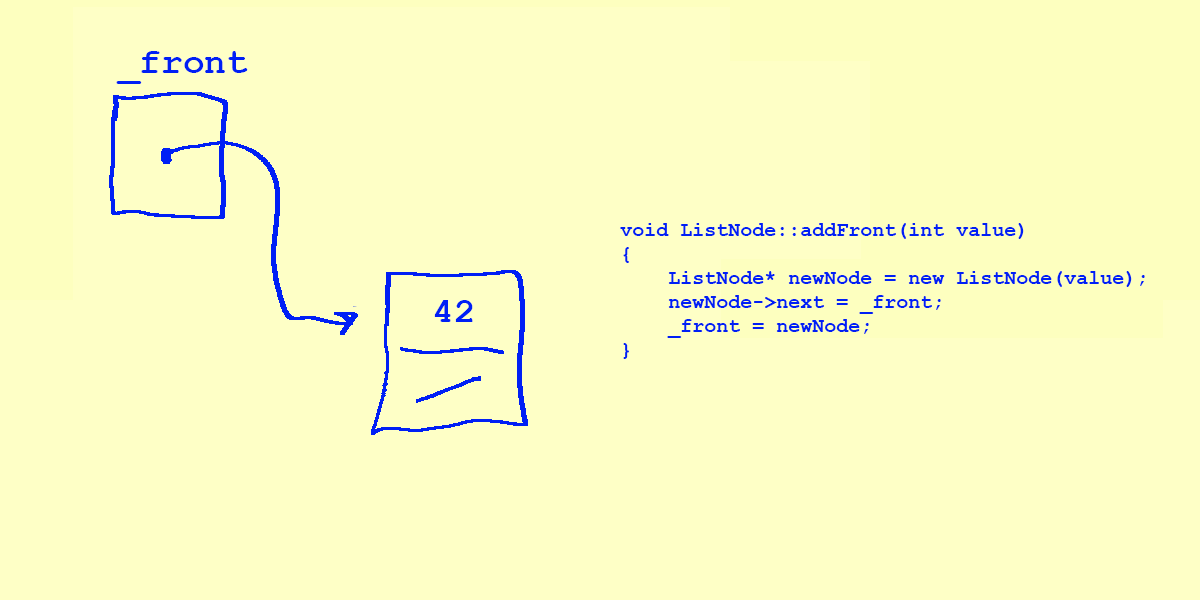

When the function returns, we have a single node in our linked list:
If we want to list.addFront(84), we repeat the process from above, but now the new node gets added before the 42:
We first change newNode's next pointer to point to where _front points to:
Then we change _front to point to newNode:

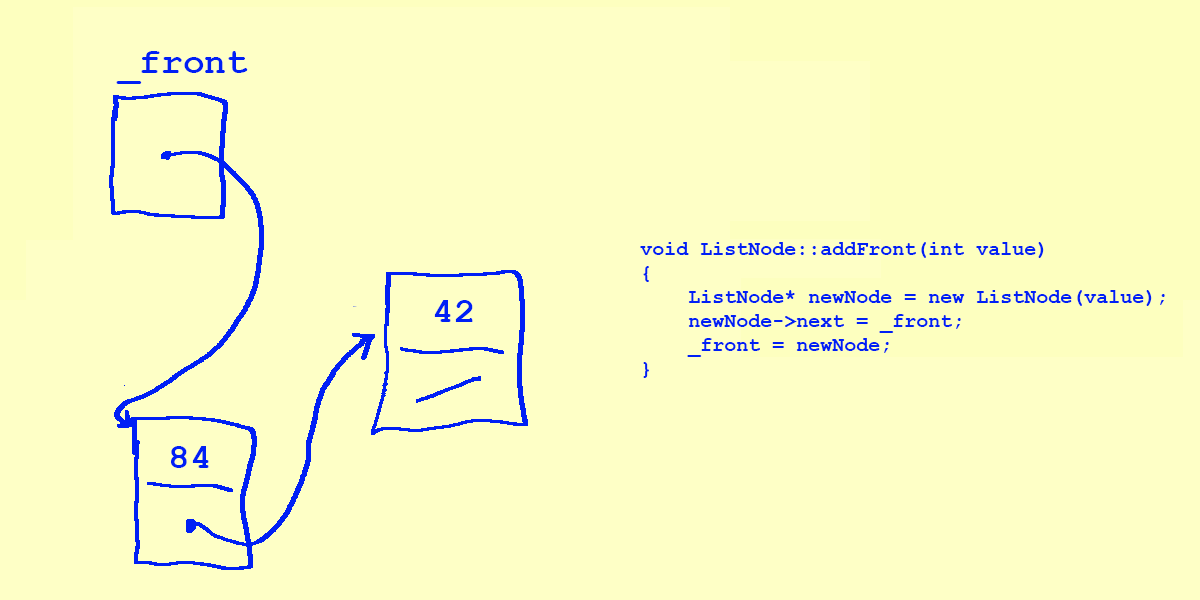

After the function ends, we have a two-node list:

Slide 6

Adding to the back of a linked list

If we want to add to the back of a linked list, and we don't have an explicit _back pointer, we must traverse the entire list to get to the back. This requires a traversal idiom that is common for linked lists. Here is the code for addBack:

void LinkedIntList::addBack(int value)
{
    ListNode *newNode = new ListNode(value);

    if (_front == nullptr) {
        _front = newNode;
    } else {
        ListNode *curr = _front;
        while (curr->next != nullptr) {
            curr = curr->next;
        }
        // at this point, we're at the back
        curr->next = newNode;
    }
}

First, we create a new ListNode
If we are adding to the back of an empty list, this is a special case (handled by the if statement).

The interesting part is the traversal:

ListNode *curr = _front;
while (curr->next != nullptr) {
    curr = curr->next;
}
// at this point, we're at the back
curr->next = newNode;

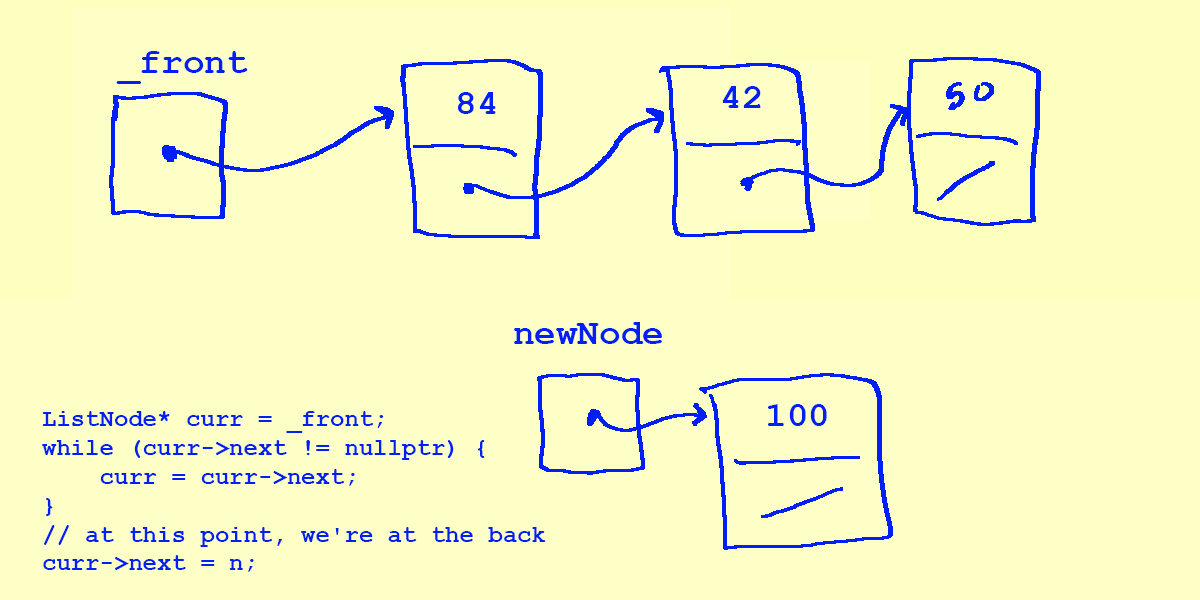

Let's look at this specifically with a three-node list from before:
First, we create a curr pointer that points to the current node, and we set curr to point at the first node, via _front:
Now, we start traversing the list in a while loop, checking if curr->next != nullptr.
- We update curr at each iteration with curr = curr->next. This may seem like strange syntax, but it is just assigning pointer values. We keep iterating until we have reached the last node. In the first iteration:
After the second iteration:

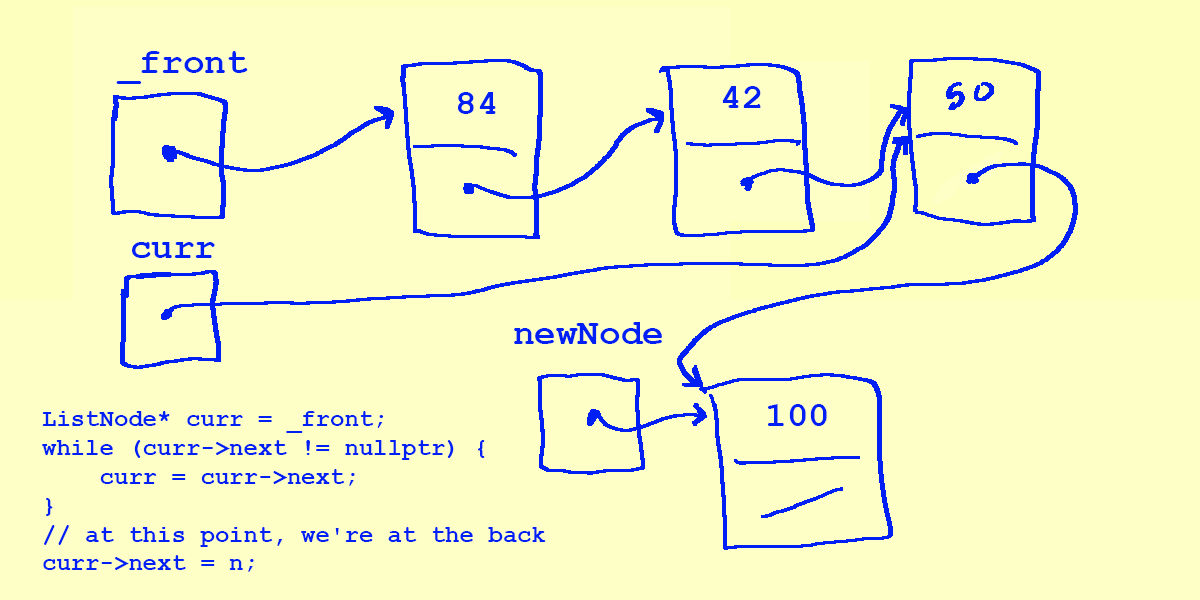

Now, we are at the end of the list, and we can append our new node with curr->next = n;:
After the function ends, this is our list:

Slide 7

Removing a value

Let's write a function to remove the first instance of a value in our list (e.g., if the list had 4->2->3->5->8->3->9, then remove(3) would remove the first 3 and leave the list looking like 4->2->5->8->3->9.
Sometimes, you have to traverse but stop before the node you want to do somthing with.

bool LinkedIntList::removeValue(int value) {
    // Removes the first instance of value in the list
    // We need to find the node before
    // the one we want to remove
    ListNode *temp;

    // traverse the list to the end, if necessary
    ListNode *curr = _front;
    ListNode *prev = nullptr;

    while (curr != nullptr) {
        if (curr->data == value) {
            break;
        }
        prev = curr;
        curr = curr->next;
    }

    if (prev == nullptr) {
        removeFront();
    }

    if (curr == nullptr) {
        // did not find value
        return false;
    }
    removeAfter(prev);
    return true;
}

void LinkedIntList::removeFront() {
    if (_front != nullptr) {
        ListNode *temp = _front;
        _front = _front->next;
        delete temp;
    }
}

void LinkedIntList::removeAfter(ListNode *prev) {
    ListNode *temp = prev->next;
    prev->next = temp->next;
    delete temp;
}

Let's say we want to remove the 50, or list.remove(50). Initially:
We will update the above diagram as we go.
