Human Preference Models:

Choice models

Today: Choice Modeling

Tools to predict the choice behavior of a group of decision-makers in a specific choice context.

Application: Marketing

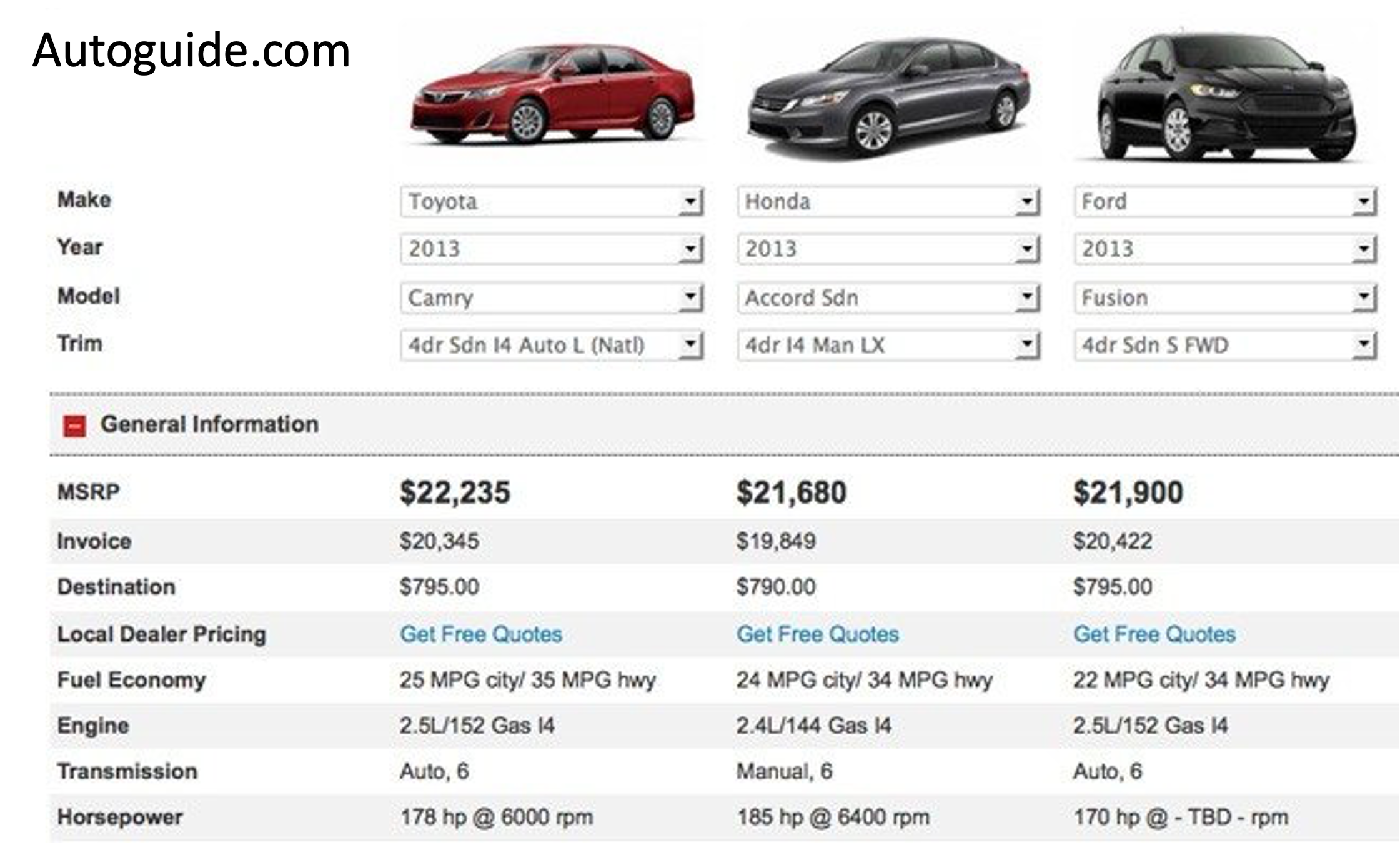

What features affect a car purchase?

Application: Transportation

• How pricing affects route choice
• How much is a driver willing to pay

Image source: https://www.supplychain247.com/article/8_factors_to_consider_when_choosing_route_optimization_software/locus

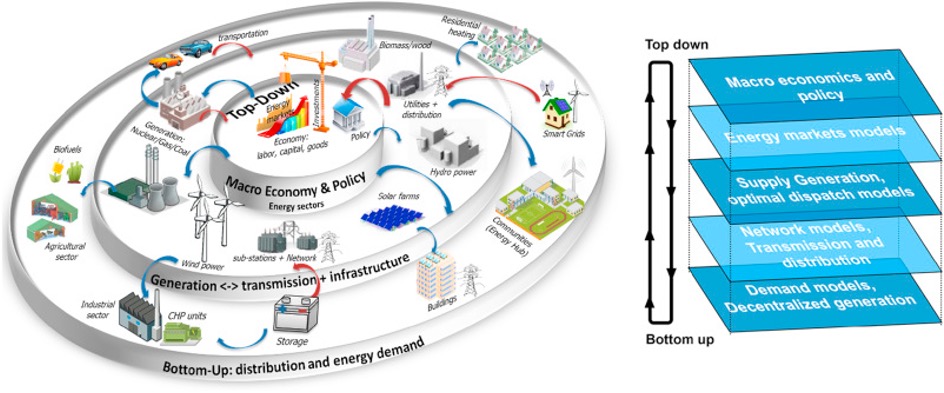

Application: Energy Economics

Del Granado, Pedro Crespo, Renger H. Van Nieuwkoop, Evangelos G. Kardakos, and Christian Schaffner. "Modelling the energy transition: A nexus of energy system and economic models." Energy strategy reviews, 20 (2018): 229-235.

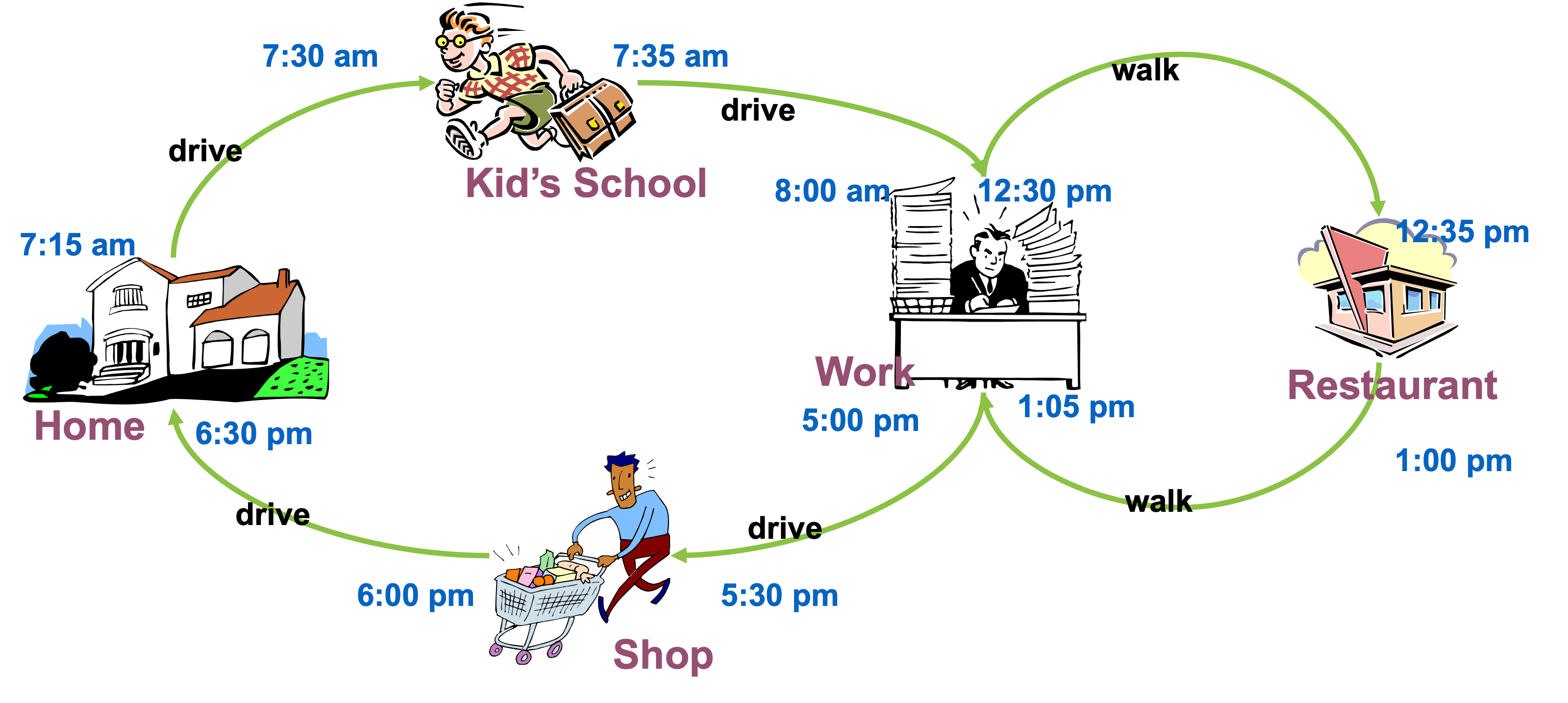

Example: Daily activity-travel pattern of an individual

Source: Chandra Bhat, “ General introduction to choice modeling”

Application: RL and Language

https://openai.com/research/learning-to-summarize-with-human-feedback

History

• Thurstone research into food preferences in the 1920s
• Microeconomics: Random Utility Theory (1970s)
  • McFadden: Nobel prize in 2000 for the theoretical basis for discrete choice.
• Psychology: Duncan Luce and Anthony Marley
  • Luce, R. Duncan (1959). “Conditional logit analysis of qualitative choice behavior”
• Early use in marketing
  • Predict demand for new products that are potentially expensive to produce
• Early use in transportation
  • Predict usage of transportation resources, e.g., used by McFadden to predict the demand for the Bay Area Rapid Transit (BART) before it was built

Why are we studying choice models?

• Human preferences are often gathered by asking for choices across alternatives
• Basic choice models are the workhorse for ML from preferences (Bradley-Terry, Plackett Luce)
• Our discussion will highlight some of the key assumptions, e.g., utility and rationality
  • We will cover models originally built for discrete/finite choices, which have been extended to ML applications (conditional choices)

(Discrete) choice models

• Models designed to capture decision-process of individuals
• True utility is not observable, but perhaps can measure via preferences over choices
• Main assumption: utility (benefit, or value) that an individual derives from item A over item B is a function of the frequency that they choose item A over item B in repeated choices.
• Useful Note: “Utility” in choice models <=> “Reward” in RL

Modeling: Discrete choice

• Choices are collectively exhaustive, mutually exclusive, and finite

$$y_{ni} = \begin{cases} 1, & \text{if } U_{ni} > U_{nj} \ \forall j \neq i \\ 0, & \text{otherwise} \end{cases}$$

$$U_{ni} = H_{ni}(z_{ni})$$

• $z_{n,i}$ are variables describing the individual attributes and the alternative choices
• $H_{ni}(z_{ni})$ is a stochastic function, e.g., linear $H_{ni}(z_{ni}) = \beta z_{ni} + \epsilon_{ni}$, where $\epsilon_{ni}$ are unobserved individual factors

Implications of the choice model

• Only the utility differences matter

$$\begin{aligned} P_{ni} &= Pr(y_{ni} = 1) \\ &= Pr(U_{ni} > U_{nj}, \forall j \neq i) \\ &= Pr(U_{ni} - U_{nj} > 0, \forall j \neq i) \end{aligned}$$

• Note that utility here is scale-free
  • May be invariant to monotonic transformations
  • Ok within a single context, but will need to normalize for comparing across datasets
  • Common approach: normalize scale by standardizing the variance

Example: Binary choice with individual attributes

• Benefit of action depends on $s_n$ = individual characteristics

$$\begin{cases} U_n = \beta s_n + \epsilon_n \\ y_n = \begin{cases} 1 & U_n > 0 \\ 0 & U_n \leq 0 \end{cases} \end{cases} \quad \Rightarrow \quad P_{n1} = \frac{1}{1 + \exp(-\beta s_n)}$$

• $\epsilon \sim$ Logistic

• Replacing $\epsilon \sim$ Standard Normal gives the probit model

$$P_{n1} = \Phi(\beta s_n)$$

• Where $\Phi(.)$ is the normal CDF

Example: Utility is linear function of variables that vary over alternatives (Bradley-Terry Model)

• The utility of each alternative depends on the attributes of the alternatives (which may include individual attributes)
• Unobserved terms are assumed to have an extreme value distribution

$$\begin{cases} U_{n1} = \beta z_{n1} + \epsilon_{n1} \\ U_{n2} = \beta z_{n2} + \epsilon_{n2} \\ \epsilon_{n1}, \epsilon_{n2} \sim \text{iid extreme value} \end{cases} \quad \Rightarrow \quad P_{n1} = \frac{\exp(\beta z_{n1})}{\exp(\beta z_{n1}) + \exp(\beta z_{n2})}$$

• Equivalently $P_{n1} = \frac{1}{1 + \exp(-\beta (z_{n1} - z_{n2}))}$

• Can replace noise with Standard Normal $P_{n1} = \Phi(\beta (z_{n1} - z_{n2}))$

Example: Utility for each alternative depends on attributes of that alternative

• Unobserved terms are assumed to have an extreme value distribution
• With $J$ alternatives

$$\begin{cases} U_{ni} = \beta z_{ni} + \epsilon_{ni} \\ \epsilon_{ni} \sim \text{iid extreme value} \end{cases} \quad \Rightarrow \quad P_{ni} = \frac{\exp(\beta z_{ni})}{\sum_{j=1}^{J} \exp(\beta z_{nj})}$$

• Compare to standard model for multiclass classification (multiclass logistic)
• Can also replace noise model with Gaussians

Capturing correlations across alternatives

• All the prior models use the logistic model which does not capture correlations in noise.
• This can be fixed using a joint distribution over the noise e.g.,

$$\begin{cases} U_{ni} = \beta z_{ni} + \epsilon_{ni} \\ \epsilon_n \equiv (\epsilon_{n1}, \cdots, \epsilon_{nJ}) \sim N(0, \Omega) \end{cases}$$

Estimation

• Linear case: maximum likelihood estimators
  • Logistic model: use (binary or multinomial) logistic regression
  • Gaussian Model: use probit regression
• More complex function classes: use standard ML fitting tools for (regularized) maximum likelihood, e.g., stochastic gradient descent (SGD)
• Standard tradeoffs, e.g., bias-variance tradeoff
  • More complex utility models generally require more data
  • Most ML applications pool the model across individuals, individual differences may matter (more on this in future class)

What of measuring ordered preferences?

• Example: On a 1-5 scale where 1 means disagree completely and 5 means agree completely, how much do you agree with the following statement: “I am enjoying this class so far”
• Use ordinal regression, e.g.,

$$U_n = H_n(z_n) \quad \quad \quad y_n = \begin{cases} 1, & \text{if } U_n < a \\ 2, & \text{if } a < U_n < b \\ 3, & \text{if } b < U_n < c \\ 4, & \text{if } c < U_n < d \\ 5, & \text{if } U_n > d \end{cases}$$

• For some real numbers $a, b, c, d$ (parameters)

Ordered Logit

• For linear utility: $U_n = \beta z_n + \epsilon$, $\epsilon \sim$ Logistic

$Pr(\text{choosing 1}) = Pr(U_n < a) = Pr(\epsilon < a - \beta z_n) = \frac{1}{1 + \exp(-(a - \beta z_n))}$

$$\begin{aligned} Pr(\text{choosing 2}) &= Pr(a < U_n < b) = Pr(a - \beta z_n < \epsilon < b - \beta z_n) \\ &= \frac{1}{1 + \exp(-(b - \beta z_n))} - \frac{1}{1 + \exp(-(a - \beta z_n))} \end{aligned}$$

$$...$$

$Pr(\text{choosing 5}) = Pr(U_n > d) = Pr(\epsilon > d - \beta z_n) = 1 - \frac{1}{1 + \exp(-(d - \beta z_n))}$

• Can also replace with Gaussian for ordered probit regression

Plackett-Luce Model

• Ranking models the sequence of choices (Plackett and Luce in 1970s)
• Probability of choice 1, 2, …, J is

$Pr(\text{ranking } 1, 2, \dots, J) = \frac{\exp(\beta z_1)}{\sum_{j=1}^{J} \exp(\beta z_{nj})} \cdot \frac{\exp(\beta z_2)}{\sum_{j=2}^{J} \exp(\beta z_{nj})} \cdots \frac{\exp(\beta z_{J-1})}{\sum_{j=J-1}^{J} \exp(\beta z_{nj})}$

• PL is common in biomedical literature
• aka rank ordered logit (econometrics ~1980s), or exploded logit model
• All the extensions mentioned also apply (nonlinear utility, correlated noise, etc.)

Modeling and estimation summary

• Choose the utility model, i.e., how the attributes and alternatives define the utility e.g., linear function of attributes with logistic noise
• Choose the response/observation model, e.g., binary, multiple choice, ordered choice.
• Fit the model using (regularized) maximum likelihood

Aside: “Revealed preference” vs “stated preference”

• Revealed preference: Use observed data about the choices to estimate value ascribed to items.
  • Generally offline observational data about real choices
• Stated Preference: Use the choices made by individuals under experimental conditions to estimate these values
  • Generally online experimental data (can include controlled experiments)
• Revealed preference is considered a “real” choice, so can be more accurate
  • In simulated situations, participants may not respond well to hypotheticals

  • OTOH: observed data may not cover the space, hence the appeal of experiments

Exercise (inclass): choice model for class(es)

• “Should you take CS 329H or not?”
  • What are the attributes/features (describe what to measure about a class)?
  • What utility model?
  • What is the observation/response model?
  • Revealed preference (observed choices) or stated preference (hypothetical)?
• “Should you take CS 329H or CS 221 or CS 229?”
  • What are the attributes/features?
  • What utility model?
  • What is the observation/response model?
  • Revealed preference or stated preference?

Exercise (inclass): choice model for language

Design a choice model to evaluate the quality of a language model?

• What utility model?
  • What are the attributes/features?
• What is the observation/response model?
• Revealed preference or stated preference?
• Who should you query?
  • Individual or pooled responses: why or why not?
• What are some pro/cons of your design?
