Assignment 1. The Game of Life

Attribution: Thanks to Julie Zelenski for the idea and Jerry Cain, Keith Schwarz, Cynthia Lee, Marty Stepp, and Chris Gregg for revisions.

For your first assignment… We make the Game of Life!

The purpose of this assignment is to gain familiarity with basic C++ features such as functions, strings, and I/O streams, using provided libraries, and decomposing a large problem into smaller functions. Usually, this would be an individual assignment. You would write your own solution and not work in a pair on this program. For SSEA, we will be working in pairs so that you can bounce ideas off of each other and discuss the code. In the regular CS106B course, you will likely have to work completely alone – no sharing or looking at anyone else's code.

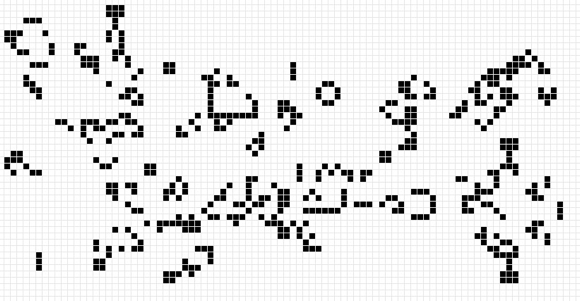

The Game of Life is a simulation originally conceived by the British mathematician J. H. Conway in 1970 and popularized by Martin Gardner in his Scientific American column. The game models the life cycle of bacteria using a two-dimensional grid of cells. Given an initial pattern, the game simulates the birth and death of future generations of cells using a set of simple rules. In this assignment you will implement a simplified version of Conway's simulation and a basic user interface for watching the bacteria grow over time.

Feel free to read more about the Game of Life on Wikipedia.

Getting started

We provide a ZIP of the starter project. Download the zip, extract the files, and double-click the .pro file to open the project in Qt Creator.

📦 Starter code

The one source file you will edit is:

• life.cpp

Overview

Your Game of Life program should begin by prompting the user for a file name and using that file's contents to set the initial state of your bacterial colony grid. Then, it should ask if the simulation should wrap around the grid (see below for the details of wrapping). Then the program will allow the user to advance the colony through generations of growth. The user can type t to "tick" forward the bacteria simulation by one generation, or a to begin an animation loop that ticks forward the simulation by several generations, once every 50 milliseconds; or q to quit. Your menu should be case-insensitive; for example, an uppercase or lowercase A, T, or Q should work (hint: you can use the toLowerCase() function from the Stanford strlib library to convert a string to lowercase).

Simple Example

Here is an example log of the interaction between your program and the user (with console input in blue).

Many Examples:

Of course there are many other interactions you could have. Here are a bunch more examples. They show what to do in many cases, for example bad input filenames.

• Example Run #1
• Example Run #2
• Example Run #3
• Example Run #4
• Example Run #5
• Example Run #6
• Example Run #7
• Example Run #8
• Example Run #9 (tick wrap)

Testing your program

When you run the program, you are first presented with the following menu:

Tests are grouped by filename or by type.
Select the test groups you wish to run:
----------------------------------------
  0) None (instead execute ordinary main() function)
  1) From PROVIDED_TEST
  2) From life.cpp
  3) All of the above tests
Enter your selection:

If you type 1, then some tests that we provide in the starter code are run. Before you write any code, all of the tests fail, e.g.:

As you write your program, you should keep running the tests, until they start passing. Testing your code is a super-important skill, and it is necessary for this assignment.

As you write your code, you should also write your own tests (example below). You must write at least three different tests for this program.

Example:

STUDENT_TEST("Testing countNeighbors function") {
    // your code here
}

Comparing your output

In addition to testing your code with the tests shown above, when you are ready, you can also compare your programs to the "Example Runs" above using the Example Diff Tool. We want your output to match ours exactly:

Example Diff Tool

Game of Life Simulation Rules

Each grid location is either empty or occupied by a single living cell (X). A location's neighbors are any cells in the surrounding eight adjacent locations. In the example at right, the shaded middle location has three neighbors containing living cells. A square that is on the border of the grid has fewer than eight neighbors in the non-wrapping version of the simulation (see below for the wrapping version). For example, the top-right X square in the example at right has only three neighboring squares, and only one of them contains a living cell (the shaded square), so it has one living neighbor.

The simulation starts with an initial pattern of cells on the grid and computes successive generations of cells according to the following rules:

1. A location that has zero or one neighbors will be empty in the next generation. If a cell was there, it dies.
2. A location with two neighbors is stable. If it had a cell, it still contains a cell. If it was empty, it's still empty.
3. A location with three neighbors will contain a cell in the next generation. If it was unoccupied before, a new cell is born. If it currently contains a cell, the cell remains.
4. A location with four or more neighbors will be empty in the next generation. If there was a cell in that location, it dies of overcrowding.

The births and deaths that transform one generation to the next all take effect simultaneously. When you are computing a new generation, new births/deaths in that generation don't impact other cells in that generation. Any changes (births or deaths) in a given generation k start to have effect on other neighboring cells in generation k+1.

Check your understanding of the game rules by looking at the following example. The two patterns should alternate forever:

Here is a second example. The pattern at right does not change on each iteration, because each cell has exactly three living neighbors. This is called a "stable" pattern or a "still life".

Input Grid Data Files:

The grid of bacteria in your program gets its initial state from one of a set of provided input text files, which follow a particular format. When your program reads the grid file, you should re-prompt the user if the file specified does not exist. If it does exist, you may assume that all of its contents are valid. You do not need to write any code to handle a misformatted file. The behavior of your program in such a case is not defined in this spec; it can crash, it can terminate, etc. You may also assume that the input file name typed by the user does not contain any spaces.

In each input file, the first two lines will contain integers r and c representing the number of rows and columns in the grid, respectively. The next lines of the file will contain the grid itself, a set of characters of size r x c with a line break (\n) after each row. Each grid character will be either a '-' (minus sign) for an empty dead cell, or an 'X' (uppercase X) for a living cell. The input file might contain additional lines of information after the grid lines, such as comments by its author or even junk/garbage data; any such content should be ignored by your program.

The input files will exist in the same working directory as your program. For example, the following text might be the contents of a file simple.txt, a 5x9 grid with 3 initially live cells (the arrow notes are not part of the actual file):

5                   ← number of rows tall
9                   ← number of columns wide
---------
---------           ← - is a dead cell
---XXX---           ← X is a living cell
---------
---------

Implementation Details

Grid: The grid of bacterial cells could be stored in a 2-dimensional array, but arrays in C++ lack some features and are generally difficult for new students to use. They do not know their own length, they cause strange bugs if you try to index out of the bounds of the array, and they require understanding C++ topics such as pointers and memory allocation. So instead of using an array to represent your grid, you will use an object of the Grid class, which is part of the provided Stanford C++ library.

A Grid object offers a cleaner abstraction of a 2-dimensional data set, with several useful methods and features. See the course lecture examples and/or section 5.1 of the Programming Abstractions in C++ textbook for a list of members of the Grid class (e.g., the grid.inBounds() function will come in very handy). You can also use the = assignment operator to copy the state of one Grid object to another.

Your main function should create your Grid and pass it to the other functions. Since it is expensive to make copies of a Grid, if your code passes a Grid object as a parameter from one function to another, it should always do so by reference (Grid&, not Grid). See the lecture notes for examples. Since you don't know the size of the grid until you read the input file, you can call resize on the Grid object once you know the proper size.

I/O: Your program has a console-based user interface, although there is a relatively easy extension that includes a GUI. You can produce console output using cout and the Stanford C++ library's console-related functions such as getLine (uppercase L) to read from the console. You should not use cin to read from the console. See the Stanford C++ library documentation for input/output here.

You will also write code for reading input files. Read a file using an ifstream object, along with functions such as getline (lowercase L) to read lines from the file. Here are some useful ifstream-related functions from filelib and strlib:

Make sure to close your input file streams when you are done reading the given file: stream.close().

Checking for valid input: Note that your program needs to check for valid user input in a few places:

1. When the user types the grid input file name, you must ensure that the file exists, and if not, you must re-prompt the user to enter a new file name.
2. If the user is prompted to enter an action and types anything other than the three predefined commands of a, t, or q (case-insensitively), you should re-prompt the user to enter a new command.
3. If the user is prompted to enter an integer such as the number of frames of animation for the 'a' command, your code should re-prompt the user if they type a non-integer token of input. (If they do type an integer, you may assume that it is a valid value greater than 0; you don't need to explicitly test or check its value.)
4. If the user is prompted to enter whether or not they want wrapping, and types anything other than y or n, you should re-prompt the user to enter a new answer.

See the expected output files above for examples of this output.

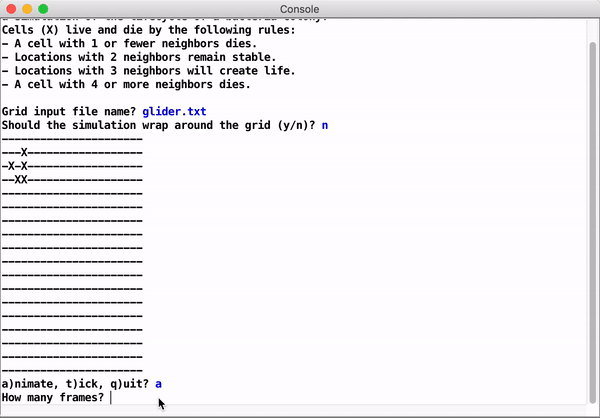

Animation: When the user selects the animation option, the console output should look like the following:

a)nimate, t)ick, q)uit? a
How many frames? xyz
Illegal integer format. Try again.
How many frames? 5
(five new generations are shown, with screen clear and 50ms pause before each)

The screen is supposed to clear between each generation of cells, leading to what looks like a smooth animation effect. Here is a short video showing an example animation (for the glider colony):

To help you perform animation, use the following global functions from the Stanford C++ library:

Wrapping:

The non-wrapping version of the assignment treats the edges of the grid as the end of the game world. Cells on the border do not always have eight neighbors. In the wrapping version, all cells will have eight neighbors, as follows: the right-most squares are considered to be "neighbors" of the left-most, and the top-most are considered to be "neighbors" of the bottom-most. In order to provide wrapping functionality, modify your game logic so that these rules are followed. This will allow moving patterns such as "gliders" to wrap around indefinitely.

The logic for this is not too difficult, and you may want to use the remainder operator (%) to perform part of this task. The remainder function works as follows:

(a % b) // returns the remainder of a / b

For positive values, the operator returns the value of the remainder, which "wraps" around to the value. E.g., 6 % 5 is 1, which would be correctly wrapped on a grid from 0-4 (which has 5 values).

For negative values, the remainder function does not wrap in C++, but wrapping can be accomplished by simply adding the number of rows or columns in the grid to the negative value. In fact, to wrap properly in all cases, simply add the number of rows or columns to the location, and then apply the remainder operator.

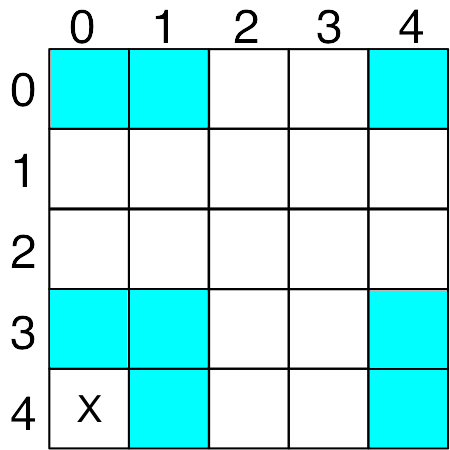

For example, let's say you were checking the bottom left corner of a 5x5 grid (with indexes 0-4 for both the rows and columns), at location (4,0), as shown in the diagram below.

The blue squares show the neighbors with wrapping, and going clockwise from the top-left corner of the neigbors, would be at locations (3,-1), (3,0), (3,1), (4,-1), (4,1), (5,-1), (5,0), and (5,1). But, both the negative values and the values above 4 are out of bounds. If we apply the remainder operator as detailed above, we will get a proper wrapping of the values. If we add the corresponding number of rows or columns (5 in this case, for both), and then apply the remainder operator with the same value to each of the coordinate pairs, we will get a proper wrap. Using coordinate (5, -1) as an example, this would become:

((5 + 5) % 5, (-1 + 5) % 5) = (10 % 5, 4 % 5) = (0, 4)

and that coordinate is properly wrapped to the top right corner.

Many of the provided colonies will behave differently with and without wrapping. For instance, without wrapping, the glider colony will move to the bottom of the screen in a straight line and stop. With wrapping, the glider colony will move to the bottom of the screen and continue wrapping around and moving forever in a straight line.

Creative Aspect (mycolony.txt):

Along with your program, submit a file mycolony.txt that contains a valid initial colony that can be used as input. This can be anything you want, as long as it is in the input grid file format described in this document, and should be your own work (not just a copy of an existing colony input file).

Development Strategy and Hints:

Development strategy: It is tempting to try to write your entire program and then try to compile and run it; we do not recommend that strategy. Instead, you should develop your program incrementally: Write a small piece of functionality, then test/debug it until it works, then move on to another small piece. This way you are always making small consistent improvements to a base of working code. Here is a possible list of steps to develop a solution:

1. Intro: Get your basic project running, and write code to print the introductory welcome message.
2. File input: Write code to prompt for a filename, and open and print that file's lines to the console. Once this works, try reading the individual grid cells and turning them into a Grid object. Print the Grid's state on the console using toString just to see if it has the right data in it. Use a simple test case, e.g. simple.txt.
3. Grid display: Write code to print the current state of the grid, without modifying that state.
4. Updating to next generation: Write code to advance the grid from one generation to the next.This is one of the hardest parts of the assignment, so you will probably need lots of testing and debugging before it works perfectly. Insert cout statements to print important values as you go through your loops and code. Try printing out what indexes your code is examining, along with your count of how many neighbors each cell has, to make sure you are counting them properly.
5. Overall menu and animation: Implement the program's main menu and the animation feature. If all of the preceding steps are finished and work properly, this should not be as difficult to get working. Updating from one generation to the next: When you are trying to advance the bacteria from one generation to the next, you cannot do this "in place" by modifying your grid as you loop over it. Doing so will change the cells and their neighbors and break the neighbor counts for nearby cells. So you will need to create a temporary second grid. Your existing grid represents the current generation of bacteria, and you can create a second temporary second grid that allows you to compute and store the next generation without changing the current one. Once you have filled the second grid with the next generation's cell information, you can copy its contents back into the original grid and discard the temporary copy. Copying one Grid to another is easy; just assign one to the other using the = assignment operator, which makes a copy of its contents.

Output: We want your output to match ours exactly. This includes identical spacing, such as the extra spaces after the phrase, "Grid input file name? " Some students lose points for minor output formatting errors. Please run the web Output Comparison Tool on several test cases to make sure it matches without any differences.

Hints: Here are some other miscellaneous tips that may help you:

1. A common bug when counting neighbors of a given cell is to count that cell itself. Don't do that.
2. If your editor is unable to compile your program, complaining about "cannot open output file …: Permission denied", you need to close/terminate all windows from previous runs of the program.

Possible Extra Features (Extensions)

Though your solution to this assignment must match all of the specifications mentioned previously, it is allowed and encouraged for you to add extra features to your program if you'd like to go beyond the basic assignment. Here are some example ideas for extra features that you could add to your program.

1. Random world generation: Add special logic so that when the user is prompted for an input file name, if they type the word "random", instead of loading your input from a file, your program will randomly generate a game world of a given random size. That is, your code will randomly pick a grid width and height (of at least 1), and then randomly decide whether to make each grid cell initially living or dead. This way you can generate infinite possibilities of new game worlds each time you run the program.

2. Graphical display: The default version of the assignment displays its output as text. But we also provide a file called life-gui.cpp that contains an implementation of a graphical display of the Life game world. For this feature, insert code into your program that uses life-gui. Here are the functions you can call:

   Command	Description
   LifeGUI name;	creates a new graphical user interface (GUI) window
   gui.resize(nRows, nCols);	Sets the GUI to use the given number of rows/cols in its grid
   gui.drawCell(r, c, alive);	Tells the GUI whether the cell in the given row/column index is alive (true) or dead (false); living cells are drawn in color on the GUI. If you call drawCell on a previously-living cell and pass false for alive, the GUI slowly "fades out" that cell with each generation

3. GUI enhancements: Do you want to add a feature to the provided graphical interface? If so, tweak the provided GUI files and submit them with your turnin. We haven't taught about GUI programming, but if you want to look at the provided files and learn how they work, we encourage you to do so.
4. New Rules: Add new rules to the game. For instance, you might add rules that apply to cells two away from a target cell, or you might have random mutations occur in the simulation. If you add new rules, be sure to write a lengthy comment about what your rules accomplish and how that affects the game.
5. Other: If you have your own creative idea for an extra feature, ask your SL and/or the instructor about it.

Indicating that you have done extra features:

If you complete any extra features, then in the comment heading on the top of your program, please list all extra features that you worked on and where in the code they can be found (what functions, lines, etc. so that the grader can look at their code easily).

Submitting a program with extra features:

Since we use automated testing for part of our grading process, it is important that you submit a program that conforms to the preceding spec, even if you want to do extra features. If your feature(s) cause your program to change the output that it produces in such a way that it no longer matches the expected sample output test cases provided, you should submit two versions of your program file: a first one named life.cpp without any extra features added (or with all necessary features disabled or commented out), and a second one named life-extra.cpp with the extra features enabled. Please distinguish them in by explaining which is which in the comment header. Our turnin system saves every submission you make, so if you make multiple submissions we will be able to view all of them; your previously submitted files will not be lost or overwritten.

Resources

• The CS106B Style Guide reviews the coding standards in the rubric applied to grading the style of your submission.
• The CS106B guide to testing your code explains the use of SimpleTest.
• This guide to transitioning from Python to C++ points out syntactical and functional differences between the two languages. Thank you to section leaders Jillian Tang and Ethan Chi for this wonderful resource!
• Resolving Common Build/Run Errors, compiled by section leader Jillian Tang.

Submit

Before you call it done, run through our submit checklist to be sure all your ts are crossed and is are dotted. Then upload your completed files to Paperless for grading.

Please submit only the life.cpp file.

You don't need to submit any of the other files in the project folder.

🏁 Submit to Paperless

That's it; you're done! Congratulations on finishing your first SSEA CS106B assignment!
