scl::CTaskOpPosPIDA1OrderInfTime Class Reference

#include <CTaskOpPosPIDA1OrderInfTime.hpp>

Inheritance diagram for scl::CTaskOpPosPIDA1OrderInfTime:
Inheritance graph
[legend]

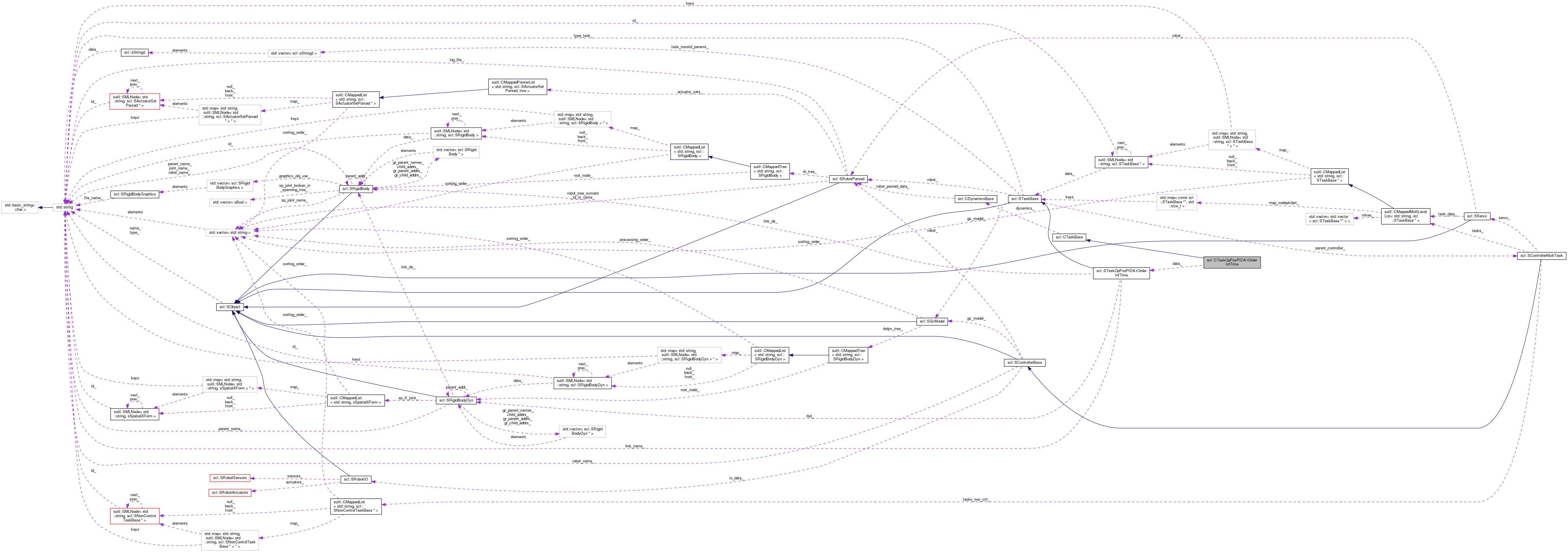

Collaboration diagram for scl::CTaskOpPosPIDA1OrderInfTime:
Collaboration graph
[legend]

Public Member Functions

virtual bool computeServo (const SRobotSensors *arg_sensors)

virtual bool computeModel (const SRobotSensors *arg_sensors)

virtual STaskBase * getTaskData ()

virtual bool setGoalPos (const Eigen::VectorXd &arg_goal)

virtual bool setGoalVel (const Eigen::VectorXd &arg_goal)

virtual bool setGoalAcc (const Eigen::VectorXd &arg_goal)

virtual bool getGoalPos (Eigen::VectorXd &arg_goal) const

virtual bool getGoalVel (Eigen::VectorXd &arg_goal) const

virtual bool getGoalAcc (Eigen::VectorXd &arg_goal) const

virtual bool getPos (Eigen::VectorXd &arg_pos) const

virtual bool getVel (Eigen::VectorXd &arg_vel) const

virtual bool getAcc (Eigen::VectorXd &arg_acc) const

sBool achievedGoalPos ()

void setFlagComputeOpPosGravity (sBool arg_compute_grav)

sBool integralGainActive ()

 CTaskOpPosPIDA1OrderInfTime ()

virtual ~CTaskOpPosPIDA1OrderInfTime ()

virtual bool init (STaskBase *arg_task_data, CDynamicsBase *arg_dynamics)

virtual void reset ()

virtual sBool hasBeenInit ()

virtual sBool setActivated (sBool arg_activate)

virtual sBool hasBeenActivated ()


Protected Attributes

STaskOpPosPIDA1OrderInfTime * data_

Eigen::VectorXd tmp1

Eigen::VectorXd tmp2

Eigen::ColPivHouseholderQR
< Eigen::Matrix3d > 		qr_

sBool lambda_inv_singular_

Eigen::JacobiSVD< Eigen::Matrix3d > svd_

Eigen::Matrix3d singular_values_

sBool flag_compute_gravity_

sBool flag_integral_gain_active_

sBool has_been_init_

CDynamicsBase * dynamics_


Detailed Description

Computes the operational space forces for a single 3-d (x,y,z) goal point Euclidean task

It computes:

  1. The task model (computes, mass, jacobian, inv jacobian, coriolis, centrifugal and gravity matrices/vectors).
  2. The task servo (computes the dynamically decoupled task forces and the torques. uses the task model to do so).

NOTE : This differs from the plain operational space controller in that it also incorporates integral gain. For many applications, integral gain is actually not desirable since it introduces a non-deterministic time-varying control signal to the equations. To make this work well, one might have to tune gains manually depending on the motor task involved.

Use with caution.

Constructor & Destructor Documentation

scl::CTaskOpPosPIDA1OrderInfTime::CTaskOpPosPIDA1OrderInfTime ( )

Default constructor : Does nothing

virtual scl::CTaskOpPosPIDA1OrderInfTime::~CTaskOpPosPIDA1OrderInfTime ( )
inlinevirtual

Default destructor : Does nothing.

Member Function Documentation

bool scl::CTaskOpPosPIDA1OrderInfTime::achievedGoalPos ( )

Whether the task has achieved its goal position.

bool scl::CTaskOpPosPIDA1OrderInfTime::computeModel ( const SRobotSensors *  arg_sensors)
virtual

Computes the dynamics (task model) Assumes that the data_->model_.gc_model_ has been updated.

Implements scl::CTaskBase.

bool scl::CTaskOpPosPIDA1OrderInfTime::computeServo ( const SRobotSensors *  arg_sensors)
virtual

Computes the task torques

Implements scl::CTaskBase.

virtual bool scl::CTaskOpPosPIDA1OrderInfTime::getAcc ( Eigen::VectorXd &  arg_acc) const
inlinevirtual

Gets the current acceleration. Returns false if not supported by task.

Reimplemented from scl::CTaskBase.

virtual bool scl::CTaskOpPosPIDA1OrderInfTime::getGoalAcc ( Eigen::VectorXd &  arg_goal) const
inlinevirtual

Gets the current goal acceleration. Returns false if not supported by task.

Reimplemented from scl::CTaskBase.

virtual bool scl::CTaskOpPosPIDA1OrderInfTime::getGoalPos ( Eigen::VectorXd &  arg_goal) const
inlinevirtual

Gets the current goal position. Returns false if not supported by task.

Reimplemented from scl::CTaskBase.

virtual bool scl::CTaskOpPosPIDA1OrderInfTime::getGoalVel ( Eigen::VectorXd &  arg_goal) const
inlinevirtual

Gets the current goal velocity. Returns false if not supported by task.

Reimplemented from scl::CTaskBase.

virtual bool scl::CTaskOpPosPIDA1OrderInfTime::getPos ( Eigen::VectorXd &  arg_pos) const
inlinevirtual

Gets the current position. Returns false if not supported by task.

Reimplemented from scl::CTaskBase.

STaskBase * scl::CTaskOpPosPIDA1OrderInfTime::getTaskData ( )
virtual

Return this task controller's task data structure.

Implements scl::CTaskBase.

virtual bool scl::CTaskOpPosPIDA1OrderInfTime::getVel ( Eigen::VectorXd &  arg_vel) const
inlinevirtual

Gets the current velocity. Returns false if not supported by task.

Reimplemented from scl::CTaskBase.

virtual sBool scl::CTaskBase::hasBeenActivated ( )
inlinevirtualinherited

Activated = All dynamic parameters and data structures are up to date and task is actively contributing to a controller.

virtual sBool scl::CTaskBase::hasBeenInit ( )
inlinevirtualinherited

Initialized = All static parameters are set and data structures are up to date. Ready to contribute to a controller.

bool scl::CTaskOpPosPIDA1OrderInfTime::init ( STaskBase *  arg_task_data,
CDynamicsBase *  arg_dynamics
)
virtual

Initializes the task object. Required to set output gc force dofs

Implements scl::CTaskBase.

sBool scl::CTaskOpPosPIDA1OrderInfTime::integralGainActive ( )
inline

Whether the integral gain has activated.

void scl::CTaskOpPosPIDA1OrderInfTime::reset ( )
virtual

Resets the task by removing its data. NOTE : Does not deallocate its data structure

Implements scl::CTaskBase.

virtual sBool scl::CTaskBase::setActivated ( sBool  arg_activate)
inlinevirtualinherited

Activated = All dynamic parameters and data structures are up to date and task is actively contributing to a controller.

Set to true/false during runtime to activate/deactivate task.

Returns : success/failure

bool scl::CTaskOpPosPIDA1OrderInfTime::setGoalAcc ( const Eigen::VectorXd &  arg_goal)
virtual

Sets the current goal acceleration

Reimplemented from scl::CTaskBase.

bool scl::CTaskOpPosPIDA1OrderInfTime::setGoalPos ( const Eigen::VectorXd &  arg_goal)
virtual

Sets the current goal position

Reimplemented from scl::CTaskBase.

bool scl::CTaskOpPosPIDA1OrderInfTime::setGoalVel ( const Eigen::VectorXd &  arg_goal)
virtual

Sets the current goal velocity

Reimplemented from scl::CTaskBase.

Member Data Documentation

STaskOpPosPIDA1OrderInfTime* scl::CTaskOpPosPIDA1OrderInfTime::data_
protected

The actual data structure for this computational object

CDynamicsBase* scl::CTaskBase::dynamics_
protectedinherited

A Dynamics model required to compute the task's dynamics

sBool scl::CTaskBase::has_been_init_
protectedinherited

Initialized = All static parameters are set and data structures are up to date.

Set to true in init()

sBool scl::CTaskOpPosPIDA1OrderInfTime::lambda_inv_singular_
protected

True when the lambda_inv matrix turns singular.

Eigen::ColPivHouseholderQR<Eigen::Matrix3d> scl::CTaskOpPosPIDA1OrderInfTime::qr_
protected

For inverting the lambda matrix (when it gets singular)

Eigen::JacobiSVD<Eigen::Matrix3d > scl::CTaskOpPosPIDA1OrderInfTime::svd_
protected

For inverting the operational space inertia matrix near singularities. 3x3 for operational point tasks.

Eigen::VectorXd scl::CTaskOpPosPIDA1OrderInfTime::tmp1
protected

Temporary variables

The documentation for this class was generated from the following files:
