taoNodeRoot Class Reference
Dynamics

root node class for articulated body dynamicsThis implements taoDNode for root node of a articulated body tree structure. More...

#include <taoNode.h>

Inheritance diagram for taoNodeRoot:
Inheritance graph
[legend]

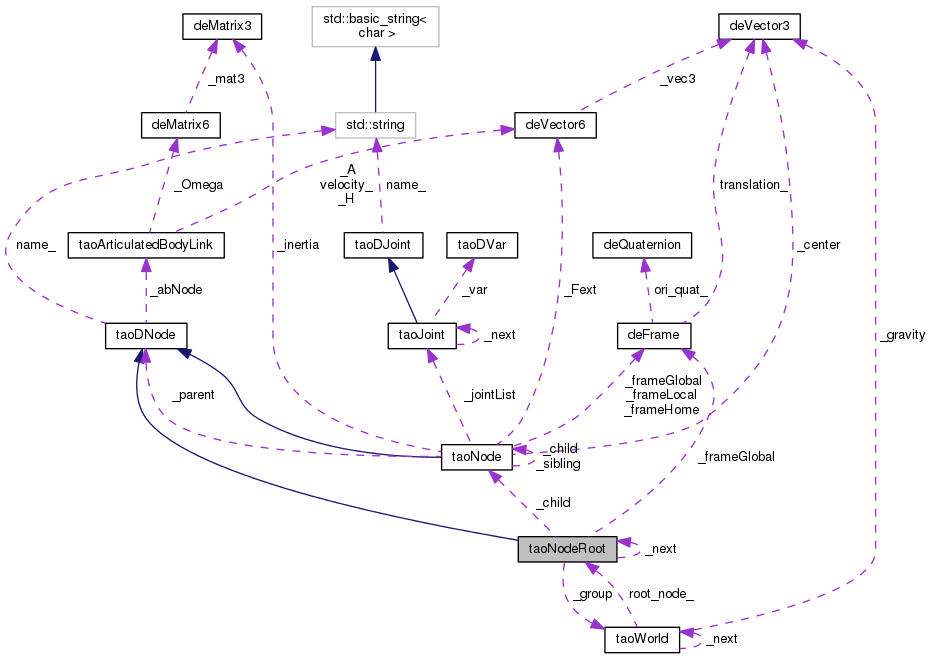

Collaboration diagram for taoNodeRoot:
Collaboration graph
[legend]

Public Member Functions

 taoNodeRoot (deFrame const &global)

virtual void sync (deFrame *local)

virtual taoJoint * getJointList ()

virtual taoJoint const * getJointList () const

virtual deVector6 * velocity ()

virtual deVector6 * acceleration ()

virtual void getFrameGraphics (deFrame *Tog)
 global frame for graphics display More...

virtual deFrame * frameHome ()

virtual deFrame * frameLocal ()

virtual deFrame * frameGlobal ()
 global frame for the dynamics computation More...

virtual deFrame const * frameGlobal () const

virtual deFloat * mass ()

virtual deVector3 * center ()

virtual deVector3 const * center () const

virtual deMatrix3 * inertia ()

virtual deVector6 * force ()

virtual void zeroForce ()

virtual void addForce (const deVector6 *f)

virtual void updateFrame ()

virtual void integrate (deFloat dt)

virtual taoDNode * getDParent ()

virtual taoDNode const * getDParent () const

virtual void setDChild (taoDNode *n)

virtual taoDNode * getDChild ()

virtual taoDNode const * getDChild () const

virtual taoDNode * getDSibling ()

virtual taoDNode const * getDSibling () const

void setNext (taoNodeRoot *r)

taoNodeRoot * getNext ()

void setGroup (taoWorld *g)

taoWorld * getGroup ()

void setController (taoControl *c)

taoControl * getController ()

virtual void sync ()

virtual deInt isRoot ()
 indicates if this node is root More...

virtual deInt isParentRoot ()
 indicates if parent of this node is root More...

virtual taoArticulatedBodyLink * getABNode ()
 gets _abNode More...

virtual void setABNode (taoArticulatedBodyLink *node)
 sets _abNode More...

virtual deInt getPropagate ()
 indicates if dynamics of node should be included for control More...

virtual void setPropagate (deInt p)

virtual void setID (const deInt id)

virtual deInt getID () const

virtual void setIsFixed (const deInt f)

virtual deInt getIsFixed ()

virtual deFloat getCOR ()

virtual deFloat getCOF_grip ()

virtual deFloat getCOF_viscous ()

virtual deFloat getCOF_static ()

virtual deFloat getCOF_dynamic ()

virtual void setCOR (deFloat c)
 coefficient of restitution More...


Private Member Functions

void _DeleteNodeTree (taoDNode *r)

void _SyncNodeTree (taoDNode *r)


Private Attributes

deFloat _zero

deFrame _frameGlobal

taoWorld * _group

taoControl * _controller

taoNode * _child

taoNodeRoot * _next


Coefficients of friction

where v is velocity, a is acceleration, y is impulse, and f is force at the contact point.

Note
: (*)_n and (*)_t indicate the normal and tangential components of (*) respectively.
virtual void force (const deVector3 *Pie, const deVector3 *Fie)
 computes new force given force More...

virtual void setCOF_grip (deFloat c)
 cofg : coefficient of grip friction when v != 0 and y != 0 : f_g = - sign(v_t) * cofg * y_n More...

virtual void setCOF_viscous (deFloat c)
 cofv : coefficient of viscous friction when v != 0 : f_v = - v_t * cofv More...

virtual void setCOF_static (deFloat c)
 cofs : coefficient of static friction when v == 0 and a != 0 : f_s = - sign(a_t) * cofs * f_n More...

virtual void setCOF_dynamic (deFloat c)
 cofd : coefficient of dynamic friction when v != 0 : f_d = - sign(v_t) * cofd * f_n More...

virtual deFloat effectiveMass (const deVector3 *Pie, const deVector3 *Ui)

virtual void linearVelocity (deVector3 *Vie, const deVector3 *Pie)

virtual void linearAcceleration (deVector3 *Aie, const deVector3 *Pie)

virtual void impulse (const deVector3 *Pie, const deVector3 *Yie)
 computes new velocity given impulse More...

virtual void impulseDist (const deVector3 *Pie, const deVector3 *Yie)
 computes new position given pseudo impulse More...

virtual deInt impact1 (const deVector3 *Pie, const deVector3 *Ui, const deFloat cor2, const deFloat cofg2)
 computes new velocity and force given pos, vel, acc More...

virtual deInt impact2 (taoDNode *ni, const deVector3 *Pie, const deVector3 *Ui, taoDNode *nj, const deVector3 *Pje, const deVector3 *Uj)
 This method computes impulse/force and changes velocity/friction between two colliding nodes, ni and nj. More...

virtual deInt penetration1 (const deVector3 *Pie, const deVector3 *Ui, const deVector3 *pdist, const deFloat dt)
 This method computes impulse and changes position/orientation using impulseDist(). More...

std::string name_


Detailed Description

root node class for articulated body dynamics

This implements taoDNode for root node of a articulated body tree structure.

See Also
taoCNode, taoDNode, taoDynamics, Control

Member Function Documentation

virtual deVector3* taoNodeRoot::center ( )
inlinevirtual
Returns
center of gravity in local frame

Implements taoDNode.

virtual deVector6* taoNodeRoot::force ( )
inlinevirtual
Return values
fextaccumulate all external forces

Implements taoDNode.

virtual void taoDNode::force ( const deVector3 *  Pie,
const deVector3 *  Fie
)
inlinevirtualinherited

computes new force given force

This method replaces the accumulated force with the given force.

Remarks
replaces the internal force with a new force
Precondition
A, F
Postcondition
F
  • Pie - contact point expressed in local frame.
  • Fie - force at the contact point expressed in local frame.
    Note
    this method replaces the internal force in the node.

Reimplemented in taoNode.

virtual deFrame* taoNodeRoot::frameGlobal ( )
inlinevirtual

global frame for the dynamics computation

Note
for taoNodeRB, this is the center of mass frame.
for taoNode, this is the same frame getFrameGraphics()

Implements taoDNode.

virtual deFrame* taoNodeRoot::frameHome ( )
inlinevirtual
Returns
home frame

Implements taoDNode.

virtual deFrame* taoNodeRoot::frameLocal ( )
inlinevirtual
Returns
local frame

Implements taoDNode.

virtual taoArticulatedBodyLink* taoDNode::getABNode ( )
inlinevirtualinherited

gets _abNode

virtual taoDNode* taoNodeRoot::getDChild ( )
inlinevirtual
Returns
first child node

Implements taoDNode.

virtual taoDNode* taoNodeRoot::getDParent ( )
inlinevirtual
Returns
parent node

Implements taoDNode.

virtual taoDNode* taoNodeRoot::getDSibling ( )
inlinevirtual
Returns
next sibling node

Implements taoDNode.

virtual void taoNodeRoot::getFrameGraphics ( deFrame *  Fg)
inlinevirtual

global frame for graphics display

Note
for taoNodeRB, this is the graphics origin frame without the offset.
for taoNodeRB, setFrameGraphics() should be used to set this frame.
for taoNode, this is the same frame as frameGlobal()
Return values
Fgis filled with the frame info for graphics sync.

Implements taoDNode.

virtual deInt taoDNode::getPropagate ( )
inlinevirtualinherited

indicates if dynamics of node should be included for control

Return values
1to propagate dynamics of node for control
0not to propagate dynamics of node for control
deInt taoDNode::impact1 ( const deVector3 *  Pie,
const deVector3 *  Ui,
const deFloat  cor2,
const deFloat  cofg2
)
virtualinherited

computes new velocity and force given pos, vel, acc

Remarks
do not use ddQ after this call, replaces the internal force to the new force
Precondition
T, Q, V, dQ, A
Postcondition
V, dQ, F
  • Pie - contact point expressed in local frame.
  • Ui - unit contact direction vector expressed in local frame (outward normal vector)
  • cor2 - coefficient of restitution of the other collision node.
  • cof2 - coefficient of grip friction of the other collision node.
    Note
    this method is assuming a node is colliding with a non-moving node.
deInt taoDNode::impact2 ( taoDNode *  ni,
const deVector3 *  Pie,
const deVector3 *  Ui,
taoDNode *  nj,
const deVector3 *  Pje,
const deVector3 *  Uj
)
virtualinherited

This method computes impulse/force and changes velocity/friction between two colliding nodes, ni and nj.

  • Pie - contact point expressed in frame i : Pie = ^iP_e - ^iP_i
  • Pje - contact point expressed in frame j : Pje = ^jP_e - ^jP_j
  • Ui - unit contact direction vector expressed in frame i : Ui = (^iP_j - ^iP_i)/|^iP_j - ^iP_i|
  • Uj - Ui expressed in frame j
    Note
    this method should be used for two moving nodes.
    Edited 2013-08-21 : Samir Menon smeno.nosp@m.n@st.nosp@m.anfor.nosp@m.d.ed.nosp@m.u
virtual void taoDNode::impulse ( const deVector3 *  Pie,
const deVector3 *  Yie
)
inlinevirtualinherited

computes new velocity given impulse

This method changes velocity instantaneously by applying the given impulse.

Remarks
do not use ddQ after this call
Precondition
T, Q, V, dQ, Y
Postcondition
V, dQ
  • Pie - contact point expressed in local frame.
  • Yie - impulse at the contact point expressed in local frame.

Reimplemented in taoNode.

virtual void taoDNode::impulseDist ( const deVector3 *  Pie,
const deVector3 *  Yie
)
inlinevirtualinherited

computes new position given pseudo impulse

This method changes position and orientation instantaneously by applying the given pseudo impulse.

  • Pie - contact point expressed in local frame.
  • Yie - pseudo impulse at the contact point expressed in local frame.

Reimplemented in taoNode.

virtual deMatrix3* taoNodeRoot::inertia ( )
inlinevirtual
Returns
inertia tensor at the origin of local frame

Implements taoDNode.

virtual deInt taoDNode::isParentRoot ( )
inlinevirtualinherited

indicates if parent of this node is root

Return values
1parent this node is root
0parent this node in not root
virtual deInt taoDNode::isRoot ( )
inlinevirtualinherited

indicates if this node is root

Return values
1this node is root
0this node in not root
virtual deFloat* taoNodeRoot::mass ( )
inlinevirtual
Returns
global frame
mass

Implements taoDNode.

deInt taoDNode::penetration1 ( const deVector3 *  Pie,
const deVector3 *  Ui,
const deVector3 *  pdist,
const deFloat  dt
)
virtualinherited

This method computes impulse and changes position/orientation using impulseDist().

  • Pie - contact point expressed in local frame.
  • Ui - unit contact direction vector expressed in local frame (outward normal vector).
  • pdist - penetration distance vector : pdist = P_o - P_i
  • dt - integration time step.
    Note
    this method is assuming a node is colliding with a non-moving node.
virtual void taoDNode::setABNode ( taoArticulatedBodyLink *  node)
inlinevirtualinherited

sets _abNode

virtual void taoDNode::setCOF_dynamic ( deFloat  c)
inlinevirtualinherited

cofd : coefficient of dynamic friction when v != 0 : f_d = - sign(v_t) * cofd * f_n

virtual void taoDNode::setCOF_grip ( deFloat  c)
inlinevirtualinherited

cofg : coefficient of grip friction when v != 0 and y != 0 : f_g = - sign(v_t) * cofg * y_n

virtual void taoDNode::setCOF_static ( deFloat  c)
inlinevirtualinherited

cofs : coefficient of static friction when v == 0 and a != 0 : f_s = - sign(a_t) * cofs * f_n

virtual void taoDNode::setCOF_viscous ( deFloat  c)
inlinevirtualinherited

cofv : coefficient of viscous friction when v != 0 : f_v = - v_t * cofv

virtual void taoDNode::setCOR ( deFloat  c)
inlinevirtualinherited

coefficient of restitution

void taoNodeRoot::sync ( )
virtual
Remarks
node->home = node->local; joint var = zero;
The documentation for this class was generated from the following files:
