Lecture 5/20: Linked Lists 2
May 20, 2020
đź“‚Associated files
More on Linked Lists
CS 106B: Programming Abstractions
Spring 2020, Stanford University Computer Science Department
Lecturers: Chris Gregg and Julie Zelenski
(linked wrists)
Slide 2
Announcements
- Section leaders are working on releasing assessment grades and feedback. We are aiming to get all feedback released by the end of the day today.
- All grades will be calculated and reported only as Pass / No Pass.
- If you scored a No Pass on either one of the two parts, you should expect to get an email from me in the next day or two to check-in about how the assessment went from your perspective and to schedule a time to revist the content and have a make-up assessment with one of Chris, Julie, or Nick next week.
- If you have any concerns about your performance on the assessment or the feedback provided by your section, please feel free to reach out to Chris, Julie, or myself and we would be happy to chat with you further.
- Assignment 5 is due on Friday! The YEAH slides and recording were both posted last night if you're looking for help on how to get started.
- Memorial Day Holiday
- No lecture next Monday, May 25
- No LaIR on Sunday, May 24 nor Monday morning on the 25th
- Extra Wednesday morning shift added on Wednesday, May 27
- Chris will still be holding OHs from 11am-1pm on Monday, May 25
Slide 3
Today's Topics
- How to build a stack from a linked list
- How to build a queue from a linked list
- Building a full
LinkedIntList
class
Slide 4
Stack
- Let's assume we have the following stack already, with 8 at the top, and 9 below 8. We then want to
push(7)
onto the stack: - Here is our goal:
- Our first attempt at
push(7)
:Node* temp = new Node; temp->data = 7;
- If we try to rewire by changing
head
first…head = temp;
- In other words: a linked list's elements must be pointed to, because we need to keep track of them. In our attempt above, we've lost access to the 8, becuase the only thing pointing at the 8 was
head
. If we reassignhead
to point to another object (the 7 in this case), we've broken the chain and lost 8. This is a common bug! - Let's try again:
- Here is our goal:
- Our next attempt at
push(7)
:Node* temp = new Node; temp->data = 7;
- Now we rewire 7's
next
pointer first:temp->next = head;
- You might be thinking, wait – why didn't the arrow go from the 7 to the head? – this is a common misconception of what is happening!
- Remember,
head
is not aNode
.head
is a pointer to aNode
. Notice thathead
does not have anext
– it's not an object, just a pointer. - The statement
temp->next = head;
says, "give 7's next pointer the same data as head", which is what we want to do.
- Remember,
- Now, we are able to reassign
head
to point to the 7, and we will have a correct linked list with 7 pushed onto the top: - Our
temp
pointer actually disappears when thepush
operation is complete (it goes out of scope), so we are left with the following:
Slide 5
Stack pop()
- To pop a data from our stack, we start like this:
int toReturn = head->data;
- What if we tried this to reassign
head
?head = head->next;
- This is a bug! Our linked list is fine, but we have a memory leak! We have left the 7 in memory and not returned it to the operating system with
delete
. - Instead, we need to do this:
Node* temp = head;
- Now we can reassign
head
:head = head->next;
- Because we still have access to the 7, we can return the memory to the operating system:
delete temp;
- Finally, we return the data, and
temp
goes out of scope:return toReturn;
Slide 6
Stack Code
- Header,
intStack.h
:
#pragma once
class IntStack {
public:
IntStack(); // constructor
~IntStack();
bool isEmpty();
void push(int value);
int top();
int pop();
private:
struct Node {
int data;
Node* next;
};
Node* head;
};
- Class code,
intStack.cpp
#include "intStack.h"
IntStack::IntStack()
{
head = nullptr;
}
IntStack::~IntStack()
{
while (head != nullptr) {
Node *temp = head;
head = head->next;
delete temp;
}
}
void IntStack::push(int value)
{
Node* node = new Node;
node->data = value;
node->next = head;
head = node;
}
int IntStack::pop()
{
if (isEmpty()) {
throw "Error! Trying to pop from empty stack!";
}
int toReturn = head->data;
Node* temp = head;
head = head->next;
delete temp;
return toReturn;
}
Slide 7
A Better Linked List Queue
- At the beginning of this topic, we discussed how to build a queue with a linked list. We had the back as the first element in the list, and the front as the second element. This led to O(1) behavior for enqueue, and O(n) behavior for dequeue. We can do better!
- If we hold a pointer to the front and to the back, and we make the front the first element in the list, and the back the last element in the list, we can successfully make a queue with O(1) behavior for both enqueue and dequeue.
- Here is the code, then we'll walk through some examples:
intQueue.h
#pragma once
class IntQueue {
public:
IntQueue(); // constructor
~IntQueue();
bool isEmpty();
void enqueue(int value);
int front();
int dequeue();
private:
struct Node {
int data;
Node* next;
};
Node* _front;
Node* _back;
};
intQueue.cpp
:
#include "intQueue.h"
IntQueue::IntQueue()
{
_front = nullptr;
_back = nullptr;
}
IntQueue::~IntQueue()
{
while (_front != nullptr) {
Node *temp = _front;
_front = _front->next;
delete temp;
}
}
void IntQueue::enqueue(int value)
{
Node* node = new Node;
node->data = value;
node->next = nullptr;
if (_back == nullptr) { // enqueue on empty queue
_front = node;
_back = node;
} else {
_back->next = node;
_back = node;
}
}
int IntQueue::dequeue()
{
if (isEmpty()) {
throw "Error! Trying to dequeue from empty queue!";
}
int toReturn = _front->data;
Node* temp = _front;
_front = _front->next;
if (_front == nullptr) {
_back = nullptr; // empty queue
}
delete temp;
return toReturn;
}
bool IntQueue::isEmpty()
{
return _front == nullptr;
}
int IntQueue::front()
{
return _front->data;
}
Slide 8
A LinkedIntList class
- Let's create a full
LinkedIntList
class- We should keep a private pointer to its front node
- We will write functions to add, insert, and remove from the list
- We need to properly traverse the list
LinkedIntList.h
:
// Represents a linked list of integers.
#pragma once
#include<ostream>
using namespace std;
struct ListNode {
int data;
ListNode* next;
ListNode(int value) { // constructor
data = value;
next = nullptr;
};
class LinkedIntList {
public:
LinkedIntList();
~LinkedIntList();
void addBack(int value);
void addFront(int value);
void clear();
int get(int index);
void insert(int index, int value);
bool isEmpty();
void remove(int index);
void set(int index, int value);
int size();
private:
ListNode* _front; // null if empty
};
- The
ListNode
definition is a bit different than what we've seen before.- It has a constructor which sets the value for us. We create a new
ListNode
using dynamic memory like this:ListNode* node = new ListNode(value);
- It has a constructor which sets the value for us. We create a new
- It looks like this in memory:
- Why are there two separate objects in the diagram above?
- The
ListNode* node
is a variable that is simply a pointer. - The value / next box is the memory that has been allocated for the
ListNode
object. node
points to the object in memory
- The
- The constructor for the
ListNode
class looks like this (pretty simple):_front = nullptr;
Slide 9
Adding to the front of a linked list
- This should look familiar, from the stack above:
void ListNode::addFront(int value) { ListNode* newNode = new ListNode(value); newNode->next = _front; _front = newNode; }
- If we are adding to the front of an empty list (ex.
list.addFront(42)
), this is what it looks like. We start with_front
pointing tonullptr
: - Next, we create a new
ListNode
and a pointer,newNode
that points to it: - We point the
next
of the new node to_front
(which is alsonullptr
), and then we point_front
to the new node. That's it! - When the function returns, we have a single node in our linked list:
- If we want to
list.addFront(84)
, we repeat the process from above, but now the new node gets added before the 42: - We first change
newNode
's next pointer to point to where_front
points to: - Then we change
_front
to point tonewNode
: - After the function ends, we have a two-node list:
Slide 10
Adding to the back of a linked list
- If we want to add to the back of a linked list, and we don't have an explicit
_back
pointer, we must traverse the entire list to get to the back. This requires a traversal idiom that is common for linked lists. Here is the code foraddBack
:void LinkedIntList::addBack(int value) { ListNode* newNode = new ListNode(value); if (_front == nullptr) { _front = newNode; } else { ListNode* curr = _front; while (curr->next != nullptr) { curr = curr->next; } // at this point, we're at the back curr->next = newNode; } }
- First, we create a new
ListNode
- If we are adding to the back of an empty list, this is a special case (handled by the
if
statement). - The interesting part is the traversal:
ListNode* curr = _front; while (curr->next != nullptr) { curr = curr->next; } // at this point, we're at the back curr->next = newNode;
- Let's look at this specifically with a three-node list from before:
- First, we create a
curr
pointer that points to the current node, and we setcurr
to point at the first node, via_front
: - Now, we start traversing the list in a while loop, checking if
curr->next != nullptr
.- We update
curr
at each iteration withcurr = curr->next
. This may seem like strange syntax, but it is just assigning pointer values. We keep iterating until we have reached the last node. In the first iteration:
- We update
- After the second iteration:
- Now, we are at the end of the list, and we can append our new node with
curr->next = n;

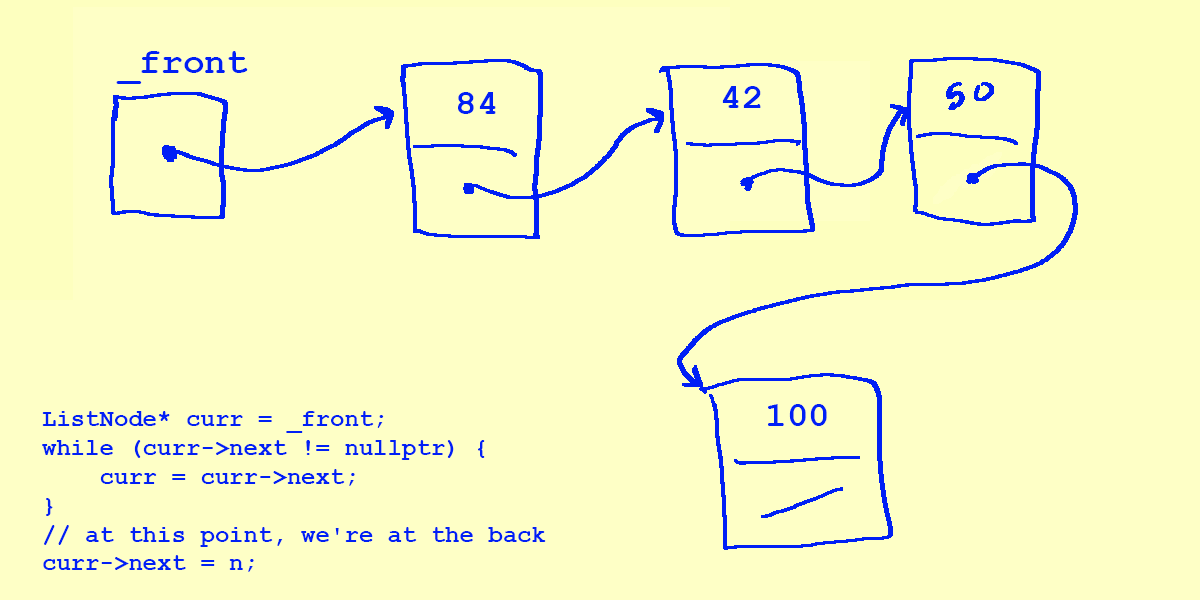

: - After the function ends, this is our list:
Slide 11
Removing at an index
- Sometimes, you have to traverse but stop before the node you want to do somthing with.
- For example, the
LinkedList::remove(int index)
function needs to insert at a particular index, which is before the node we actually want to remove - If we stopped on the index, we would be too late, and would not have access to the pointer we need to rewire . Here is the code:
void LinkedIntList::remove(int index) { // similar to insert, we need to find the node before // the one we want to remove // assumes that 0 <= index < size ListNode* temp; if (index == 0) { temp = _front; _front = _front->next; } else { ListNode* curr = _front; for (int i = 0; i < index - 1; i++) { temp = curr; curr = curr->next; } temp = curr->next; curr->next = curr->next->next; } delete temp; }
- Let's say we want to remove the node at index 2, or
list.remove(2)
. Initially: - After one iteration:
- This is where we stop, and start rewiring. First, we set a
temp
to the node we want to remove (because we want to calldelete
on it).temp = curr->next
: - Then, we point our current pointer's
next
to thenext
of thenext
!curr->next = curr->next->next
: - Finally, we call
delete
ontemp
to clean it up: - After the function returns, this is the list we have:
