Sierpinski


Recursion can produce incredible and beautiful images that have self-similar subparts. The designs are known as fractals. One of the most famous fractals is the Sierpinski triangle, named after the Polish mathematician Waclaw Sierpinski (1882–1969).

As with many self-similar patterns, it is defined recursively:

  • An order-0 Sierpinski triangle is a single filled triangle.
  • An order-n Sierpinski triangle, where n > 0, consists of three Sierpinski triangles of order n – 1, whose side lengths are half the size of the original side lengths, arranged so that they meet corner-to-corner.

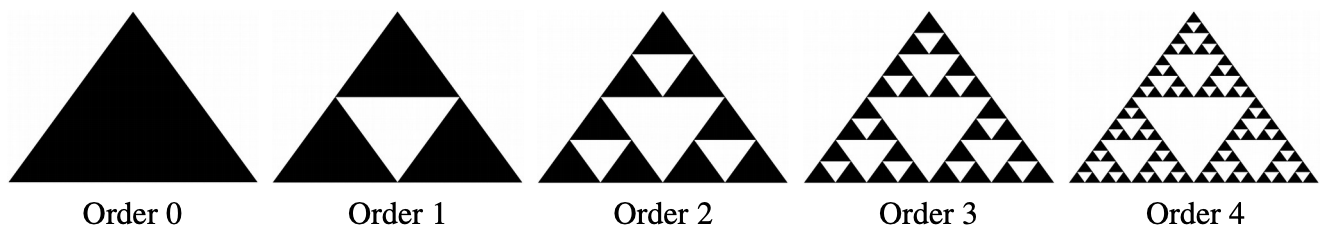

For example, here are Sierpinski triangles of the first few orders: sierpinski triangles of orders 0-4

Take a moment to confirm that the order-1 Sierpinski triangle indeed consists of three smaller copies of the order-0 Sierpinski triangle, that the order-2 Sierpinski triangle is formed from three smaller copies of the order-1 Sierpinski triangle, and so on.

Although the higher-order triangles might look like we’ve drawn one large black triangle with various upside-down white triangles on top, that’s actually not the case. Every triangle drawn is black; the white triangles are simply empty spaces between the black triangles. Your code should draw only the filled black triangles. The white parts are “negative space,” or regions where nothing is drawn.

You are to implement the function

int drawSierpinskiTriangle(GWindow& gw, GPoint one, GPoint two, GPoint three, int order)

which takes as input the three corner points of a triangle and the order. The function draws a Sierpinski triangle defined by those three corner points and of the specified order. The return value from drawSierpinskiTriangle is the total count of black triangles drawn. Although it is possible to directly calculate the number of triangles using a simple formula, we want you to instead apply a recursive approach of summing the counts from the recursive calls.

We provide the fillBlackTriangle helper function to fill a triangle defined by its three corner points:

void fillBlackTriangle(GWindow& gw, GPoint one, GPoint two, GPoint three)

Notes

  • Draw pictures! One key part is figuring out the location for each of the triangle corners, and that’s easier to do with a diagram in front of you.
  • The midpoint of each side of the large outer triangle becomes a corner of one of the smaller inner triangles. Given a line segment whose endpoints are {x1, y1} and {x2, y2}, its midpoint is at { (x1+x2)/2, (y1+y2)/2 }.
  • The three corner points of the triangle can be arbitrarily placed. They don’t necessarily form an equilateral triangle nor must the base be parallel to bottom of the window. The choice of which corner is identified as one versus two versus three is completely arbitrary.
  • A GPoint struct is used to specify an x,y coordinate within the graphics window. Here is the documentation for GPoint. There is also some sample code that manipulates GPoints in Monday's lecture on fractals.
  • The only drawing function you need is our provided fillBlackTriangle. You do not need to dig into any other drawing functionality in the Stanford libraries.

Testing graphics

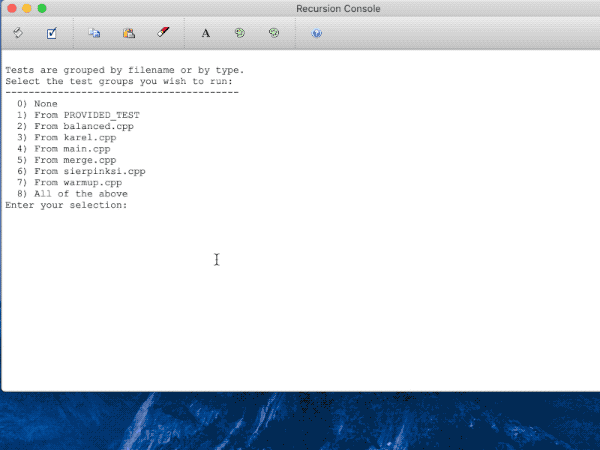

A function that produces graphical output, such as Sierpinski, doesn't lend itself to being unit-tested, so we've provided a simple GUI demo you can use to interactively test. The starter code for sierpinski.cpp contains a provided test that runs our GUI demo. Do not modify this provided test. Running this test will bring up a graphical window for interactively testing your fractal drawing. Watch this screencast movie to see a demonstration of the GUI operation:

Animating sierpinski

In the GUI, use the slider to change the order and drag the corners to change the triangle dimensions. It will be up to you to visually inspect the drawing for correctness and confirm that the count of triangles returned is as expected. When you are you done testing, close the graphics window to exit the GUI.

Extensions

The Sierpinski triangle is only one of many self-similar images; consider coding up another! We’d love to see what you create.

Some resources:
