Assignment 3: Stanford Shell

Due: Sun Feb 8 11:59 pm
Late submissions accepted until Tue Feb 10 11:59 pm

Assignment inspiration and handout components from Randal Bryant and Dave O'Hallaron of Carnegie Mellon. Command line parsing tools by Truman Cranor. Also based on assignments by David Mazières, John Ousterhout and Jerry Cain. Modifications by Nick Troccoli.

This assignment gives you a chance to implement a core tool that you've relied on all quarter - a fully-functional shell! This assignment leverages the shell code from lecture and extends it to support pipelines and I/O redirection. There's lots of neat code to write, and we hope you enjoy implementing such a core tool - this is how real shells work!

Learning Goals

The goal of this project is for you to get practice with the fork, execvp, waitpid and pipe system calls, as well as I/O redirection. This assignment will help you:

  • appreciate the complexity and functionality of a shell
  • further advance your multiprocessing skills using fork/waitpid/execvp to manage multiple processes running different executables
  • more fully understand pipes, pipelines, file redirection, file descriptors, pipe, open, and dup2.

Starter Code

To get started on the assignment, clone the starter project using the command

    git clone /afs/ir/class/cs111/repos/assign3/$USER assign3

This line creates a new folder called assign3 in your current working directory containing a copy of the starter code.

For this assignment, you'll only need to modify stsh.cc and custom_tests; your goal is to implement the runPipeline function that spawns child process(es) to execute the input that the user entered. However, you may need to reference other files for documentation or testing. Here are the relevant files for your work on the assignment:

  • stsh.cc and Makefile: the implementation file for your shell, and the Makefile for compiling it by running make
  • custom_tests: a file where you will add custom test cases for the assignment.
  • conduit.cc, sigsegv.cc, spin.cc, split.cc, fpe.cc, open_fds.py: short test programs with various behaviors you can use while testing your shell.
  • stsh-exception.h: defines STSHException, the exception type you should throw for various possible errors, such as those mentioned in the spec
  • stsh-parser/stsh-parse.h: defines the pipeline and command types to represent raw command line inputs
  • samples: a symbolic link to the shared directory for this assignment. It contains:
    • scripts: a folder containing various .txt script files that are test cases for testing your shell
    • stsh_soln: a provided sample stsh solution executable
    • inspect-fds.py: a provided utility program that can print information about your shell's currently open file descriptors

The best approach for this assignment is to break up the tasks into smaller milestones that you test thoroughly at each step. We recommend following the milestone order listed below; the milestones will build on each other (e.g. your implementation of general multi-process pipelines will also support 2 process pipelines), so you are encouraged to unify code (and decompose as needed) as you go.

FAQ

We also have an assignment FAQ page where we have compiled answers to frequently-asked questions, including about how to use debugging tools on this assignment, tips for common issues, and more. Make sure to check it out as you work!

Open assign3 FAQ

Assignment Overview Video

We've created a short video that provides an overview of the assignment. It's not required to watch to complete the assignment, but rather just provides a walkthrough of some of the information included in this spec, plus tips/hints/tricks for different parts. We hope you find it helpful! (You can also view the video on Canvas, in the same place as the lecture videos).

Shell Background

The main shell features you'll be implementing on this assignment are pipelines and I/O redirection. Here's more info about each.

Pipelines

You can create a pipeline of processes with the pipe (|) operator, which is useful for chaining smaller commands together to accomplish complex tasks. This example command prints how many files you have whose names contain "vector":

ls -l | grep vector | wc -l

The stdout of the first process is piped to the stdin of the second, and the stdout of the second process is piped to the stdin of the third. In other words, this lists all the files in the current directory with ls, but sends that output as input to grep, which searches its input for the word "vector", and sends that output as input to wc -l, which prints out the number of lines in the input it received.

I/O Redirection

You can save the output of a command to a file like this:

echo "hello, world!" > output.txt

You can also read input from a file instead of from the user. For instance, the following counts the number of lines in stsh.cc:

wc -l < stsh.cc

And you can redirect both input and output at the same time:

wc -l < stsh.cc > output.txt

This also works with pipelines - the one below searches for "void" in stsh.cc and saves the number of lines with matches into output.txt:

 grep void < stsh.cc | wc -l > output.txt

Other Features

The shell you will implement has many, but not all, of the features of the built-in myth shell. When in doubt, try running the sample solution (/samples/stsh_soln) to see the requirements for the assignment. In particular, some things your shell is not expected to support include:

  • running in the background with &
  • special shell commands like cd, jobs, fg, bg
  • interrupting a running command with ctl-c or ctl-z
  • running full-screen text editors like emacs or vim
  • redirecting in the middle of a pipeline (i.e. middle of 3 commands in a pipeline redirecting its I/O)

Testing and Debugging

This assignment heavily emphasizes testing. Sanity check provides some starting tests (and does not include all tests used in grading), and you'll need to add your own tests over the course of the assignment as you work. Make sure to develop incrementally; incremental development means implementing small pieces in isolation, thoroughly testing them, and then building on them only once you know they are correct. This ensures a working implementation at each step, and if you encounter a later bug, you can be confident it is a result of your most recent changes.

Good testing can help you uncover bugs that you can then track down and fix. As you work through the assignment, for each milestone 2-5 you should add at least 2 documented additional tests (a test is 1 line/command in your custom_tests file) of your own (total of at least 8 - meaning at least 8 new lines/commands in your custom_tests file) in the custom_tests file that show thoughtful effort to develop comprehensive test coverage. When you add a test, document your work by including comments in the custom_tests file that explain why you included each test and how the tests relate to one another. The tests supplied with the default SanityCheck are a start that you should build on, with the goal of finding and fixing any bugs before submitting, just like how a professional developer is responsible for vetting any code through comprehensive testing before adding it to a team repository. We strongly encourage you to write some tests before you write any code, and then add additional tests as you write code.

You can test your code in 3 ways: by running your shell manually, by feeding a script file to your shell, and by writing custom_test tests.

Running Manually

You can test your shell by hand by running it (./stsh), entering commands and inspecting its behavior, and quitting when you're done by entering "quit" or "exit" or by hitting ctl-d. We provide various small test programs that you can run from within your shell to test different behavior: conduit.cc, sigsegv.cc, fpe.cc, spin.cc, and split.cc. Open these files to learn more about what these programs do. We also provide a program open_fds.py that prints out its currently-open file descriptors. You can use it to test by including it in commands, like echo word1 word2 | cat | ./open_fds.py | cat.

Script Files

However, inputting test commands manually can become cumbersome. Another way to test is by putting test commands in a file, and sending that file as input to stsh. For instance, you could create a file input.txt that contains the following:

echo "hello, world!"
ls /usr/class/cs111/samples/assign3

Then you can run the following to redirect this file as stsh's standard input:

./stsh < input.txt

This will feed each line of the file one at a time into your shell program, just as if you had typed it yourself at the prompt. As a bonus, stsh is set up to output both the prompt line itself as well as the output from the shell running that line. In other words, the file above would result in the following output:

stsh> echo "hello, world!"
"hello, world!"
stsh> ls /usr/class/cs111/samples/assign3
inspect-fds.py  SANITY.ini  scripts  stsh_soln
stsh>

You can run in this way on the sample solution too (samples/stsh_soln), to see what the expected output is.

custom_tests

When writing custom tests you can specify commands that read from your own text file as above, or if you want to test just one line you can feed the input directly in the custom test command using a here-string (<<<), like this - make sure the line you wish to feed in is contained in double quotes "":

# great for longer test cases
stsh < myfile.txt
# good for testing a single line
stsh <<< "ls -a"

If you create your own script files used in your custom tests, make sure to submit them along with your assignment (by default, only the files in the original starter project are submitted). When you submit, the submit tool will prompt you to enter the names of any additional files you'd like to include - you only need to do this once per file, ever. You can also add an entire folder of files to your submission.

1. Review Starter Code

The starter project comes with code to handle parsing user input, and it passes the parsed input to your runPipeline function via the pipeline parameter. The starter code in stsh.cc currently prints out the pipeline passed in to runPipeline.

  1. Before you start writing code, familiarize yourself with the pipeline and command types, which are defined in stsh-parser/stsh-parse.h. Open that file to read more about these types and what information they contain.
  2. Next, try running stsh and entering various commands to see how they are stored in the pipeline.
  3. Familiarize yourself with the different provided test programs you can use to test your shell. Open files like sigsegv.cc, spin.cc, conduit.cc, fpe.cc, and others to see how to use them - you can include them in commands you use for testing. Note that some programs like conduit read input from STDIN; if you run them manually, they will expect input typed in the terminal, and you can indicate the end of the input by entering ctl-d.
  4. Lastly, try running the sample solution like this: ./samples/stsh_soln. When in doubt about how your shell should behave, try out the sample solution to see the intended functionality.

Before proceeding: review the questions below as a self-check - these questions touch on specific details that will be particularly helpful on later parts of the assignment, and solidifying them now will save you time later. These questions are not to be handed in or graded, and you're encouraged to freely discuss these with your peers and course staff to answer any questions you have before moving on!

  1. What is a pipeline? A command? How are the two related?
  2. How would the command grep "(2017)" < movies.csv | sort | head -10 > output.txt be represented as a pipeline? (Try running the starter code with this command to confirm!)
  3. How can you tell whether a pipeline variable has its input or output redirected?
  4. How could we run the conduit program such that if we enter abc, it would print 4 copies of each letter with a 1-second delay between processing each letter? (Try running conduit to confirm!)
  5. How could we run the sigsegv program such that it crashes with a segfault after 4 seconds? (Try running sigsegv to confirm!)
  6. What error message is printed by the sample solution if you enter an invalid command?

2. Single Commands

Implement runPipeline to get a pipeline of just one command (e.g. sleep 5) to run until it's finished. Use a single call to waitpid to stall stsh until the child process finishes. If the child process terminated because of a segmentation fault signal, the shell should print the message "Segmentation fault" with cerr, which is like cout but prints to STDERR (see man waitpid for how to check for a segfault - you can use WIFSIGNALED to check if it was signaled, and check if WTERMSIG reports the signal constant SIGSEGV).

This is just like the first-shell-soln.cc program from lecture, so check out that example to get you started. Click here to view.

With this implemented, you should be able to run single commands like ls, date, sleep, etc. with any number of command line arguments (e.g. ls -a -l, sleep 5), and the shell should only reprompt once the command finishes running (e.g. for sleep 3, the prompt should reappear after 3 seconds). You should also be able to run the sigsegv program and have it report there was a segmentation fault, but not for programs that crash in other ways (such as fpe).

Error checking: if execvp fails (e.g. if the command entered is not valid), throw an STSHException with an error message "XXX: Command not found". You can throw an exception like this:

throw STSHException(message);

Run the sample solution (samples/stsh_soln) to see an example error message. Throwing an exception in a child process terminates it.

Testing suggestions: sleep 3 should run for 3 seconds, and then the prompt should reappear after the full sleep. ./nonexistent should print an error message. After this milestone, you should pass sanity check tests #2 - #4. Make sure to test thoroughly before moving on, as milestones build on each other!

3. Two-Process Pipelines

Add support for pipelines consisting of two processes (i.e binary pipelines like cat stsh.cc | wc), and ensure that the standard output of the first is redirected to feed the standard input of the second. Consider how you can combine / unify code with the previous milestone. Your shell should continue to support single commands.

Each command should run in its own child process, and these child processes should run simultaneously. In other words, you shouldn't spawn one, wait for it to finish, and then spawn the second. You should spawn both and wait for both of them to finish. (Note that a command may internally wait for all its input to be received before doing anything, but that's up to the individual program. For instance, wc won't do anything until it's received all its input). The shell should only reprompt once everything in the pipeline has run to completion.

Here are some additional tips / requirements - these requirements also apply to the next milestone as well:

  • Make sure to close all unused file descriptors - use valgrind and open_fds.py to inspect open file descriptors. As a quick note, valgrind --track-fds=yes can report open file descriptors on exit, but it defaults to not checking for open file descriptors in execvp-ed programs. To also track child processes that call execvp, add an additional flag --trace-children=yes.
  • This should work even for processes that don't produce any output or read any input, e.g. a pipeline of just sleep calls, like sleep 3 | sleep 3
  • If one or more of the processes terminates due to a segmentation fault, print the message "Segmentation fault" only once for the entire pipeline.
  • If you throw an exception in a child process, you do not need to do any cleanup (e.g. close any file descriptors or pipes) before doing so.
  • For a pipeline with multiple commands that print to STDERR (e.g. ./invalid1 | ./invalid2), it is expected that its output ordering may change each time you run it, and therefore may not match the sample solution output. This varying ordering happens because STDERR is not rewired, and still prints to the terminal, so you will have multiple processes printing to the terminal at the same time, and could be interleaved / could print in any order. For this reason, do not include these in custom_tests, as sometimes they may not match the solution output even when behaving correctly.

TIP: use pipe2 instead of pipe: pipe2 is the same as pipe, but takes a second parameter where you can specify options. One is O_CLOEXEC, which will automatically close pipe FDs when the surrounding process calls execvp. In other words, if you make a pipe and call fork, if the child calls execvp, the child doesn't need to close the pipe FDs. The parent still does, however, but this removes the need for a few close calls so is more convenient. The lecture subprocess-soln.cc example has an alternate version of subprocess using pipe2 instead of pipe - check that out to see the close calls that are no longer necessary. Click here to view.

Testing suggestions: sleep 3 | sleep 3 should run for 3 seconds, not 6 - since both processes are running in parallel. echo 12345 | ./conduit --delay 1 should print the characters 1, 2, 3, 4, 5 with a one-second delay in between each. echo 123 456 789 | xargs factor 12 34 56 78 90 should print the prime factorization for the five two-digit numbers before the factorizations for the three three-digit numbers (xargs reads from STDIN and appends those as arguments to the specified command). After this milestone, you should pass sanity check test #5. Make sure to test thoroughly before moving on, as milestones build on each other!

4. Multi-Process Pipelines

Add support for arbitrarily-long pipeline chains (i.e. pipelines of >= 1 command). The standard output of each command should feed the standard input of the next. This is the most challenging milestone, so plan carefully, decompose, unify common code and test thoroughly! Consider how you can combine / unify code with the previous milestones. All the listed bulleted tips/requirements from the previous milestone (eg. closing file descriptors, printing "Segmentation fault" at most once) also apply to this milestone.

Like the previous milestone, each command should run in its own child process, and these child processes should run simultaneously. For example, if we run echo 12345 | ./conduit --delay 1 | ./conduit, we would create 3 processes, all of which run in parallel; echo's output would be fed as input to the first ./conduit, whose output would be fed as input to the second ./conduit. This will require some particularly clever work with pipe, since a pipeline of, say, 11 processes needs to create 10 independent pipes. This diagram may help visualize:

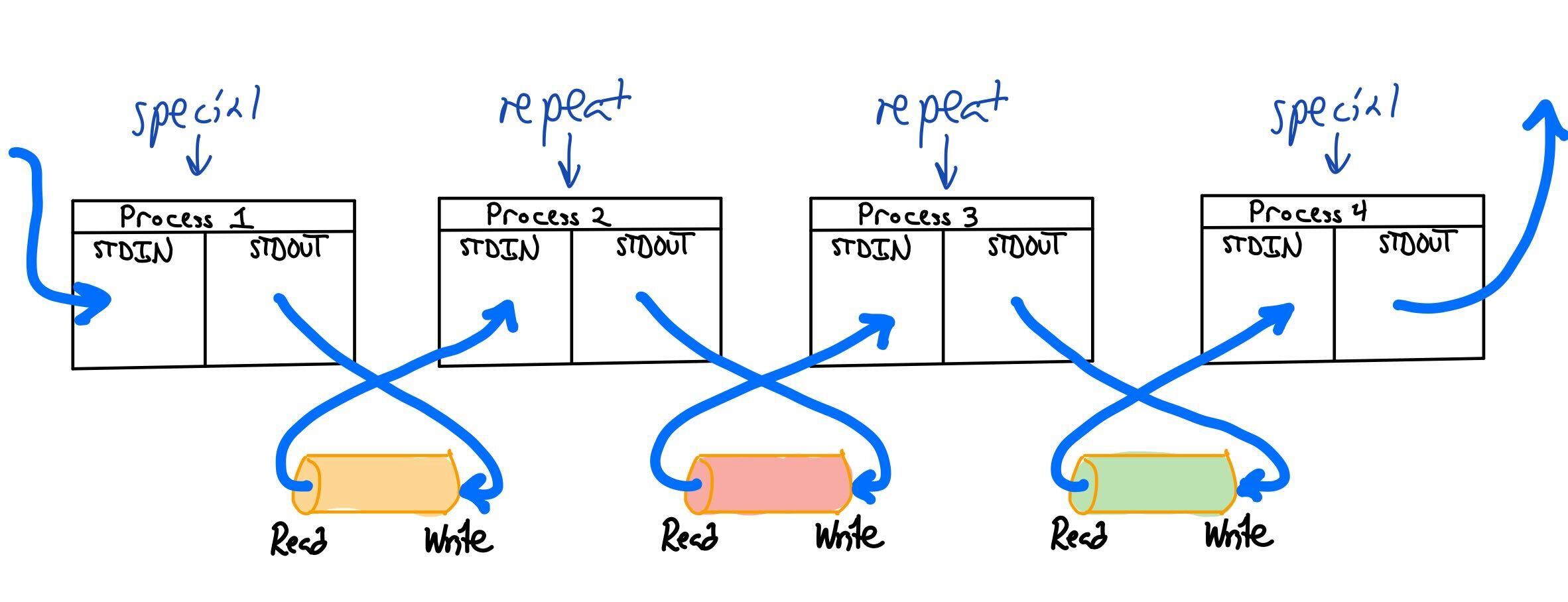

Diagram of a 4-process pipeline. The first process is a special case, where its STDIN comes from the terminal, and its STDOUT writes into the write end of the orange pipe. Process 2 is one of the ones that we can create in a loop, as it is one of the inner processes. It reads from the read end of the orange pipe, and writes to the write end of the red pipe. Process 3 is another of the ones that we can create in a loop, as it is one of the inner processes. It reads from the read end of the red pipe, and writes to the write end of the green pipe. Finally, process 4 is a special case, where its STDIN comes from the read end of the green pipe, and its STDOUT writes to the terminal. The pipes in this diagram are drawn where the read end is on the left and the write end is on the right, but process N-1 connects to the write end and process N connects to the read end, so the drawn lines from a process to the pipe are crossed - since process N-1's standard output links to the write end of the pipe, and process N's standard input links to the read end of the pipe.

Note that we are creating N-1 pipes and N processes. However, there are also differences in how the N processes are created; the first and last are unique cases that have only their STDOUT (for the first) and STDIN (for the last) redirected, while all the middle processes have both redirected.

Once you complete this, make sure your program works for pipelines of any length, and that your shell stalls until everything in the pipeline has run to completion. Here are some example commands to try:

  • echo 12345 | ./conduit --count 2 | ./conduit --count 3
  • echo 12345 | ./conduit --count 2 | ./conduit --count 3 | ./conduit --count 2 | wc

Testing suggestions: sleep 3 | sleep 3 | sleep 3 should run for 3 seconds, not 9 - since all processes are running in parallel. After this milestone, you should pass sanity check test #6.

5. I/O Redirection

Incorporate file redirection for the first and last commands in a pipeline via < and > (e.g. cat < /usr/include/stdio.h | wc > output.txt). Your shell need only support input redirection for the first command, and output redirection for the last command (though note that for pipelines of length 1, the first and last process of the pipeline are the same.).

For output redirection, if the file you're writing to doesn't exist, create it (O_CREAT), and if it does exist, truncate it (O_TRUNC). Use 0644 for permissions (read-write for owner, read for all others). When calling open, you need to pass a char * (C string) as the filename parameter; you can call .c_str() on a C++ string to get a C-string representation.

This should work even for processes that don't produce any output or read any input, e.g. for sleep 3 > output.txt the file output.txt would exist but would be empty.

Error checking: if open fails for either input or output redirection, throw an STSHException with an error message Could not open "FILENAME".. Run the sample solution (samples/stsh_soln) to see an example error message. If the input file is invalid, note that the leading command should not run because we are throwing an exception, but the remaining processes should still run. E.g. for sort < invalid.txt | wc, it should not run sort, but should run wc (with nothing fed to its STDIN).

Testing suggestions: Test with single commands and pipelines, for both input and output redirection (and both at the same time). Also test with files that don't exist. Here are some example commands that should work: echo aeiou > vowels.txt should write "aeiou" to "vowels.txt". cat vowels.txt | ./conduit --count 3 > output.txt should write "aaaeeeiiiooouuu" to "output.txt". cat < /usr/include/stdio.h > local.h should make a copy of /usr/include/stdio.h called local.h in the current directory. After this milestone, you should pass sanity check tests #7 (output redirection) and #8 (input redirection). Woohoo!

Submitting and Grading

Once you are finished working and have saved all your changes, submit by running the submit tool in the tools folder: ./tools/submit. We recommend you do a trial submit in advance of the deadline to allow time to work through any snags. You may submit as many times as you would like; we will grade the latest submission. Submitting a stable but unpolished/unfinished is like an insurance policy. If the unexpected happens and you miss the deadline to submit your final version, this previous submit will earn points. Without a submission, we cannot grade your work. You can confirm the timestamp of your latest submission in your course gradebook.

Your assignment will be graded using the tests we expose via sanitycheck plus additional unpublished tests. The breakdown below represents a tentative summary of the grading categories:

  • Simple Tests

    • Clean Build
    • Ensure that basic single-command processes work

  • Advanced Tests

    • Ensure that pipelines with two processes work well
    • Ensure that pipelines with three or more processes work well
    • Ensure redirection works for pipelines of just one process
    • Ensure redirection works for pipelines with two or more processes
    • Ensure required error checking is implemented
    • Additional stress tests

  • Custom Tests

    • Your custom_tests file should include at least 8 tests of your own (at least 2 per milestone, excluding milestone 1) that show thoughtful effort to develop comprehensive testing coverage. Please include comments that explain your choices. We will run your custom tests against your submission as well as review the cases to assess the strength of your testing efforts.

Style Code Review

Here are some tips for this assignment:

  • your implementation should be in C++ unless there's no way to avoid it. By that, we mean you should use C++ strings unless you interface with a system call that requires C strings, use cout instead of printf, and so forth.
  • unification of code; do your best to combine / unify code for each milestone; there are similarities in the tasks per milestone!

For more information about style guidelines to use for assignments, take a look at the Style Guide, linked to from the Assignments dropdown.
