Testing and the SimpleTest framework

Why testing?

Anybody that writes code for some purpose (whether as a researcher, a software engineer, or in any other profession) will get to the point where others are relying on their code. Bugs in software can be dangerous or even deadly. Additionally, users do not enjoy using software that is buggy and crashes and fixing bugs once the software is in production is very costly. Most importantly, good engineers take pride in building things that work well and are robust.

The key to writing working software is developing good tests. In this course we follow an approach called test-driven development. As you write code, you will also write companion tests. These tests are used to verify that the code you just finished writing works as intended.

This strategy is sometimes called "test-as-you-go". You work in small steps, being sure to test thoroughly, and only move on after you having confirmed the correctness and fixed all issues. The beauty of this approach is that each step is relatively straightforward and easy to debug. Imagine the opposite approach: you write hundreds of lines of code, the code does not work, and now you need to figure out which one of those hundreds of lines of code isn't working as expected! That is the sort of frustration that we want to help you all avoid as you continue to develop your skills as programmers.

SimpleTest

For CS106B, we provide a unit-test framework called SimpleTest that you will use to test your code. This framework was pioneered by our ace colleague Keith Schwarz. SimpleTest provides a simple, clean approach to writing and running test cases.

Here is an example of how you might see the SimpleTest framework used in the starter code of an assignment.

// reversed(str) returns copy of str with characters in reverse order.
string reversed(string s)
{
    string result;
    for (int i = s.length() - 1; i >= 0; i--) {
        result += s[i];
    }
    return result;
}

/* * * * * * Test Cases * * * * * */

PROVIDED_TEST("Demonstrate different SimpleTest use case") {
    EXPECT_EQUAL(reversed("but"), "tub");
    EXPECT_EQUAL(reversed("stanford"), "drofnats");
}

When we provide tests for you in the starter code, each test case is wrapped in the special macro PROVIDED_TEST. The string argument in parentheses describes the purpose of the test and the code block that follows (enclosed in curly braces) defines the actual test behavior.

When you add your own test cases, you will wrap your test code blocks in the STUDENT_TEST macro instead. The STUDENT_TEST functionality and structure is exactly the same as PROVIDED_TEST, it simply distinguishes the tests you've written yourself from those we provide for the benefit of your grader. You will see many examples of this in the following sections.

EXPECT_EQUAL

Within the code block, the test macro most commonly used is EXPECT_EQUAL which confirms the two arguments are equal. A typical use case for EXPECT_EQUAL is to take a value produced by your code, e.g. the return value from a call to one of your functions, and confirm that value matches to the expected outcome. For example, in the above code, EXPECT_EQUAL is used to compare the result of the call reversed("but") to the string "tub". If the two are indeed equal, the test passes. If they do not match, the test is reported as a failure.

For example, after adding your own tests (using the STUDENT_TEST identifier as previously mentioned) to the above file, it could look something like this:

// reversed(str) returns copy of str with characters in reverse order.
string reversed(string s)
{
    string result;
    for (int i = s.length() - 1; i >= 0; i--) {
        result += s[i];
    }
    return result;
}

/* * * * * * Test Cases * * * * * */

PROVIDED_TEST("Demonstrate different SimpleTest use case") {
    EXPECT_EQUAL(reversed("but"), "tub");
    EXPECT_EQUAL(reversed("stanford"), "drofnats");
}

STUDENT_TEST("test additional cases not covered by the provided tests") {
    EXPECT_EQUAL(reversed("racecar"), "racecar");
    EXPECT_EQUAL(reversed(""), "");
    EXPECT_EQUAL(reversed("123456789"), "987654321");
}

Important note: You should never modify the provided tests – these are the same tests that will be used for grading, so it is not in your best interest to modify them. If you want to test different scenarios, always add new tests using the STUDENT_TEST macro.

EXPECT

Another test macro that is regularly used is the EXPECT which confirms the truth of a single expression. If the expression evaluates to true, the test passes. If false, it reports a test failure. For example, if you added the isPalindrome function to the above program, you could add a test case that uses EXPECT to confirm the correct result from isPalidrome, as shown below.

// reversed(str) returns copy of str with characters in reverse order.
string reversed(string s) {
    string result;
    for (int i = s.length() - 1; i >= 0; i--) {
        result += s[i];
    }
    return result;
}

bool isPalindrome(string s) {
    return s == reversed(s);
}

/* * * * * * Test Cases * * * * * */

PROVIDED_TEST("Demonstrate different SimpleTest use case") {
    EXPECT_EQUAL(reversed("but"), "tub");
    EXPECT_EQUAL(reversed("stanford"), "drofnats");
}

STUDENT_TEST("test additional cases not covered by the provided tests") {
    EXPECT_EQUAL(reversed("racecar"), "racecar");
    EXPECT_EQUAL(reversed(""), "");
    EXPECT_EQUAL(reversed("123456789"), "987654321");
}

STUDENT_TEST("test my isPalindrome function") {
    EXPECT(isPalindrome("racecar"));
    EXPECT(!isPalindrome("stanford"));
}

When would you use EXPECT instead of EXPECT_EQUAL? EXPECT_EQUAL which is appropriate for any situation in which you have two values that can be compared for equality (two numbers, two strings, two Vectors, etc.). EXPECT allows you to express a wider variety of conditions beyond simple equality. For example, you could confirm the truth of a complex set of conditions by passing a compound expression such as EXPECT(x > y && y != z || y == 0);

EXPECT_ERROR

You pass an expression to EXPECT_ERROR and it evaluates the expression and observes whether it calls the error() function to report an error. If an error is raised, this causes the test to pass. If not, it causes the test to fail and reports that the expression failed to trigger an error. EXPECT_ERROR is used in the very specific situation of confirming expected handling of errors within your code.

EXPECT_NO_ERROR

This macro is exactly the opposite of EXPECT_ERROR. With this macro, you pass it an expression, and if the expression successfully runs to completion without running an error, then the test passes. However, if the expressions ends up calling the error() function somewhere along the way, then an error is raised and the rest will fail and report the error that was raised. EXPECT_NO_ERROR is used in specific situations where you want to make sure that functions behave properly on normal/correct input.

REPORT_FAILURE

The REPORT_FAILURE macro allows you to customize the error message used to report a test failure rather than produce the default test failure message. It may be useful in situations where the default message does not provide enough information for you to be able to diagnose the failure.

TIME_OPERATION

We recently added support for simple execution timing to SimpleTest.

To time an operation in a test case, wrap the expression inside the macro TIME_OPERATION(size, expression), as shown below:

STUDENT_TEST("Time operation vector sort on tiny input")
{
    Vector<int> v = {3, 7, 2, 45, 2, 6, 3, 56, 12};
    TIME_OPERATION(v.size(), v.sort());
}

The first argument to TIME_OPERATION is the input size; this is used to label each timing result to distinguish from other results. The second argument is the expression to evaluate. TIME_OPERATION will start a new timer, evaluate the expression, stop the timer, and report the elapsed time.

You can have more than one use of TIME_OPERATION within a test case. Each operation is individually evaluated and timed. Below demonstrates use of TIME_OPERATION in a loop to time sorting successively larger vectors.

STUDENT_TEST("Time operation vector sort over a range of input sizes")
{
    for (int size = 50000; size < 1000000; size *= 2) {
        Vector<int> v;
        for (int i = 0; i < size; i++) {
            v.add(randomInteger(1, 1000)); // fill vector with random values
        }
        TIME_OPERATION(v.size(), v.sort());
    }
}

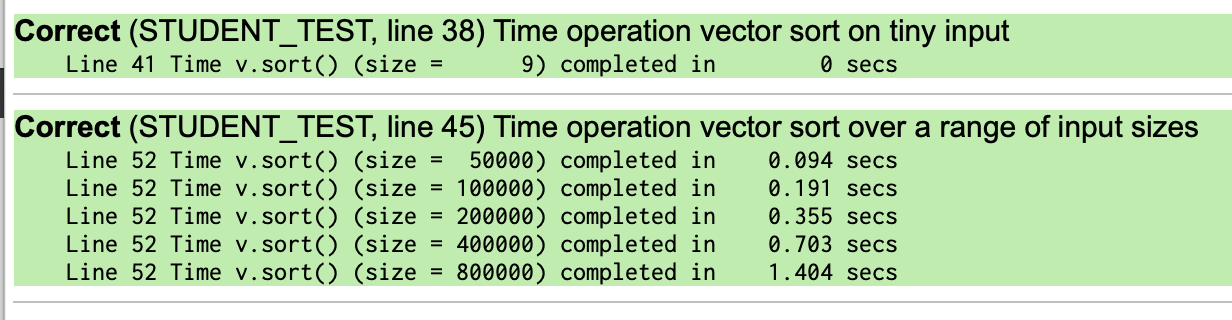

Here are the test results for running the test cases above:

screenshot of test results from time operation

Using TIME_OPERATION over a range of sizes lets you see how the time required changes with respect to input size, i.e. predicts the algorithm's Big O. Handy!

By default, a test case that uses TIME_OPERATION will be reported as Correct as long as the expression being evaluated does not raise an error or crash. If you want to verify the actual correctness of the result as well as time it, you can mix in regular use of EXPECT_EQUAL and EXPECT into the test case as shown below:

STUDENT_TEST("Time operation vector sort on tiny input and verify is sorted")
{
    Vector<int> v = {3, 7, 2, 45, 2, 6, 3, 56, 12};
    TIME_OPERATION(v.size(), v.sort());
    EXPECT(checkIsSorted(v));
}

runSimpleTests

The main program of every project will be configured so that you have three choices every time you want to run your program: run all the tests, run a selected portion of the tests, or run no tests at all and proceed with normal execution of the program. The way that you can control this is demonstrated below:

int main()
{
    if (runSimpleTests( <test choice argument> ))
        return 0;
    ...
}

The argument to runSimpleTests is either:

  • NO_TESTS (skip testing altogether, just run normal main function)
  • ALL_TESTS (run all tests for all files)
  • SELECTED_TESTS (provide menu for user to select which file to run tests)

Debugging a failing test

The goal you are shooting for is for all of your tests to pass. However, if you get a failed test result, don't look at this as sad times, this test result is news you can use. The failing test case indicates that you have identified a specific operation that behaves counter to your expectations. This means you know where to focus your attention.

Dig into that test case under the debugger to analyze how it has gone astray. Set a breakpoint inside the text code block, and choose to stop at the line that is at or before the failing EXPECT/EXPECT_EQUAL statement.

screenshot of setting breakpoint in debugger on EXPECT statement

Now run the tests under the debugger. When the program stops at the breakpoint, single step through the code while watching in the variables pane to observe the changing state of your variables, using a technique just like you did in the Assignment 0 debugging tutorial.

After you understand the failure and apply a fix, run that test again. When you see the test now pass, you can celebrate having squashed that bug!

Test-driven development

We highly recommend employing test-driven development when working on your assignments. To do so, follow these steps:

  • identify a small, concrete task (bug to fix, feature to add, desired change in behavior)
  • construct tests for the desired outcome, add them to the file in which you're currently working, and verify the current code fails these tests
  • modify your code, using effective debugging strategies, to complete the task you identified
  • re-run your newly added tests and verify they now succeed
  • test the rest of the system (by running all tests) to verify you didn't inadvertently break something else

You change only a small amount of code at once and validate your results with carefully constructed tests before and after. This keeps your development process moving forward while ensuring you have a functional program at each step!

Test cases and grading

The SimpleTest framework will be supplied with each assignment, and there will be some initial test cases provided in the starter project, but you will also be expected to add your own tests.

You will submit your tests along with the code, and the grader's review will consider the quality of your tests. We will also provide comments on your tests to help you improve your testing approach. Please incorporate our feedback into future assignments; it will improve your grade and, more importantly, your effectiveness as a programmer. We guarantee future employers will appreciate your ability to write good tests and well-tested code!

Here are some things we look for in good tests.

  • Are the tests comprehensive? Is all the functionality tested?

  • Where possible, are the tests self-contained and independent?

  • Did you anticipate potential problems, tricky cases, on boundary conditions?

  • Did you develop the tests in a good order? Did you test basic functionality before more advanced functionality? Did you take small, carefully chosen steps?

Common questions

Should each EXPECT/EXPECT_EQUAL be in a STUDENT_TEST code block of its own or can I list several within one code block?

For tests that are closely related, it may be convenient to group them together in the same code block under one test name. The tests will operate as one combined group and show up in the report as one aggregate success (if all pass) or one failure (if at least one fails).

However, there are advantages to separating each individual test case into its own code block. You will be able to choose a clear, specific name for this block. The separation isolates each test so you can easily identify exactly which cases are passing and which are failing. For example if you have

STUDENT_TEST("lots of tests all together"){
    EXPECT(... test 1 ...)
    EXPECT(... test 2 ...)
    EXPECT(... test 3 ...)
}

then if test 2 fails, test 3 will never run and you won't be able to see the output – you won't know if test 3 passed or failed. On the other hand, if you structure your tests like this

STUDENT_TEST("test1"){
    EXPECT(... test 1 ...)
}

STUDENT_TEST("test 2"){
    EXPECT(... test 2 ...)
}

STUDENT_TEST("test 3"){
    EXPECT(... test 3 ...)
}

then all the tests will run individually, and even if test 2 fails, you will still get information about test 3. Having this sort of isolated behavior might make debugging any problems you encounter a little bit easier!

What happens if running a bogus or malformed test case?

When testing your code, you should construct each test case so that a correct program will pass (receive a "CORRECT") for each case. A "bogus" test case is one that has been designed to "fail" given a correct program. If a test case is bogus, it is usually asking the wrong question about a problem.

For example, suppose you wrote a function to check if a stoplight is green. But in order to check that it works, you write a test case that you want to deliberately fail in order to show that your function correctly returns false when given "red":

STUDENT_TEST("check if isStoplightGreen() works") {
    stoplightColor = "red";
    EXPECT(isStoplightGreen(stoplightColor));
}

If your isStoplightGreen() function returns true only when passed "green," a correctly written program will always fail this test case. Instead, you would want to ask the question, "Does the function work when passed green?" or "Does the function return false when passed red?" Either of the tests below would be better designs to do this.

STUDENT_TEST("check if isStoplightGreen() works for green lights") {
    stoplightColor = "green";
    EXPECT(isStoplightGreen(stoplightColor));
}

STUDENT_TEST("check if isStoplightGreen() returns false when given red") {
    stoplightColor = "red";
    EXPECT(!isStoplightGreen(stoplightColor));
}

Both of these tests will pass for correctly written code. In short, make sure to design tests that pass rather than fail to demonstrate that your code is working.
